Alpha ESS SMILE5 - Page 57

Electrical Connection
55
6.4.4.3 ACR10R Meter (if applicable)
6.4.4.3.1 DC-Coupled System

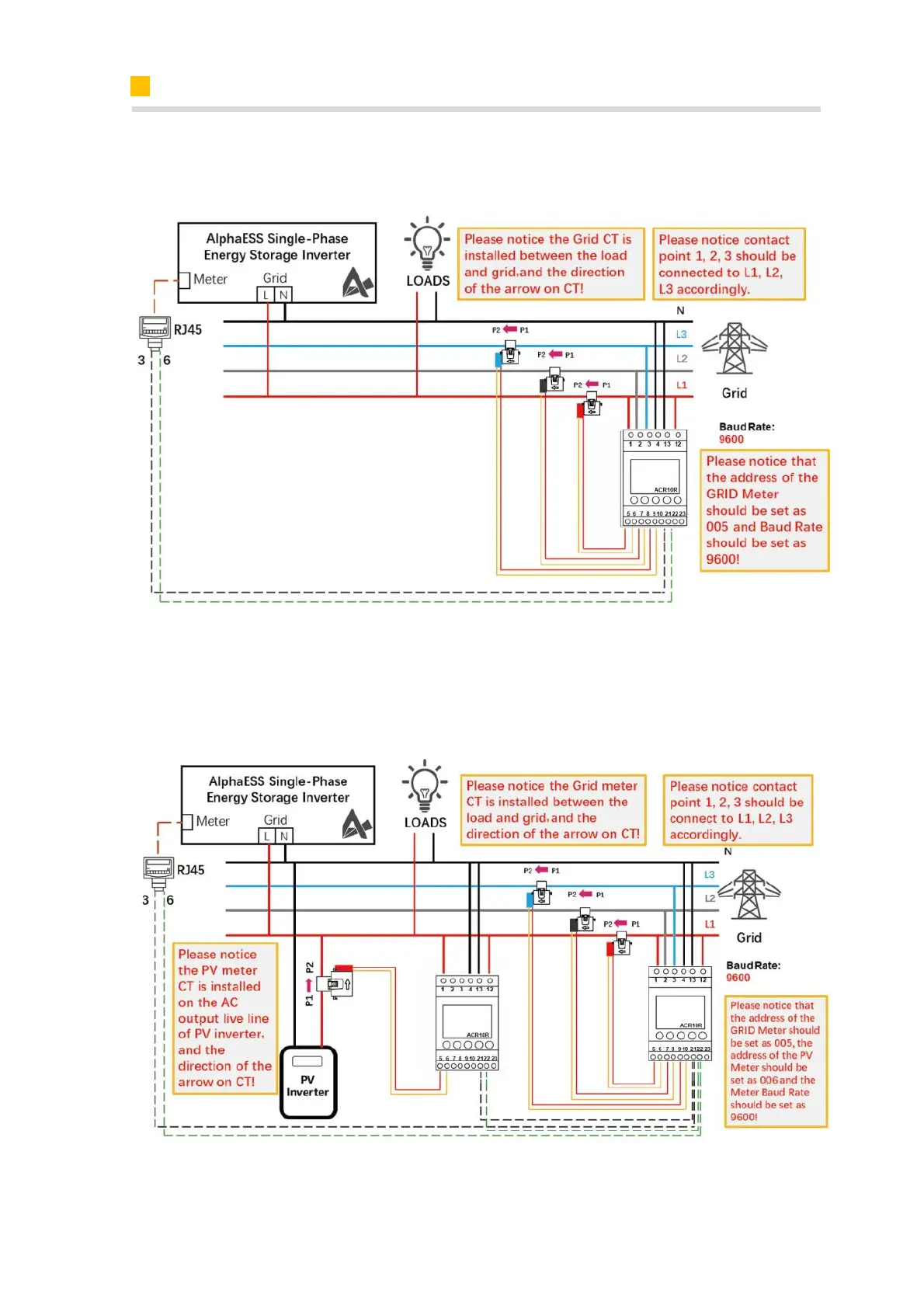

ACR10R three-phase Connection (DC-Coupled System)
6.4.4.3.2 AC / Hybrid-Coupled System
ACR10R three-phase Connection (AC / Hybrid-Coupled System)
