Aufstellungsplan ist gültig für:
PL 2009 und älter: LW 250A, LW 260A
PL 2010, LW 140A-180A, LW 320HA
8
7
6
5
4
3
2
1
www.alpha-innotec.de
D - 95359 Kasendorf
Industriestraße 3
Alpha-InnoTec GmbH
Schutzvermerk nach DIN 34 beachten
1
1
Ers. d.
Ers. f.
A
B
C
D
E
F
F
E
D
C
B
A
4
3
2
1
Benennung
BG4: LW 140A, 180A, 250A, LW 320HA
819377
-
Zust.
Änderungstext
ÄM 028/2009
Datum
18.3.2010
RA
Von
Blatt
von
Werkstoff
Gewicht
Maßstab
1:20 1:35
Det. Maßstab
Datum
Name
Erstellt
Gepr.
Norm.
18.3.2010
Aepfelbach
18.3.2010
Aepfelbach
toleranz
Allgemein-
Oberflächen
ArtikelNr.

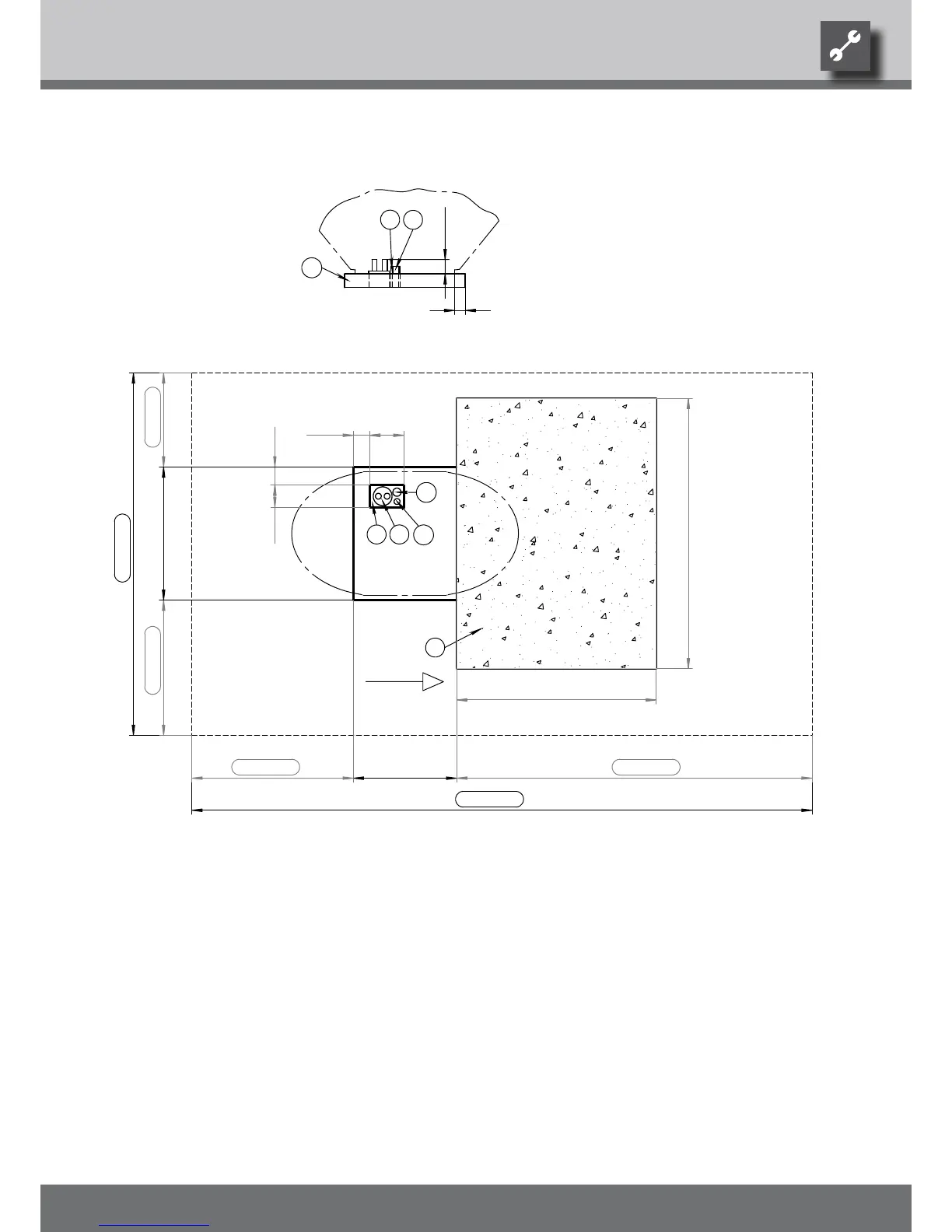

Aufstellungs/- Sockelplan
Legend: UK819377
All dimensions in mm.
A Front view
C Top view
Minimum clearances
1 Recess in base
2 Local heat pipe for heating water forward/return ow
3 Empty pipe for electric cables, minimum diameter 70mm
4 Condensate discharge, minimum diameter 50mm
5 water-permeable surface (gravel,) in the air outlet area
6 Base
LR Air direction
We reserve the right to modify technical specifications without prior notice.
UK830532/200610 © Alpha-InnoTec GmbH
Installation plan LW 140… – LW 180…A • LW 320H
