Alpha ARES 440 Tec - View of Main Parts

10
Technical characteristics and dimensions

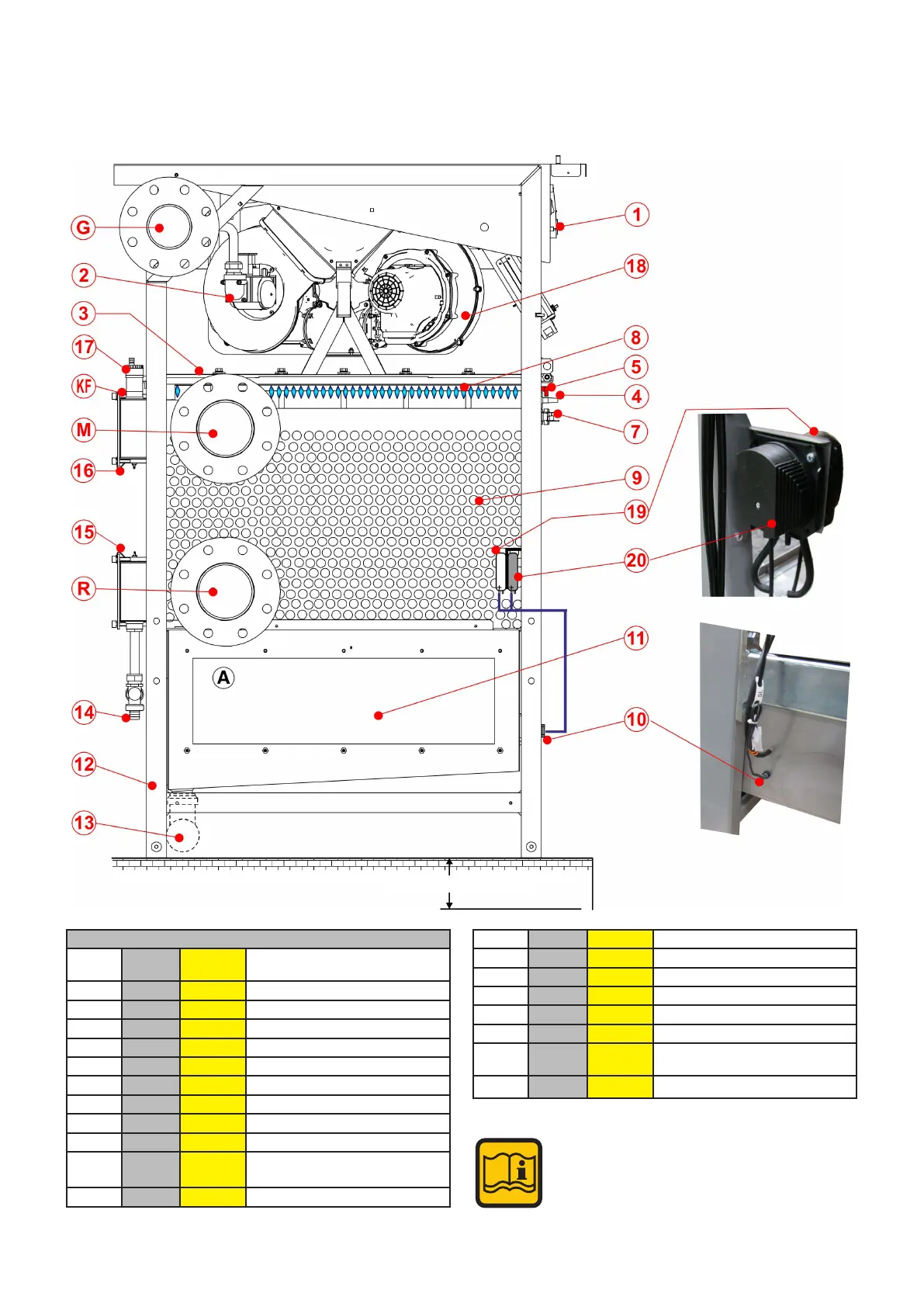

2.2 VIEW OF MAIN PARTS
Min. depth 100 mm
ue outlet LEFT, RIGHT, REAR side
ow LEFT side
return LEFT side
Gas inletLEFT side
BCM: under the front casing
KEY
N°
Error
code
Wiring
diagram
Description
1 HSCP
CONTROL PANEL
2 VG
GAS VALVE
3
BURNER COVER
4 E. ACC.
IGNITION
5 E. RIL.
IONISATION
7 TL
LIMIT THERMOSTAT
8
BURNER
9
SILICON ALUMINIUM EXCHANGER
10 SL
LEVEL SENSOR
11
CONDENSATION COLLECTION
PAN / FLUE FITTING
12
FRAME
13
CONDENSATE DRAIN OUTLET
14
DRAINING VALVE
15 SRR
RETURN GLOBAL NTC
16 SMG
PROBE FLOW GLOBAL NTC
17
AUTOMATIC AIR BLEED VALVE
18
FAN
19 PF min
MINIMUM FLUE PRESSURE
SWITCH
20 PF
FLUE PRESSURE SWITCH
