7. GETTING TO KNOW YOUR SPA POOL
K2 SPA POOL OVERVIEW
Components:
Spa Pool Controller SpaNet SV3-VH
TopsideControlPanel SpaNet SV3-VH
Heater Element 6KW(Variable)
Pumps 1xCirculationPump+2xJetMassagePump(3HP)
Skimmer/FilterType Grate Filter
Sanitizers Ozone,Ultra-Violet
Electrical Info 32amps 230 - 240V AC 50hz IPX5
Cable NoCableIncluded-HardwiringRequired.
Hardwire Required:
Thisspapoolrequiresdirecthardwiringfromthecircuitboardtothesystem
controllerwithsuitableelectricalcable.
Locating the Controller
Removethecabinetpanelsfromthesideofthespathathousesthecontroller(see
followingpictureforexactlocation).

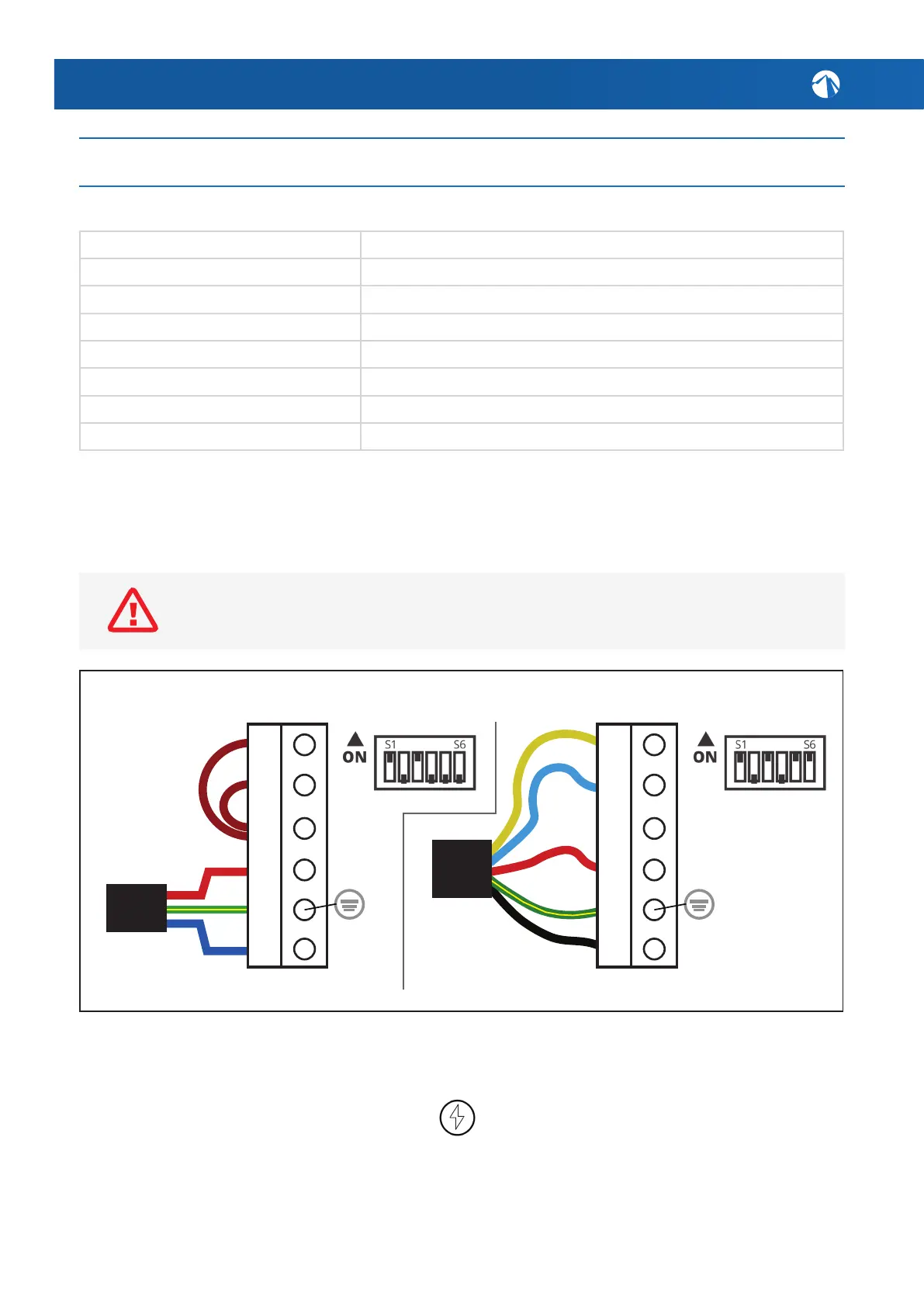

BELOW DIAGRAMS ARE FOR 32A CONNECTIONS.
DIP SWITCHES ARE PRESET FOR SINGLE PHASE.
P3
P2
CS
P1
G
N
ON
S1 S6 S1 S6
P3
P2
CS
P1
G
N
ON
DO NOT POWER THE SPA BEFORE IT HAS BEEN FILLED
SINGLE PHASE THREE PHASE
DIP SWITCHES DIP SWITCHES
