ELECTRICAL WIRING / POWERING UP
Electrical Information Per Model
MODEL AMP CABLE/PLUG TECH INFO / WIRING
FUJI 15A* 15A CABLE & PLUG INCLUDED See Page 30
COLORADO 15A* 15A CABLE & PLUG INCLUDED See Page 32
NEPAL 15A* 15A CABLE & PLUG INCLUDED See Page 34
UTAH 15A* 15A CABLE & PLUG INCLUDED See Page 36
NORDIC 15A* 15A CABLE & PLUG INCLUDED See Page 38
ALASKA 15A* 15A CABLE & PLUG INCLUDED See Page 40
YUKON 15A* 15A CABLE & PLUG INCLUDED See Page 42
MONTANA 15A* 15A CABLE & PLUG INCLUDED See Page 44
VERMONT 15A* 15A CABLE & PLUG INCLUDED See Page 46
MAKALU 15A* 15A CABLE & PLUG INCLUDED See Page 48
MATTERHORN 15A* 15A CABLE & PLUG INCLUDED See Page 50
LUCANIA 15A* 15A CABLE & PLUG INCLUDED See Page 52
SIERRA 25A HARDWIRE REQUIRED See Page 54
VANCOUVER 25A HARDWIRE REQUIRED See Page 56
MUNRO 25A HARDWIRE REQUIRED See Page 58
K2 32A HARDWIRE REQUIRED See Page 60

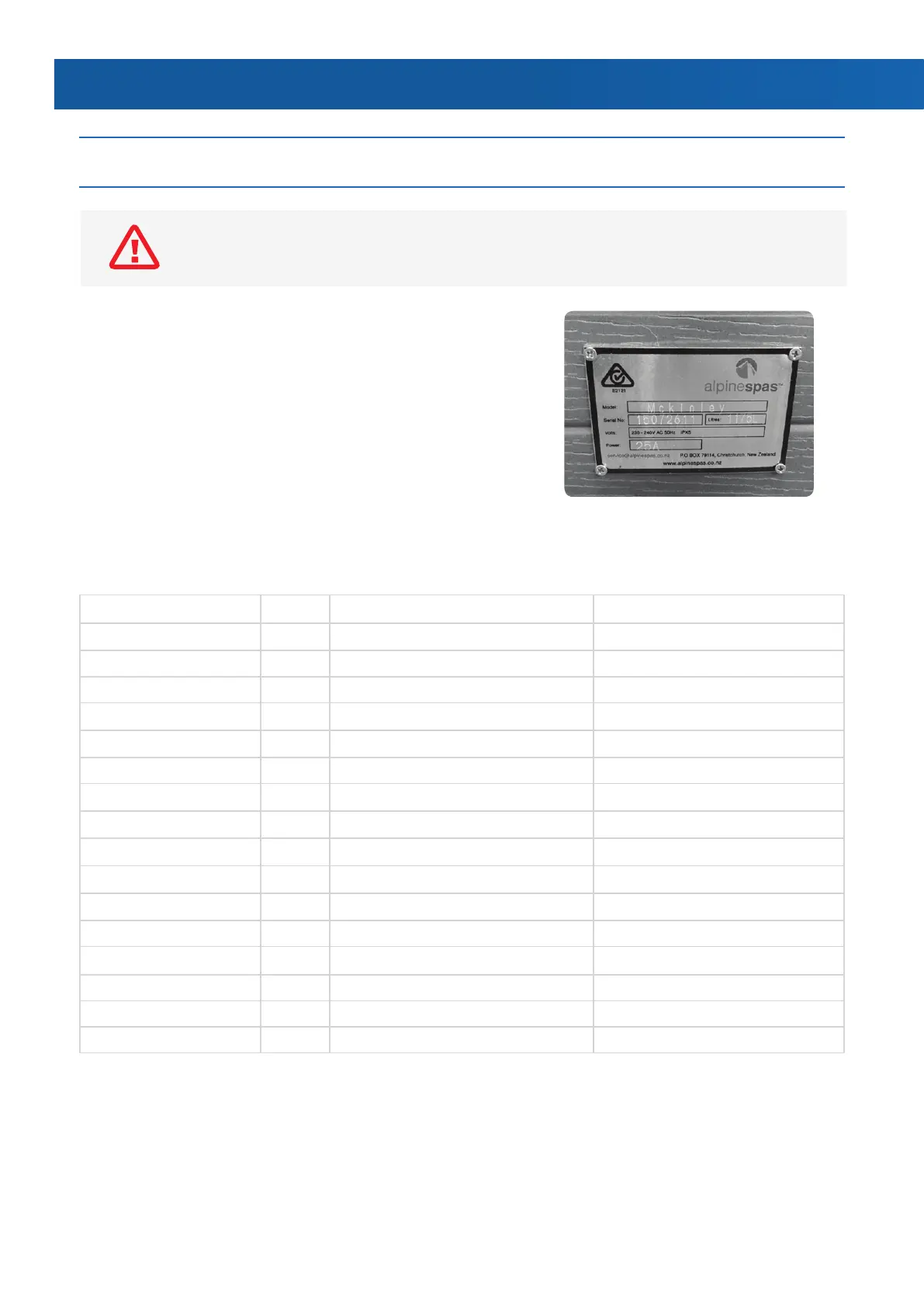

How to Check The Model of Your Spa Pool:
ANY ELECTRICAL WIRING WORK MUST BE PERFORMED
BY A LICENSED ELECTRICIAN.
4. INSTALLATION INSTRUCTIONS
Silver Plaque
Themodelnameisimprintedonasilverplaque,
usuallylocatedalongthebottomedgeofthespa
poolcabinet.Checkaroundthewholeperimeter
of the spa pool to locate.
*15Aisthepre-setdefaultforthesespapoolmodelswhichmeansthesystemwill
automaticallyload-shed(disable)theheaterwhenthepumps(jets)areturnedon.
These15Amodelscanbewiredwitha25Afeedtodisableloadshed.
Seefollowingpagefordetails.
