BATTERY: troubleshooting (3/4)
D

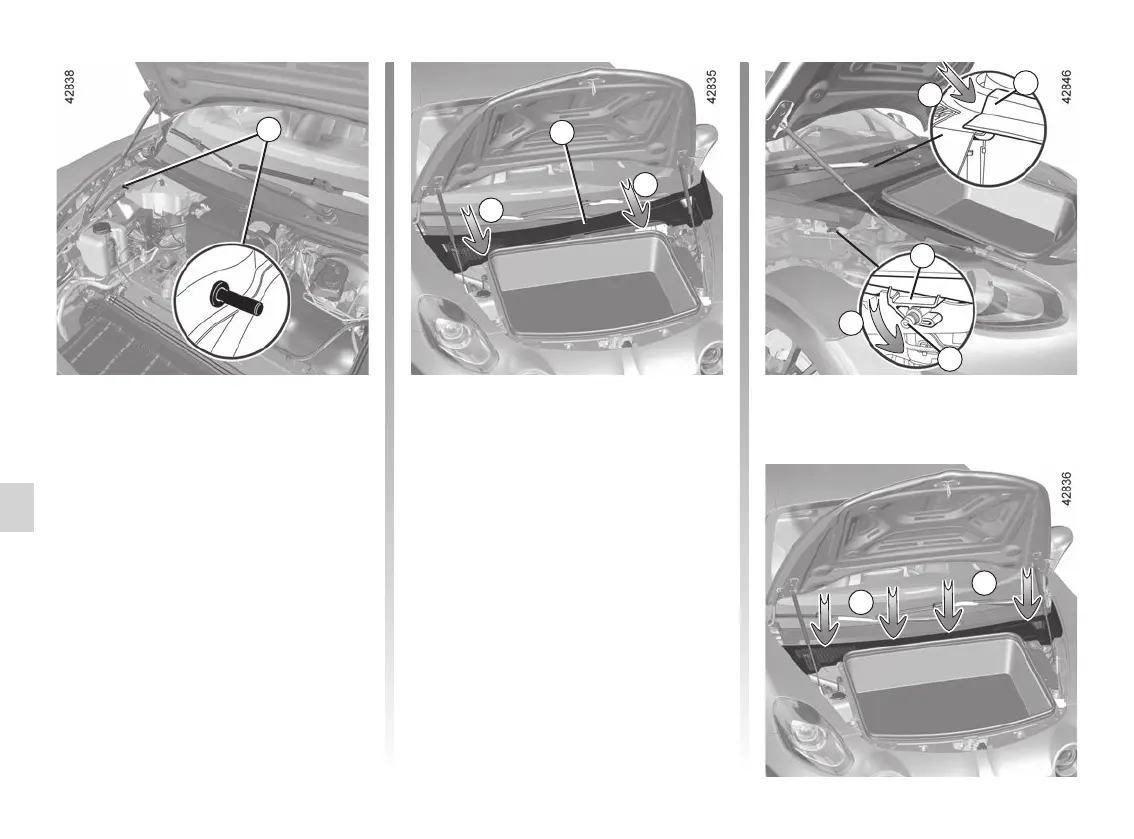

Refitting the scuttle panel grille run
channel
It is important to reposition the run
channel 3 correctly.
To do this:
– position the run channel 3 (move-
ment D);
– depending on the vehicle, insert the
run channel 3 into the wing cover
housing 6 (movement E);
– clip the component 5 on each end
of the run channel to the bodywork
mounting 4 (movement F);
– press the run channel (movement G)
to clip it.
Note: if you have difficulty clipping the
run channel 3 (movement G), check if
it has been inserted into components 4
and 6: risk of damage to run channel.
3
G
G
D
4
F
E
6
4
5
