Alpine CDE-183BT User Manual

18-EN
The Low Pass Filter on this unit can be adjusted to suit your personal
taste.
 Setting item: SUBW LPF
Setting contents:
OFF (Initial setting) / 60 (Hz) / 80 (Hz) / 120 (Hz) / 160 (Hz)
All frequencies lower than the selected cutoff are output.
The subwoofer output phase is toggeled between SUBWOOFER
NORMAL (0°) or SUBWOOFER REVERSE (180°). Depending on the
installation location of your subwoofer, one of these settings may sound
better than the other.
 Setting item: SUBW PHASE
Setting contents:
NORMAL (Initial setting) / REVERSE
When the subwoofer is on, you can select either SYSTEM 1 or SYSTEM
2 for the desired subwoofer effect.
 Setting item: SUBW SYS
Setting contents:
SUBW SYS 1 / SUBW SYS 2 (Initial setting)
SUBW SYS 1:
Subwoofer level changes according to the main volume setting.
SUBW SYS 2:
Subwoofer level change is different from the main volume setting.
For example, even at low volume settings, the subwoofer is still
audible.

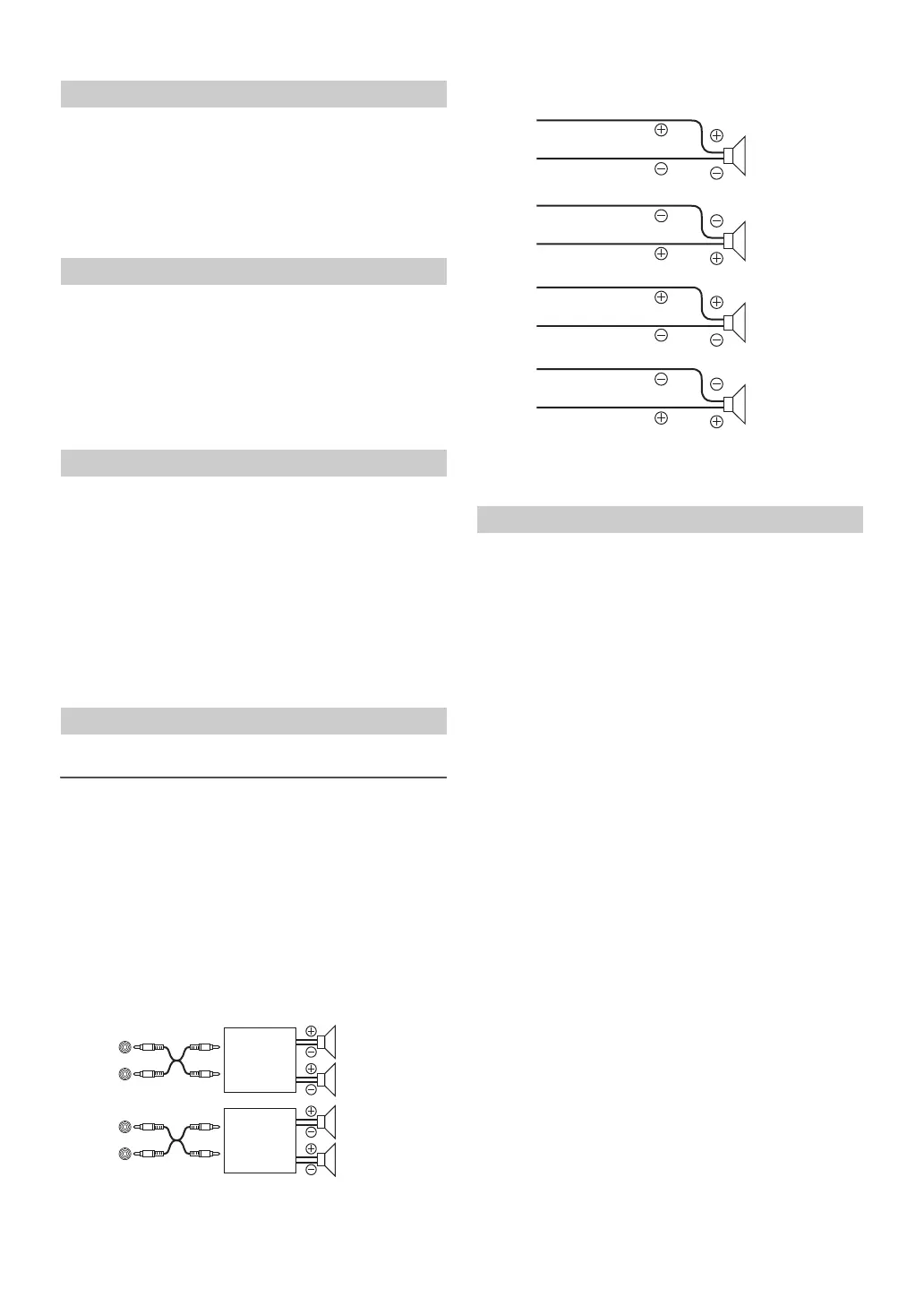

Connecting to an External Amplifier (POWER IC)
When an external amplifier is connected, sound quality can be
improved by stopping the power supply of the built-in amplifier.
 Setting item: POWER IC
Setting contents:
OFF / ON (Initial setting)
OFF:
Use this mode when the line output of this unit is used to drive an
external amplifier. In this setting, the head unit’s internal amplifier
is turned OFF and cannot drive speakers.
ON:
The speakers are driven by the built-in amplifier.
OFF:
ON:
Note
• No sound is produced by the system when the power output is set to
OFF.
MX (Media Xpander) makes vocals or instruments sound distinct
regardless of the music source. The CD and iPod, etc. will be able to
reproduce the music clearly even in cars with a lot of road noise.
 Setting item: MX SETTING
1 Turn the Rotary encoder to select the source to which you
want to apply Media Xpander, and then press ENTER.
CD  CMPM
*
 USB  iPod  BT AUDIO  AUX
* Be applied for MP3/WMA/AAC files in disc.
2 Turn the Rotary encoder to select the Media Xpander
level, and then press ENTER.
LEVEL OFF  LEVEL 1  LEVEL 2  LEVEL 3
Note
• There is no MX mode for FM, MW and LW radio.
Adjusting the Low Pass Filter
Setting the Subwoofer Phase
Setting the Subwoofer System
External Device
Front
Left
Amplier
Front
Right
Rear
Left
Amplier
Rear
Right
Setting the Media Xpander mode
Speakers
SPEAKER
RIGHT FRONT
Front
Right
SPEAKER
RIGHT REAR
Rear
Right
SPEAKER
LEFT REAR
Rear
Left
SPEAKER
LEFT FRONT
Front
Left

Alpine CDE-183BT Specifications

General

MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WMA
DIN size	1 DIN
Impedance	10 Ω
Product color	Black
Volume control	Rotary
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	9
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display number of lines	1 lines
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
USB version	2.0
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, HSP, OPP, PBAP, SPP
USB ports quantity	1
Headphone connectivity	3.5mm
Menu languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
File format system	FAT 16/32
Key illumination color	Multi

Weight and Dimensions

Weight	1400 g
Dimensions (WxDxH)	170 x 46 x 25 mm
