40-EN

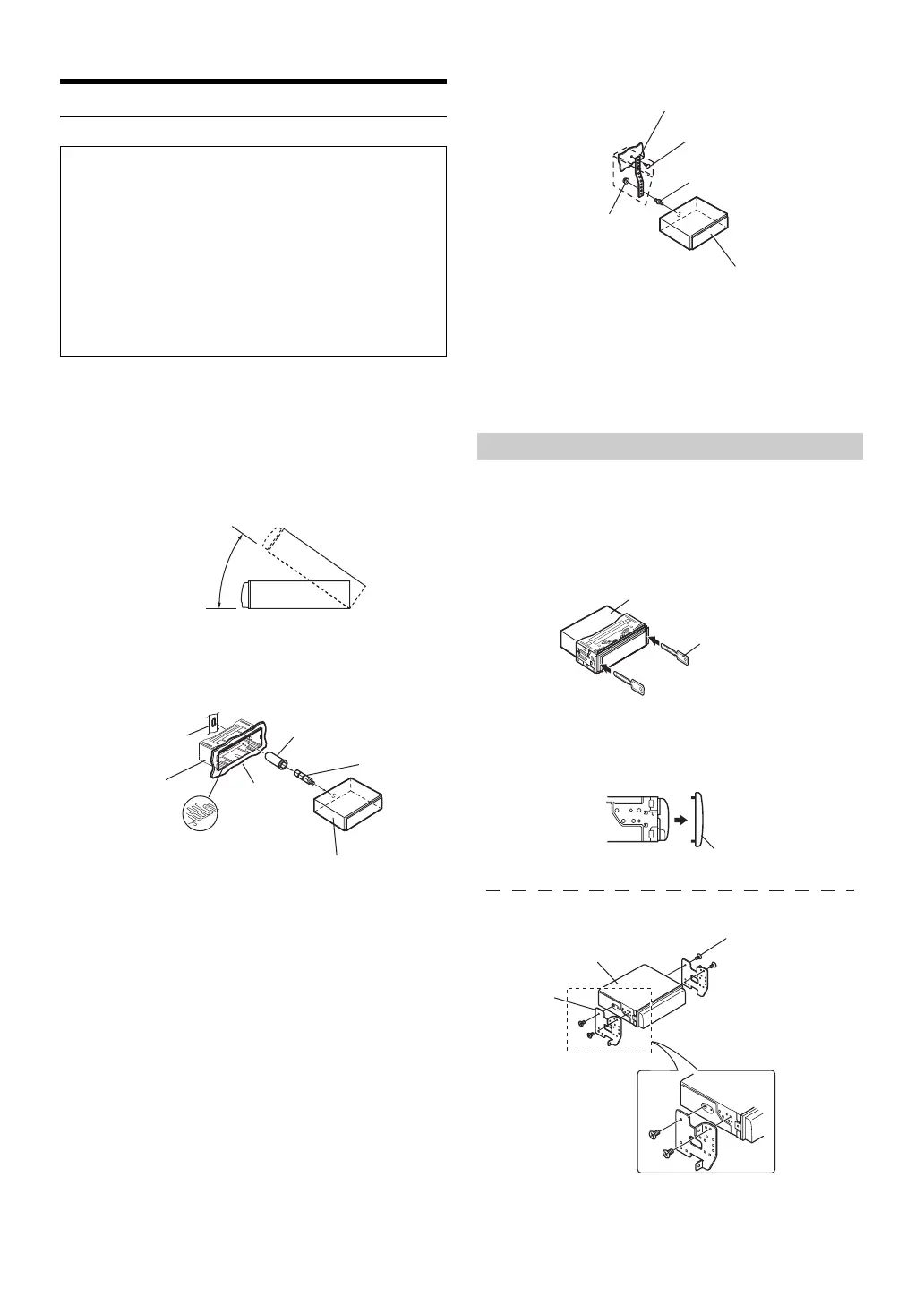

Installation
CAUTION
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
The main unit must be mounted within 35 degrees of the
horizontal plane, back to front.
1
Remove the mounting sleeve from the main unit (refer to
“Removal” on page 40). Slide the mounting sleeve into the
dashboard and fix it with the metal shackles.
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2
When your vehicle has the Bracket, mount the long hex
bolt onto the rear panel of the CDE-183BT and put the
Rubber Cap on the hex bolt. If your vehicle does not have
the Mounting Support, reinforce the head unit with the
metal mounting strap (not supplied). Connect all the leads
of the CDE-183BT according to details described in the
CONNECTIONS section.
* For the screw
*
, provide a proper screw to the chassis installing
location.
3
Slide the CDE-183BT into the dashboard until it clicks. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard. Install the
detachable front panel.
1
Remove the detachable front panel.
2
Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
3
Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
To prevent external noise from entering the audio system.
• Locate the unit and route the leads at least 10 cm away from the
car harness.
• Keep the battery power leads as far away from other leads as
possible.
• Connect the ground lead securely to a bare metal spot (remove
any paint, dirt or grease if necessary) of the car chassis.
• If you add an optional noise suppressor, connect it as far away
from the unit as possible. Your Alpine dealer carries various
noise suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention
measures so consult your dealer for further information.
Rubber Cap (Included)
Bracket
Hex Bolt
(Included)
Mounting Sleeve
(Included)
Dashboard
Pressure Plates
*
This unit
Removal
*
Metal Mounting Strap
Screw
Bolt Stud
Hex Nut (M5)
This unit
Bracket keys
(Included)
This unit
Front Frame
Screw (M5 × 8)
(Included)
This unit
Mounting
Bracket
