*4 ID3 tag/WMA tag
If an MP3/WMA/AAC file contains ID3 tag/WMA tag
information, the ID3 tag/WMA tag information is displayed
(e.g., song name, artist name, and album name). All other
tag data is ignored.
If there is no tag information, “ARTIST”/“ALBUM”/“SONG”
is displayed.
*5 Depending on the connected Smartphone, the elapsed time
may not be displayed.
Text compatible CDs contain text information such as the disc name and
track name. Such text information is referred to as “text”.
Notes
• Some characters may not be displayed correctly with this device,
depending on the character type.
• “NO SUPPORT” is displayed when the desired text information cannot
be displayed on this unit.
• The text or tag information may not be correctly displayed, depending
on the contents.
Using the Front AUX Input Terminal
Connect a portable music player, etc. by simply connecting it to the
input on the front panel. An optional adapter cable is required (standard
RCA to 3.5ø mini-phono plug or 3.5ø to 3.5ø mini-phono plug).
Press VSOURCE, and select the AUXILIARY mode to
listen to the portable device.
Notes
• This function is available only when AUX SETUP is set to ON. For
details, refer to “Setting the AUX SETUP mode” on page 22.
• Do not connect a USB memory Device and an AUX Input Terminal
connector at the same time.
Option Menu Setting
You can quickly adjust the setting items relevant to the current SOURCE
by using Option Menu.
1 Press and hold ENTER/OPTION for at least 2 seconds
to activate the Option menu of the current source.
Note
• The option menu varies depending on the source.
2 Turn the Rotary encoder to select the desired setting
item, and then press ENTER.
3 Turn the Rotary encoder to change the setting, and then
press ENTER.
After the setting, the display will return to the current source
automatically.
The following setting items are displayed when MENU LANG is
set to ENGLISH. For details, refer to “Setting the Menu Language”
on page 22.
 Setting item:
TUNER mode:
TUNER SET
*1
 SOURCE VOL
*2
 DIMMER
*3
DISC mode:
CD SET
*4
 SOURCE VOL
*2
 MX SETTING
*5
 DIMMER
*3
USB mode:
SOURCE VOL
*2
 MX SETTING
*5
 DIMMER
*3
iPod mode:
APP DIRECT
*6
 iPod SET
*7
 SOURCE VOL
*2
 MX SETTING
*5
 DIMMER
*3
AUX mode:
AUX SET
*8
 SOURCE VOL
*2
 MX SETTING
*5
 DIMMER
*3
BT AUDIO mode:
BT SET
*9
 SOURCE VOL
*2
 MX SETTING
*5
 DIMMER
*3
Phone mode (Non-calling mode):
PHONE SET
*10
 SOURCE VOL
*11
 DIMMER
*3
Phone mode (Calling mode):
MIC GAIN
*12
 CALL SOUND
*12
 SPK SWITCH
*13

VOICE MUTE
*14
 CALL WAIT
*15
 END CALL
*16

SOURCE VOL
*11
 DIMMER
*3
*1 The setting items are the same as TUNER setting in SETUP
mode. For details, refer to “SETUP” on page 22.
*2 You can individually emphasise or weaken the volume level
of the current source to create your own tonal preference. The
setting values in Option mode and in SETUP mode are
linked. Refer to “Setting the Source Volume Level” on page 17.
*3 Refer to “Dimmer Control” on page 23.
*4 PLAY MODE can be selected in this mode. For details, refer
to “Playing MP3/WMA/AAC Data (PLAY MODE)” on
page 23.
*5 Refer to “Setting the Media Xpander mode” on page 18.
*6 Refer to “Setting the iPod Control” on page 32.
*7 The setting items are the same as iPod setting in SETUP
mode. For details, refer to “iPod/iPhone Search Mode
Setting” on page 24.
*8 AUX NAME can be selected in this mode. For details, refer to
“Setting the AUX NAME mode” on page 22.
*9 FW VERSION can be selected in this mode. You can see the
current firmware version about BLUETOOTH by using this
setting.
*10 CALL SOUND, CALLER ID, PB UPDATE, PB ORDER,
AUTO ANS, SPEAKER SL and FW VERSION can be
selected in this mode. For details about these settings, refer to
“BLUETOOTH SETUP” on page 26.
*11 The Hands free phone talk level, ring tone level and
microphone gain level can be adjusted by using this setting.
The setting values in Option mode and in SETUP mode are
linked. Refer to “Adjusting the volume (SOURCE VOL)” on
page 27.
*12 Refer to “Setting the BLUETOOTH sound quality” on
page 27.
*13 While calling, the call sound can be switched between the
unit and Smartphone by using this setting.
This operation can also be done by pressing BAND. Refer to
“Call Switching Operation” on page 30.
About “Text”

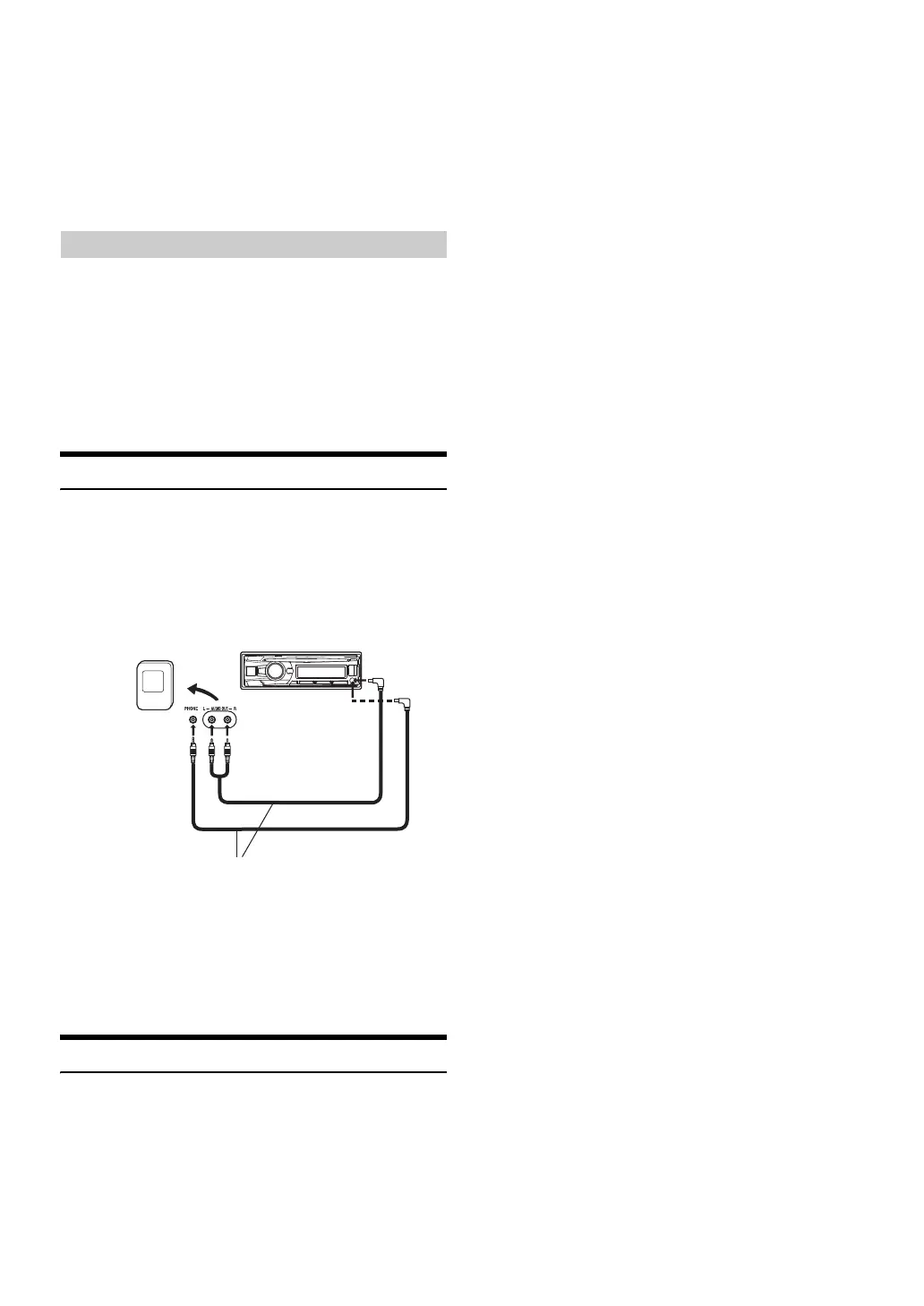

Portable player, etc.
Main unit
or
Optional adapter cable (RCA pin
plugs [red, white] 3.5ø miniplugs)
or (3.5ø miniplugs).

Alpine CDE-183BT Specifications

General

MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WMA
DIN size	1 DIN
Impedance	10 Ω
Product color	Black
Volume control	Rotary
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	9
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display number of lines	1 lines
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
USB version	2.0
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, HSP, OPP, PBAP, SPP
USB ports quantity	1
Headphone connectivity	3.5mm
Menu languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
File format system	FAT 16/32
Key illumination color	Multi

Weight and Dimensions

Weight	1400 g
Dimensions (WxDxH)	170 x 46 x 25 mm
