CONNECTION CHECK LIST
Please check your head unit for the conditions
listed below:
Remote Turn-On Lead
a. The head unit does not have a remote turn-on
or power antenna lead.
b. The head unit’s power antenna lead is activated
only when the radio is on (turns off in the tape
or CD Mode).
c. The head unit’s power antenna lead is logic level
output (+) 5V, negative trigger (grounding type),
or cannot sustain (+) 12V when connected to
other equipment in addition to the vehicle’s
power antenna.
If any of the above conditions exist, the remote
turn-on lead of your HDA-M80/HDA-F60/
HDA-V90 must be connected to a switched
power source (ignition) in the vehicle. Be sure to
use a 3A fuse as close as possible to this ignition
tap. Using this connection method, the
HDA-M80/HDA-F60/HDA-V90 will turn on and
stay on as long as the ignition switch is on.
If this is objectionable, a SPST (Single Pole,
Single Throw) switch, in addition to the 3A fuse
mentioned above, may be installed in-line on
the HDA-M80/HDA-F60/HDA-V90 turn-on lead.
This switch will then be used to turn on (and off)
the HDA-M80/HDA-F60/HDA-V90. Therefore, the
switch should be mounted so that is accessible
by the driver. Make sure the switch is turned off
when the vehicle is not running. Otherwise, the
amplifier will remain on and drain the battery.

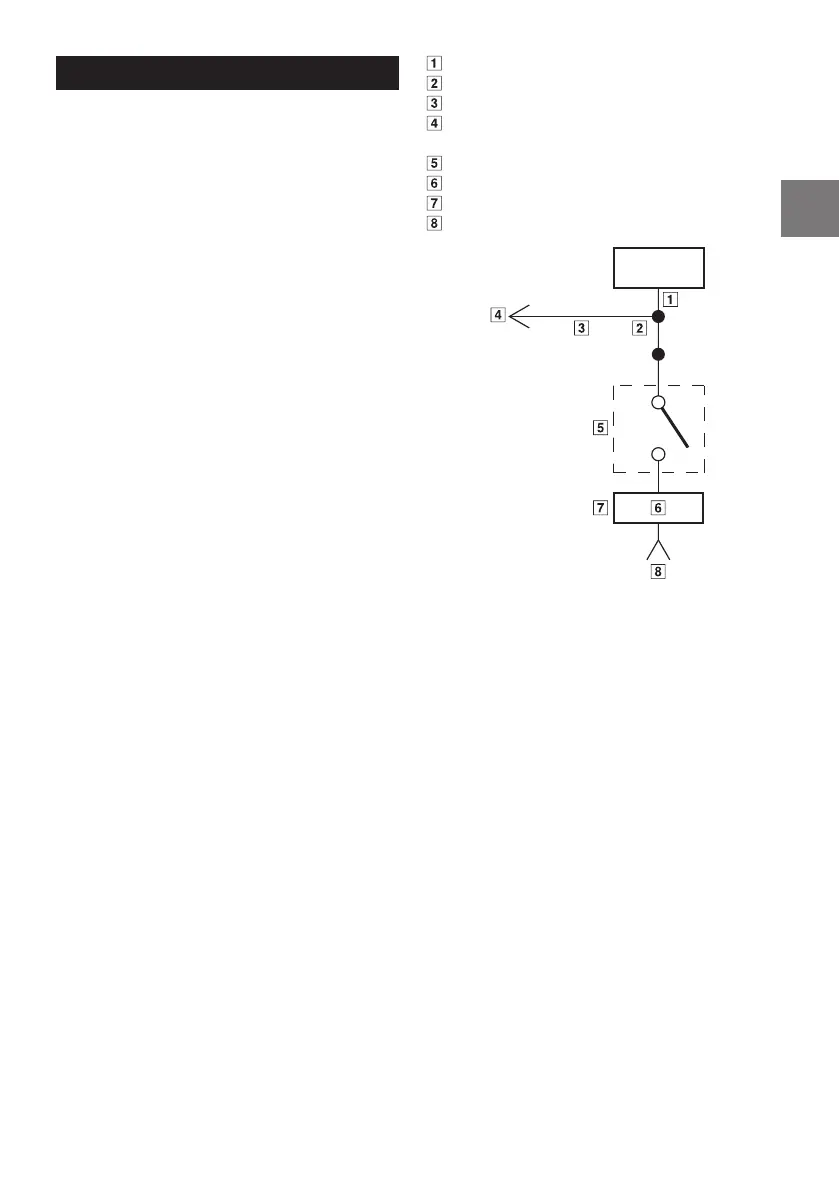

Blue/White
Power Antenna
Remote Turn-On Lead
To other Alpine component’s Remote Turn-On
Leads
SPST Switch (optional)
Fuse (3A)
As close as possible to the vehicle’s ignition tap
Ignition Source
Amplifier
3. Tighten the hexagon hole screw with the
hexagon wrench (Large or Small) (included) to
secure the lead.
Before making this connection, use insulated
shrink tubing to cover any exposed wire
extending beyond the terminal.
Battery Connector
Battery Lead
Remote Turn On Lead
Hexagon wrench
Ground Lead
Hexagon wrench
Speaker Connector
Speaker Output Lead (+)
Speaker Output Lead (-)
NOTES:
• Be sure to use the Hexagon hole screw attached
to the Battery Connector or Speaker Connector.
• For safety reasons, connect the battery leads last.
• To prevent disconnection of the leads or
dropping of the unit, do not use the cabling to
carry the unit.
