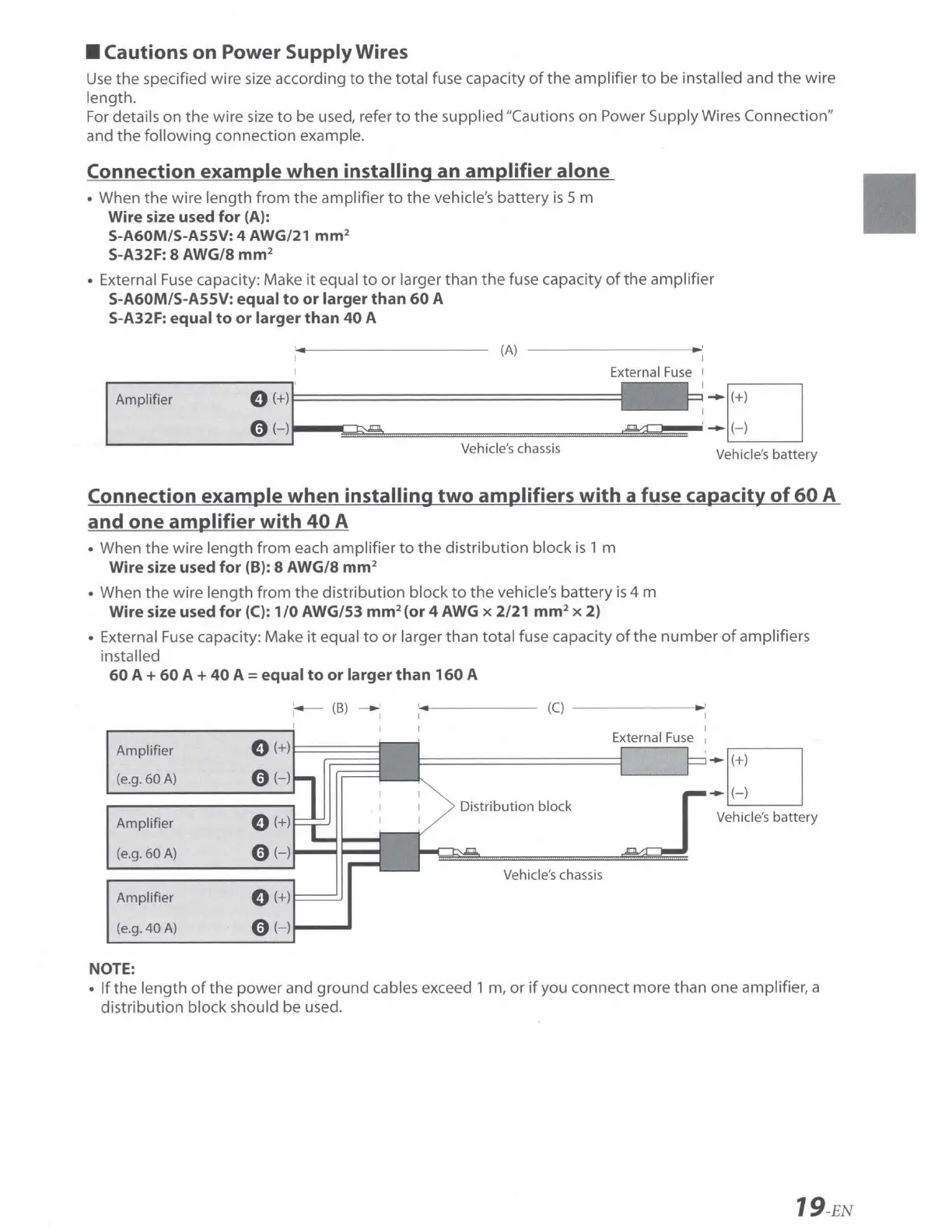

Cautions on Power Supply Wires
Use
the
specified wire size according
to
the
total
fuse capacity
of
the
amplifier
to
be installed and
the
wire
length.
For details
on
the
wire
size
to
be used, refer
to
the
supplied "Cautions on Power Supply Wires Connection"
and
the
following
connection example.
Connection example when installing an amplifier alone
When
the
wire length from
the
amplifier
to
the
vehicle's battery
is
5 m
Wire size used
for
(A):
S-A60M/S-ASSV: 4 AWG/21
mm
2
S-A32F: 8 AWG/8
mm
2
External
Fuse
capacity: Make
it
equal
to
or
larger than
the
fuse capacity
of
the
amplifier
S-A60M/S-ASSV: equal
to
or
larger
than
60
A
S-A32F: equal
to
or
larger
than
40
A
(A)
External
Fuse
1~•-m_p-lif-ie_r
___
:_~_::~:1~---~5>8£.....,,,,....,,,,...,... ..............
....,,,,....,,,,...,......,....~~;;i::-
:
:
Vehicle's chassis Vehi·cle's
batt
ery
Connection example when installing
two
amplifiers
with
a fuse capacity
of
60
A
and one amplifier
with
40
A
When
the
wire length from each amplifier
to
the
distribution block
is
1 m
Wire size used
for
(B): 8 AWG/8
mm
2
When
the
wire length from
the
distribution block
to
the
vehicle's battery
is
4 m
Wire size used
for
(C):
1/0
AWG/53
mm
2
(or 4
AWG
x 2/21
mm
2
x 2)
External
Fuse
capacity: Make
it
equal
to
or
larger than
total
fuse capacity
of
the
number
of
amplifiers
installed
60
A +
60
A +
40
A = equal
to
or
larger
than
160
A
(
C)
______
.,
~ (
B)
_.,
I
I
Amplifier
C,(+)
(e.g.
60
A)
0H
External
Fuse
I
·-
F7
Dis
tribution
block
-6-J
Vehicle's battery
Amplifier
0 (+)
(e.g.
60
A)
0(-)
Vehicle's chassis
Amplifier
0 (+)
(e.g. 40
A)
0
(-)
NOTE:
If
the
length
of
the
power
and
ground
cables exceed 1 m,
or
if
you connect more than one amplifier, a
distribution block should be used.
19
-EN
