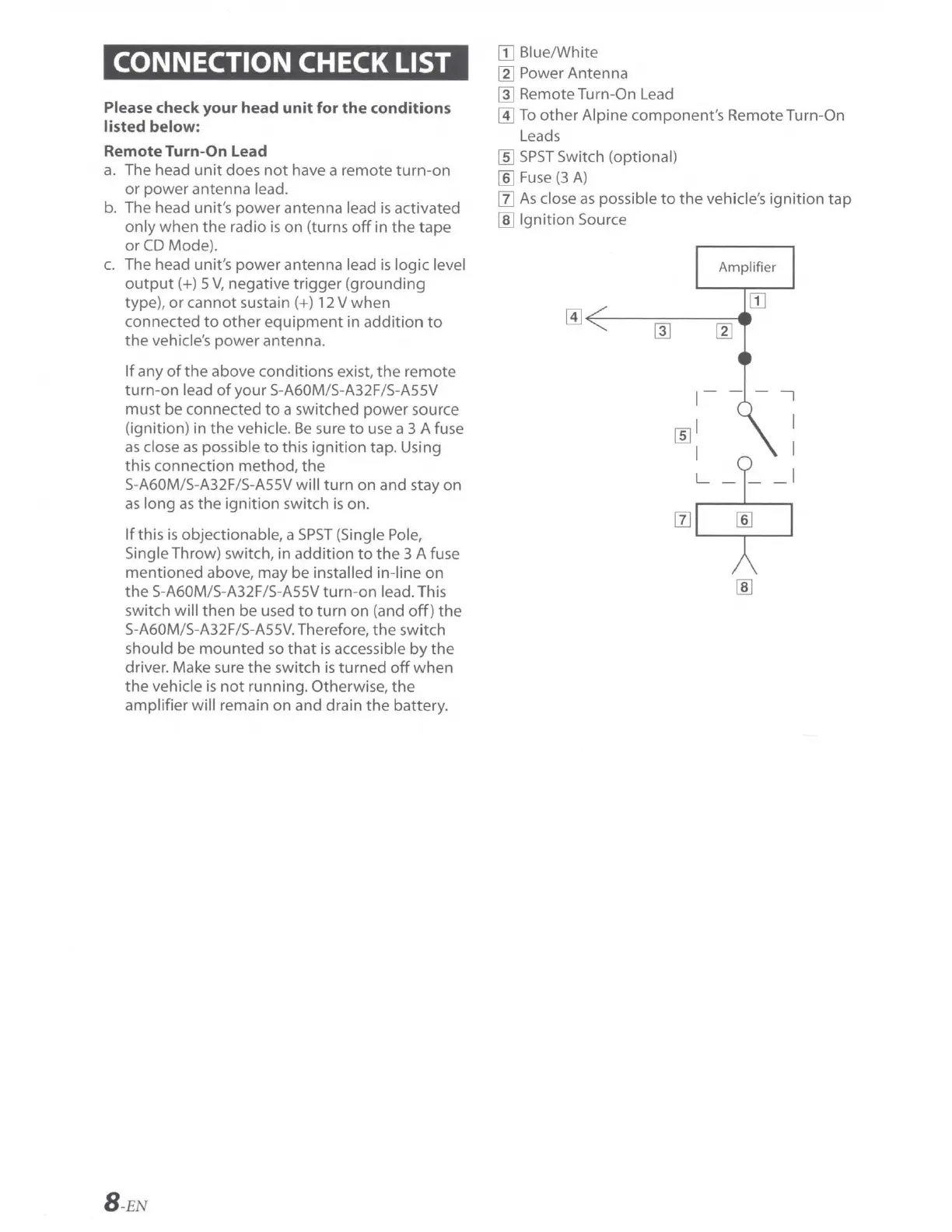

CONNECTION
CHECK
LIST
Please check your head
unit
for
the
conditions
listed below:
Remote Turn-On Lead
a.
The head
unit
does
not
have a remote
turn-on
or
power
antenna lead.
b.
The head unit's
power
antenna lead
is
activated
only when
the
radio
is
on (turns
off
in
the
tape
or
CD
Mode).
c.
The head unit's
power
antenna lead
is
logic level
output(+)
5
V,
negative
trigger
(grounding
type),
or
cannot sustain (+) 12 V when
connected
to
other
equipment
in
addition
to
the
vehicle's
power
antenna.
If
any
of
the
above conditions exist,
the
remote
turn-on
lead
of
your S-A60M/S-A32F/S-ASSV
must be connected
to
a switched power source
(ignition) in
the
vehicle.
Be
sure
to
use a 3 A fuse
as
close
as
possible
to
this
ignition
tap. Using
this connection method,
the
S-A60M/S-A32F/S-ASSV will
turn
on and stay on
as
long
as
the
ignition switch
is
on.
If
this
is
objectionable, a
SPST
(Single Pole,
Single Throw) switch, in addition
to
the
3 A fuse
mentioned
above, may be installed
in
-line
on
the
S-A60M/S-A32F/S-ASSV
turn-on
lead. This
switch will then be used
to
turn
on (and
off)
the
S-A60M/S-A32F/S-ASSV. Therefore,
the
switch
should be
mounted
so
that
is
accessible
by
the
driver. Make sure
the
switch is
turned
off
when
the
vehicle is
not
running. Otherwise,
the
amplifier will remain on and drain
the
battery.
B
-EN
[I] Blue/White
~
Power Antenna
~
Remote Turn-On
Lead
@]
To
other Alpine component's Remote Turn-On
Leads
[[]
SPST
Switch (optional)
[fil
Fuse
(3
A)
[I]
As
close
as
possible
to
the
vehicle's
ignition
tap
[ID
Ignition Source
Amplifier
7
