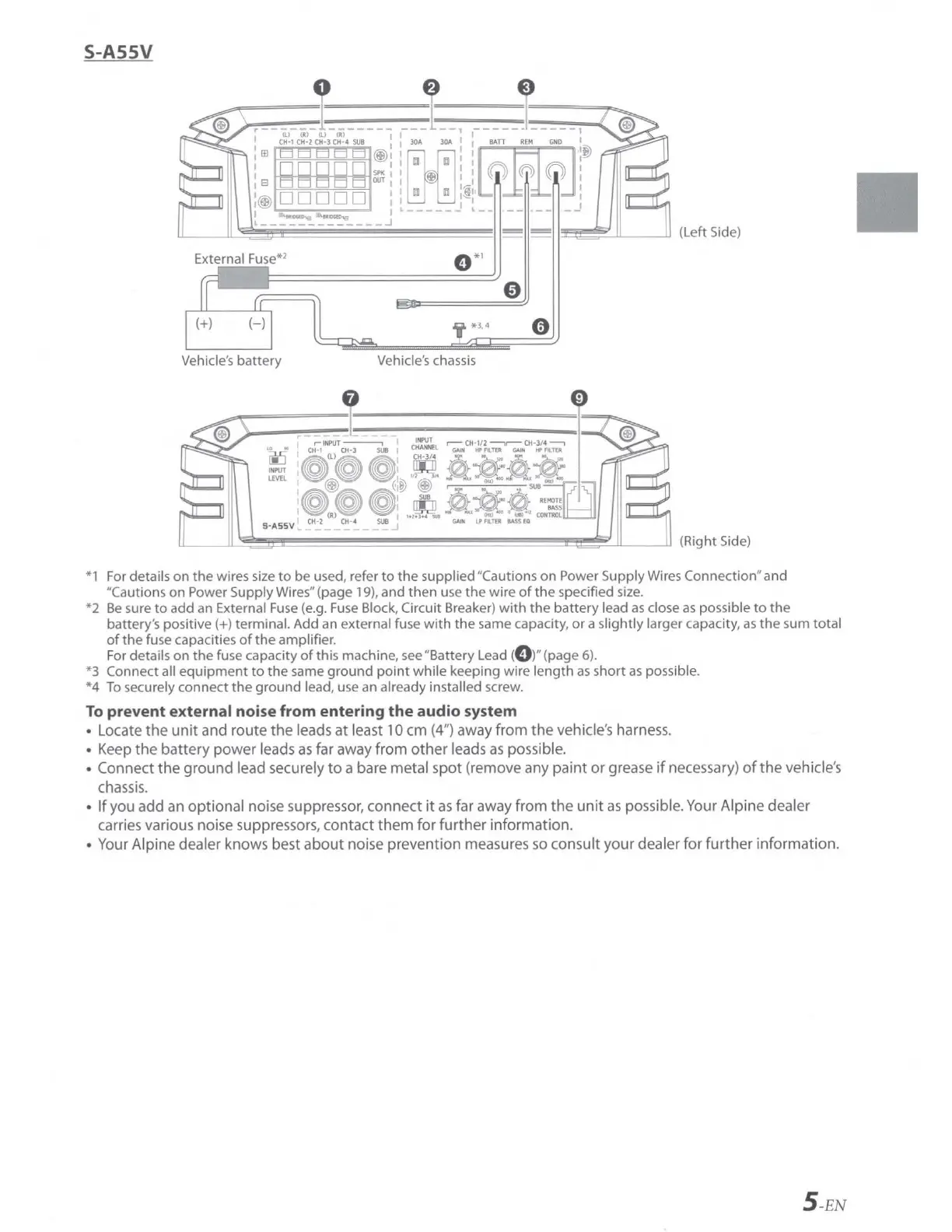

S-ASSV
(Left Side)
External Fuse*
2
0
*
3,4
0
Vehicle
's
battery
Vehicle
's
chassis
*1 For details
on
the
wires size
to
be
used, refer
to
the
supplied "Cautions
on
Power Supply Wires Connection"
and
"C
autions
on
Power Supply Wires" (page 19), and
then
use
the
wire
of
the
specified size.
*2
Be
sure
to
add
an External Fuse
(e
.g.
Fuse
Block, Circuit Breaker)
with
the
battery
lead
as
close
as
possible
to
the
battery's
positive(+)
terminal. Add an external fuse
with
the
same capacity,
or
a slightly larger capacity,
as
the
sum
total
of
the
fuse capacities
of
the
amplifier
.
For details
on
the
fuse capacity
of
this machine, see "Battery Lead (0
l"
(page 6).
*3 Connect all
equipment
to
the
same
ground
point
while
keeping
wire
l
ength
as
short
as
possible.
*4
To
securely connect
the
ground
lead, use an already installed screw.
To
prevent external noise from
enter
i
ng
the
audio system
• Locate
the
unit
and route
the
leads
at
least 10 cm (4") away
from
the
vehicle's harness.
• Keep
the
battery
power leads
as
far away
from
other
leads
as
possible.
• Connect
the
ground
lead securely
to
a bare metal
spot
(remove any
paint
or
grease
if
necessary)
of
the
vehicle's
chassis.
•
If
you add an optional noise suppressor, connect
it
as
far away
from
the
unit
as
possible. Your Alpine dealer
carries various noise suppressors, contact
them
for
further
information.
• Your Alpine dealer knows best
about
noise prevention measures
so
consult
your
dealer
for
further
information.
5 -EN
