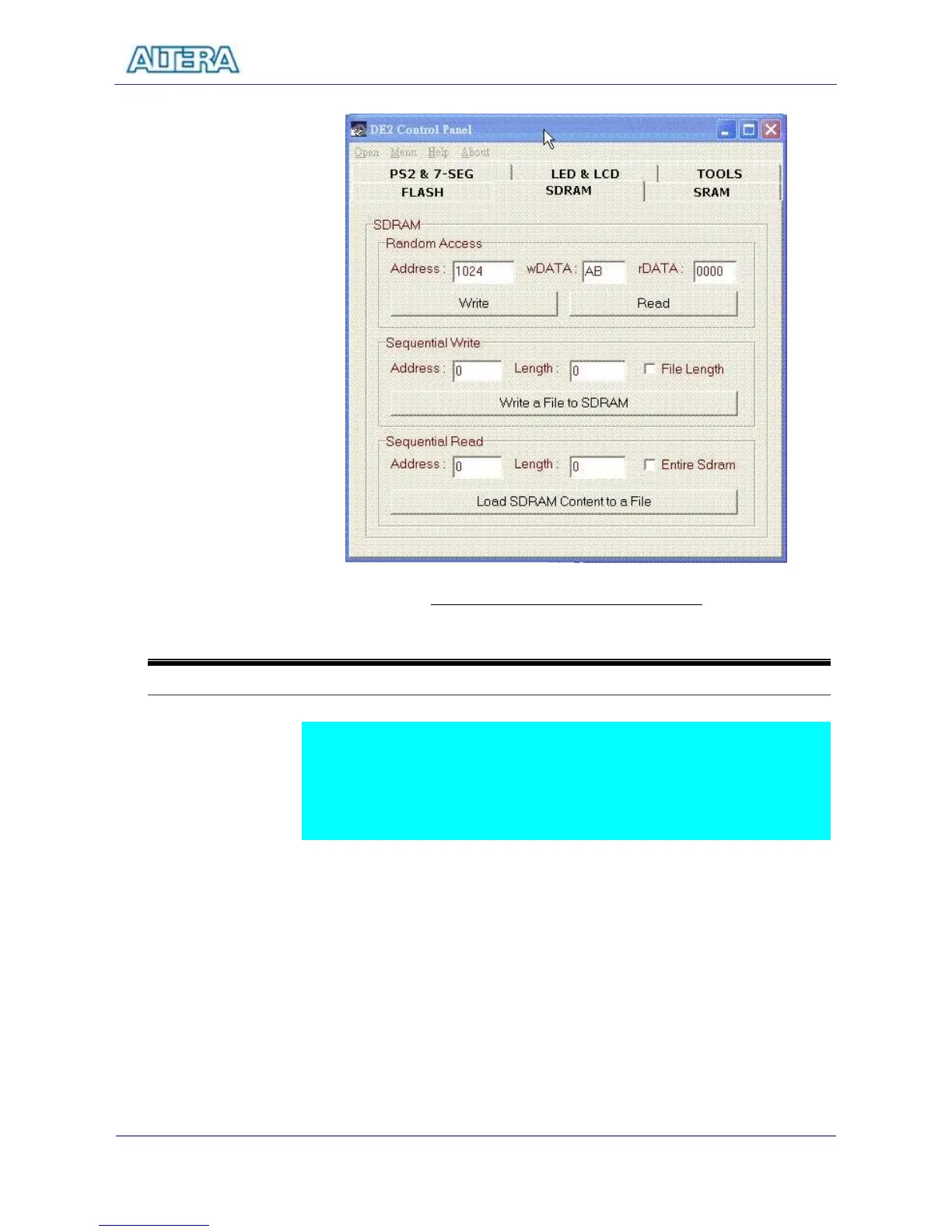

Figure 11.8. The SDRAM Controller Panel
11-5
PS/2 and 7-SEG Display Control
DE2 Control Panel gives you a control window with associated IP to allow users
to input using PS/2 keyboard; the keys pressed on the keyboard will be displayed
in the message box of the DE2 Control Panel.
DE2 Control Panel also allows users to control the 7-SEG displays on DE2.
Figure 11.9 shows the setup of the connection. Figure 11.10 shows the characters
typed in from the PS/2 keyboard are shown in the message box of the DE2
Control Panel. One the same page, users can set the numbers to be displayed on
the 7-SEG display modules using the HEX7-0 message box.
