4. INSTALLATION

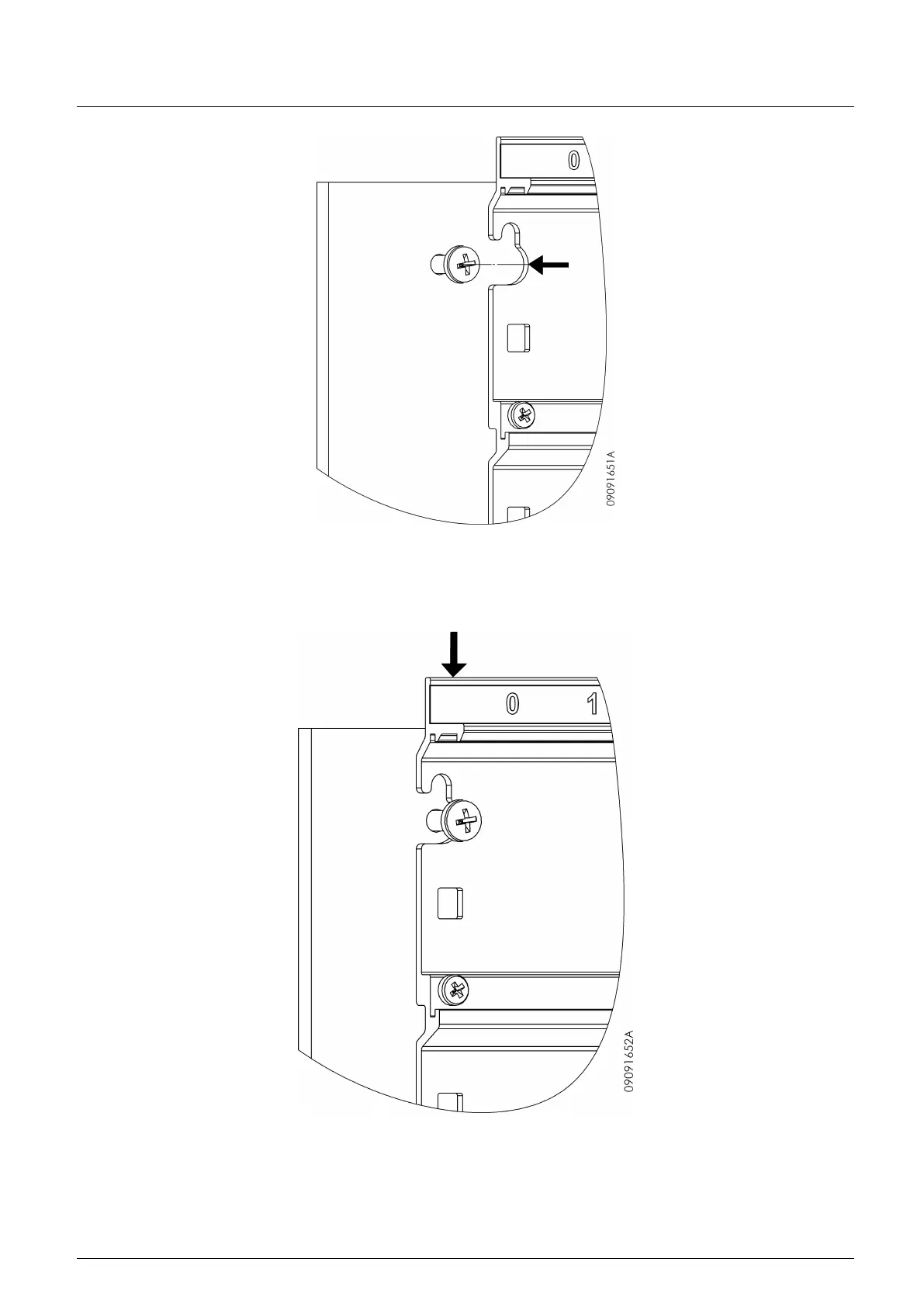

Figure 45: Rack fixation - Alignment
After that, the rack must be dragged down in order to fit the screws type 1 in the keyway, as presented on figure below.
Figure 46: Rack fixation – Keyway fitting
After the rack insertion is complete, all fixation screws must be assembled.
To finish the process, the rack side covers must be inserted as presented on figure below.
46
