4. INSTALLATION

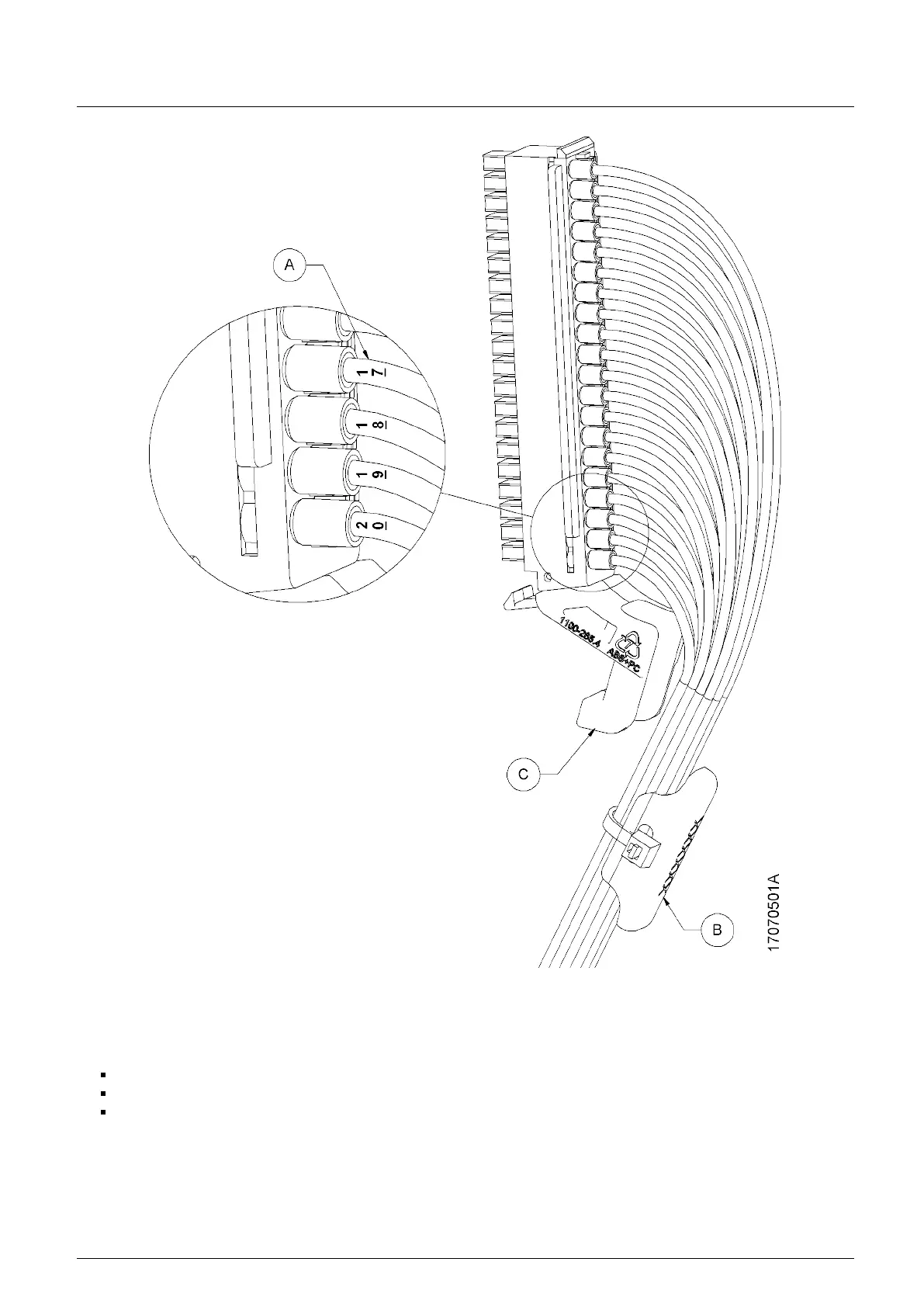

Figure 76: Nexto Jet Cabling ID and Fixation
To identify the wiring:
(A) Use numbered wiring or cables with numbered conductors
(B) Use Conexel identifier WKM 8/30 (PN: 1631910000) for cable identification, attaching the wires with plastic tie
(C) Do not attach anything to the support (wire holder) located at the bottom of the connector
4.2.7.10. Cable removal
To remove the cables from the connector block it’s recommended the use of a 3.5 mm wide screwdriver with isolated
handle. It must be inserted in the lever beside the cable while the cable is pulled off (see Figure 70 and Figure 71).
71
