4. INSTALLATION

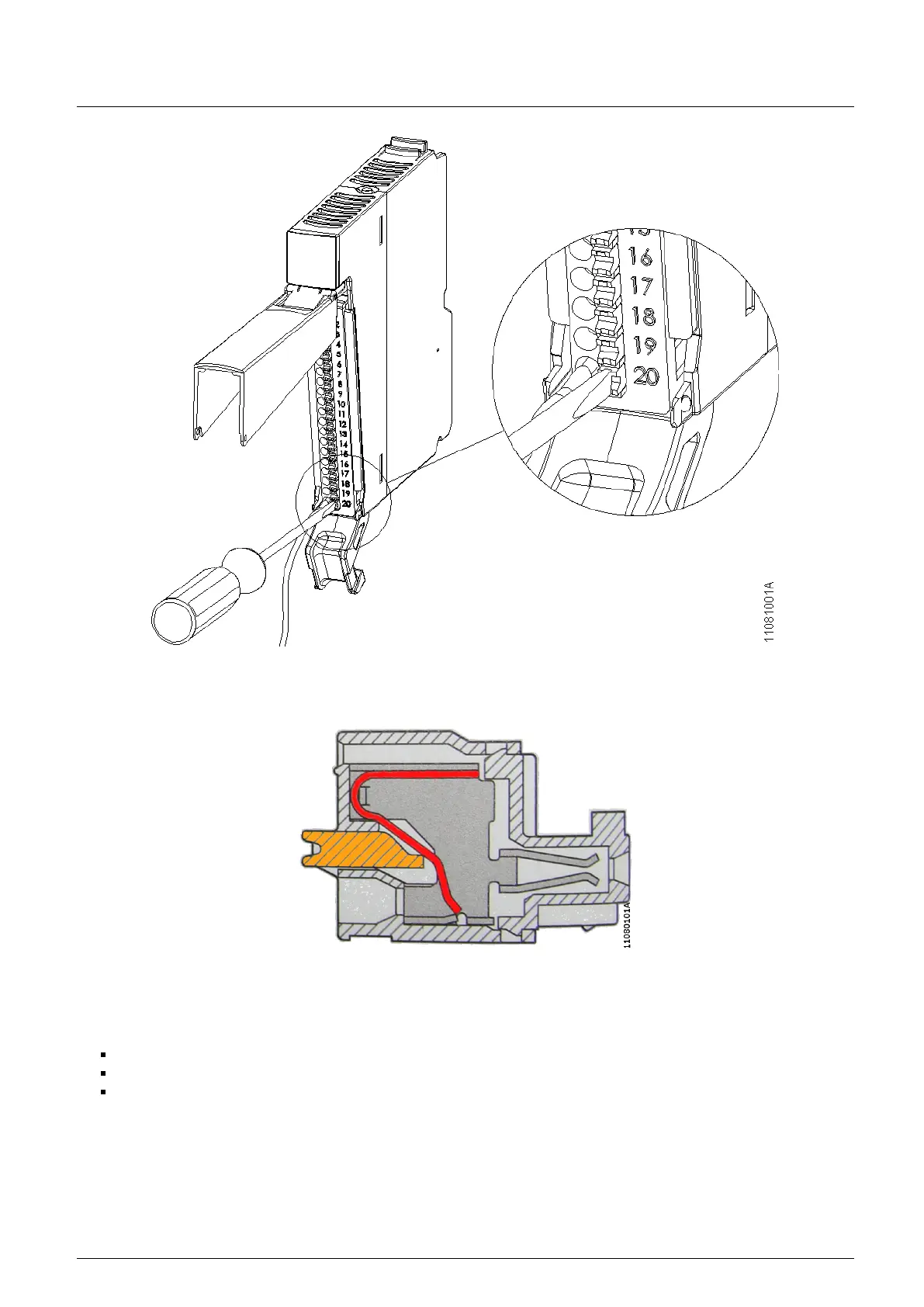

Figure 71: Spring Connection I/O Module
Figure 72: Spring Connection
To assembly the cable in the connector:
Insert the screwdriver in the terminal lever to open the spring
Insert the cable terminal in the connector
Remove the screwdriver to close the connector
4.2.7.1. Cable Insertion
In order to obtain an equal length in all cables connected to a same I/O connector block, it’s recommended the following
definition regarding the length difference which each cable beside another must obey before installation. It’s important to stress
that the biggest cable must be always the cable connected to the I/O connector pin 1.
