ALZRC DEVIL 380 FAST - Page 12

6-MAIN ROTOR ASSEMBLY
5-TRANSMISSION ASSEMBLY
CHAPTER 6 / MAIN ROTOR ASSEMBLY PAGE 13
PAGE 12 CHAPTER 5 / TRANSMISSION ASSEMBLY

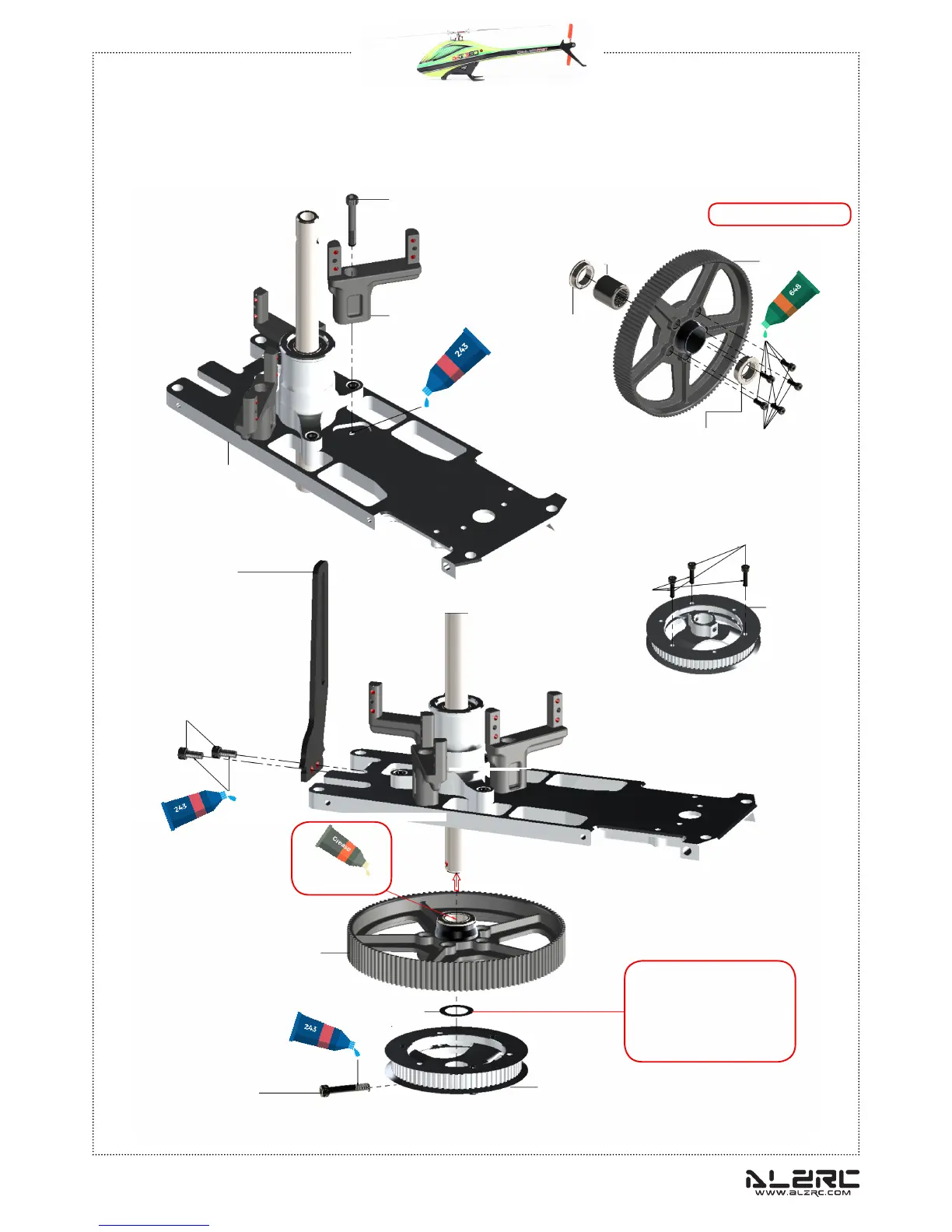

MAIN FRAME ASSEMBLY
Socket Head Cap
Screw M2.5x6
120T Pulley
Assembly
120T PULLEY ASSEMBLY
120T Pulley
One Way Bearing
Ø8xØ12x12mm
Flanged Bearing
Ø8xØ12x3,5
Flanged Bearing
Ø8xØ12x3,5
Socket Head Cap
Screw M2x5
Socket Head Cap Screw
Shouldered M2.5x18mm
Plastic Servo Support
Main Plate
Assembly
Anti-Rotation
eg: Microlube GL261
NOTE
Add or remove shims to get
approximately 0.2-0.4mm play
Shims
Ø8xØ14x0,2mm
Socket Head Cap
Shoulder M2.5x15mm
Front Tail Pulley
Assembly
FRONT TAIL PULLEY ASSEMBLY
Socket Head Cap
Screw M2x8mm
(HC008-S)
Front Tail Pulley
Assembly
Already Assembled
