ALZRC DEVIL 380 FAST - Main Rotor Assembly

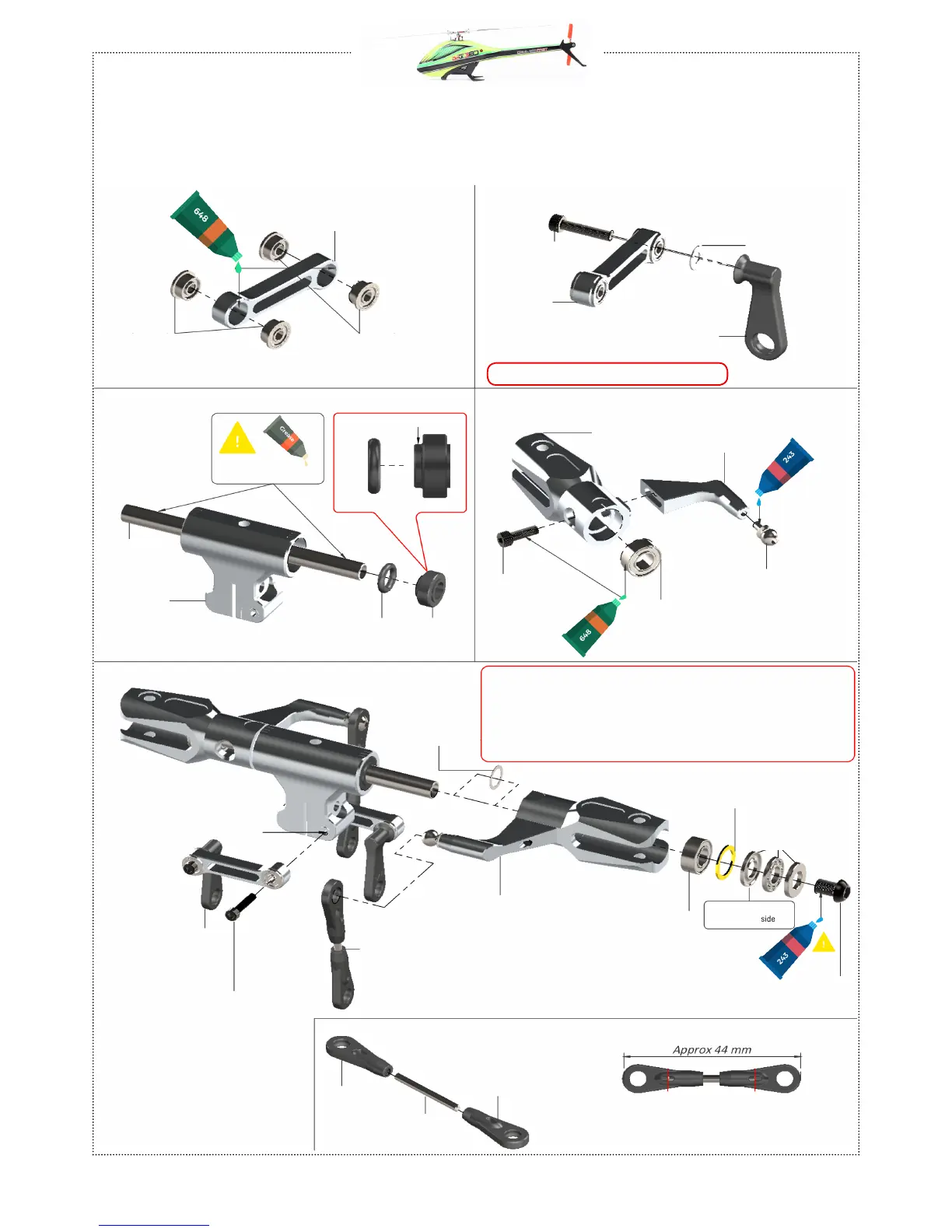

6-MAIN ROTOR ASSEMBLY
5-TRANSMISSION ASSEMBLY
CHAPTER 6 / MAIN ROTOR ASSEMBLY PAGE 13
PAGE 12 CHAPTER 5 / TRANSMISSION ASSEMBLY
Button Head Cap
Screw M4x6mm
Washer
ø 5x ø 7x0.1
Socket Head Cap
Screw M2x10mm
Radius Arm
Flanged Bearing
ø 2x ø 5x2.5mm
Flanged Bearing
ø 2x ø 5x2.5mm
Radius Plastic
Arm Assembly
RADIUS ARM ASSEMBLY ... X 2
Radius Arm
Assembly
NOTE: Tighten with care, the arm must move freely.
RADIUS PLASTIC ARM ASSEMBLY ... X 2
Washer
ø 2.1x ø 5 x0.5mm
Radius Plastic Arm
NOTE:
eg: Microlube GL261
Inside:
Main Spindle
Center Hub
Oring
Damper
CENTER HUB ASSEMBLY
MAIN BLADE GRIP ASSEMBLY ....X2
Main Blade Grip
Socket Head Cap
Screw M2.5x8mm
Bearing
ø 5x ø 10x4mm
Uniball M2
HEAD HPS ASSEMLY
Bearing
ø 10x ø 19x5mm
Main Blade Grip
Assembly
Washer
ø 7.5x ø 10x0.5
Linkage Rod A
Socket Head Cap
Screw M2x10mm
NOTE:
We recommend assembling without shims for sport flying. However, for 3D flight or
high RPM, the best setup is assembling with at least one shim between the damper
and bearing.
After approximately 20/30 flights, please manually check the head dampening, you
can add one 0.1mm shim (HC450) if the dampening feels loose.
NOTE:
Larger ID inside
LINKAGE ROD A ASSEMBLY .....X2
Plastic Ball Link
Linkage Rod
M2x22mm
Plastic Ball Link
(Initial length for the rods from the
swashplate to the Blade Grip)
