ALZRC DEVIL 380 FAST - Tail Servo Assembly

9-TAIL SERVO ASSEMBLY
8-INSTALLATION OF SWASHPLATE SERVOS
CHAPTER 9 / TAIL SERVO ASSEMBLY PAGE 17
PAGE 16 CHAPTER 8 / INSTALLATION OF SWASHPLATE SERVOS

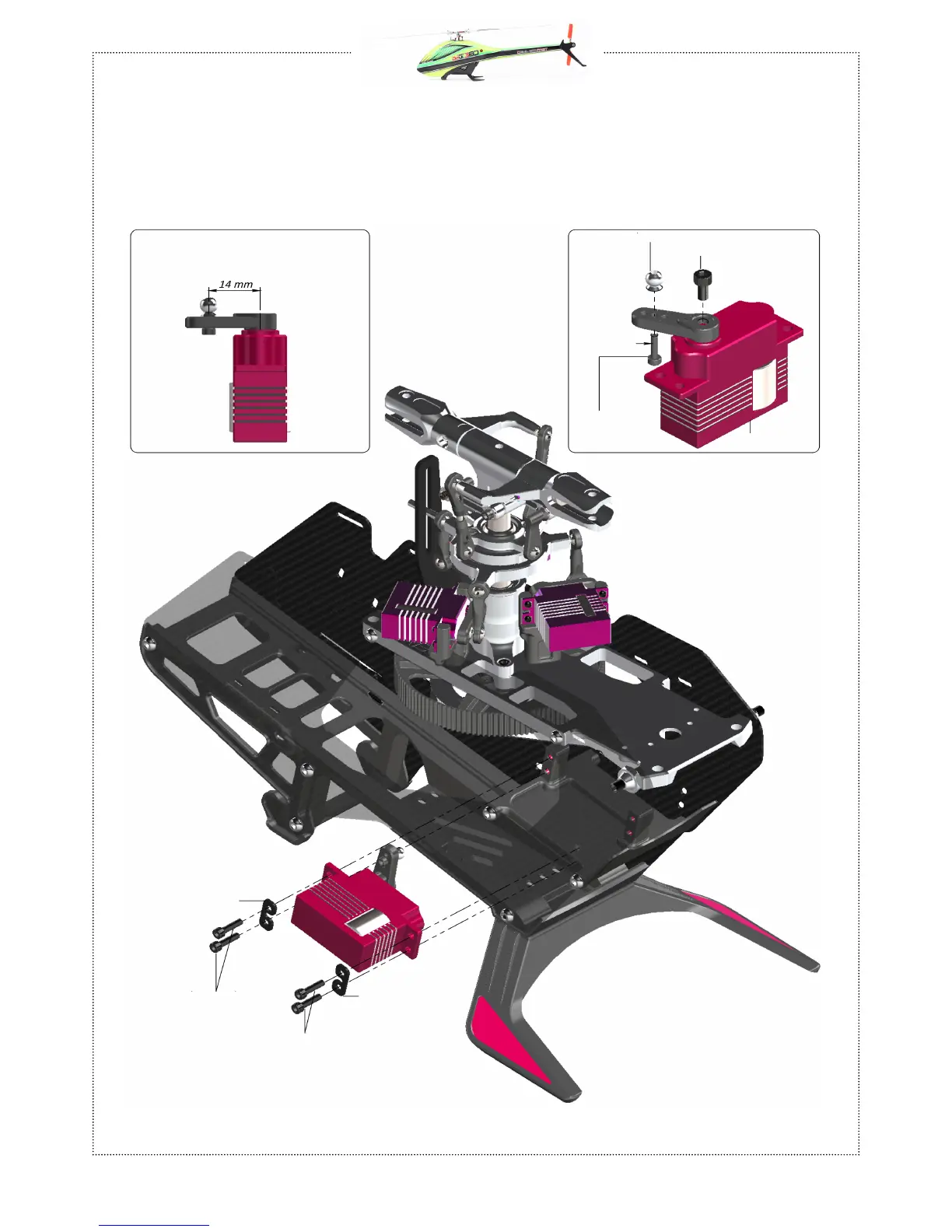

Servo Spacer
Socket Head Cap M3x6mm
Uniball M2 5H6
Tail servo
The distance between the servo spline and the ball
must be between 13-15 mm. You can use the
ALZRC servo horn.
Socket Head
Cap M2x8mm
Socket Head Cap
Screw M2.5x10mm
Servo Spacer
Socket Head Cap
Screw M2.5x10mm
