ALZRC DEVIL 380 FAST - Tail Assembly

13-TAIL ASSEMBLY
12-INSTALLATION OF FLYBARLESS UNIT AND RX
CHAPTER 13 / TAIL ASSEMBLY PAGE 23
PAGE 22 CHAPTER 12 / INSTALLATION OF FLYBARLESS UNIT AND RX

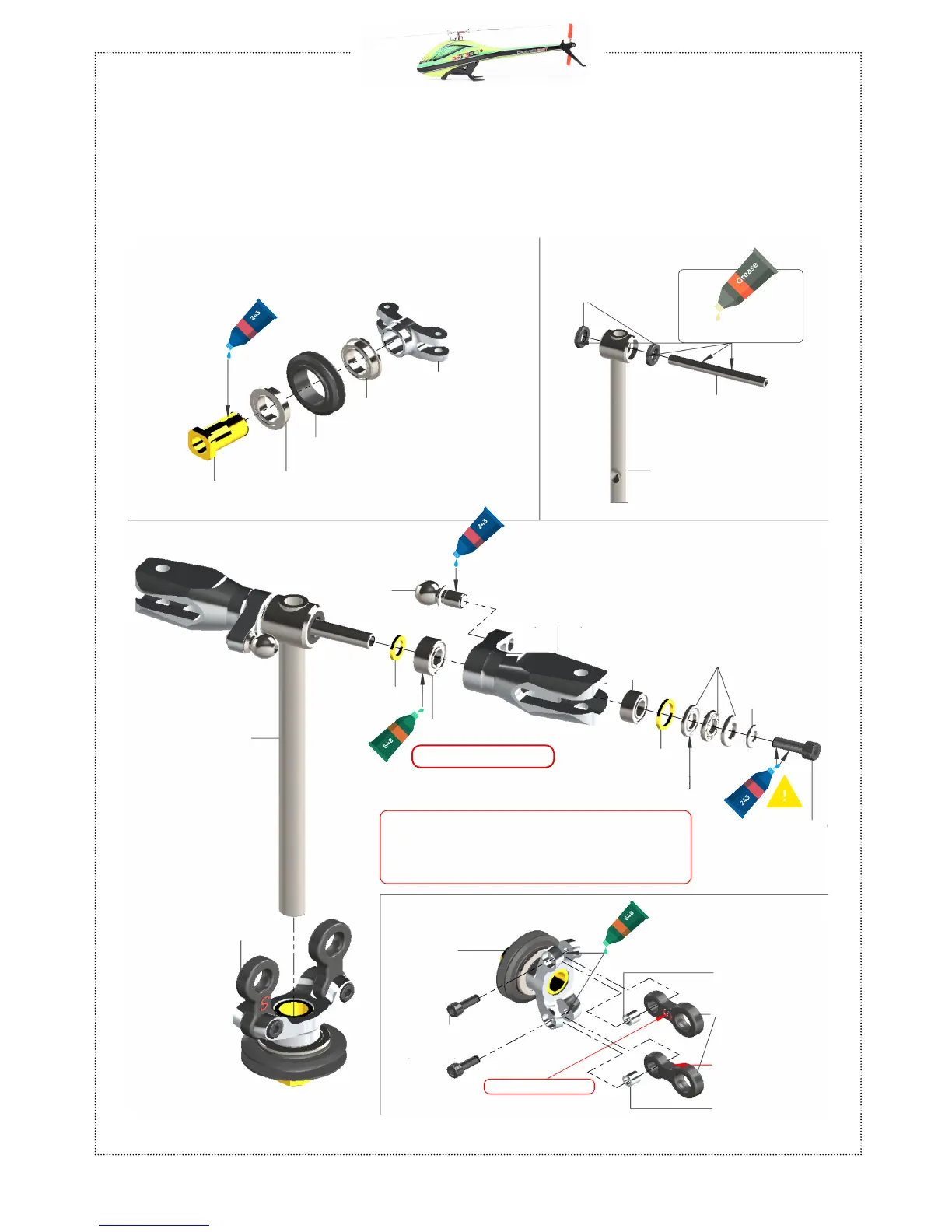

TAIL PITCH SLIDER ASSEMBLY
Already Assembled.
eg: Microlube GL261
Tail Pitch Slider 03
Tail Spindle
Tail Damper
Flanged Bearing
ø 7x ø 11x3mm
TAIL ROTOR HUB ASSEMBLY
Tail Pitch Slider 01
Flanged Bearing
ø 7x ø 11x3mm
(HC416-S)
Tail Pitch Slider 02
Tail Shaft
Tail Rotor Hub
Assembly
Bearing
ø 3x ø 6x2.5
Already Assembled
Thrust Bearing
ø 3x ø 6x2.5
Uniball M3
Tail Blade Grip
Socket Head Cap
Screw M2x6mm
Spacer
ø 2x ø 4.5x0.5
Washer
ø 3x ø 4.75x0.5
Bearing
ø 3x ø 7x3
NOTE : It is normal for the tail to feel a bit tight after initial assembly
as the tail spindle preload is usually high when the helicopter is brand
new. The preload will loosen up after 2-5 flights allowing the system
to become smooth.
Tail Pitch Slider Link
Assembly
TAIL PITCH SLIDER LINK ASSEMBLY
Tail Pitch Slider
Assembly
Spacer
ø 2x ø 3x3mm
Socket Head Cap
Screw M2x6mm
NOTE : S = Left Side
Tail Pitch Slider Link
Spacer
ø 2x ø 3x3mm
NOTE : S = Right Side
Already Assembled
