ALZRC DEVIL 380 FAST - Transmission Assembly

5-TRANSMISSION ASSEMBLY
4-CARBON FRAME
CHAPTER 5 / TRANSMISSION ASSEMBLY PAGE 11
PAGE 10 CHAPTER 4 / CARBON FRAME
SUGGESTION
Shims Ø8xØ12x0,1mm
(HC462-S)
Tighten the three screw M2.5.
After tightening, check the
axial play of the main shaft. It
is possible to reduce any axial play
by adding shims.
IMPORTANT: Very carefully
check to make sure you can
turn the main shaft freely.
If you feel too much friction,
you have used too many
shims, you can remove a shim until
the shaft turns freely.

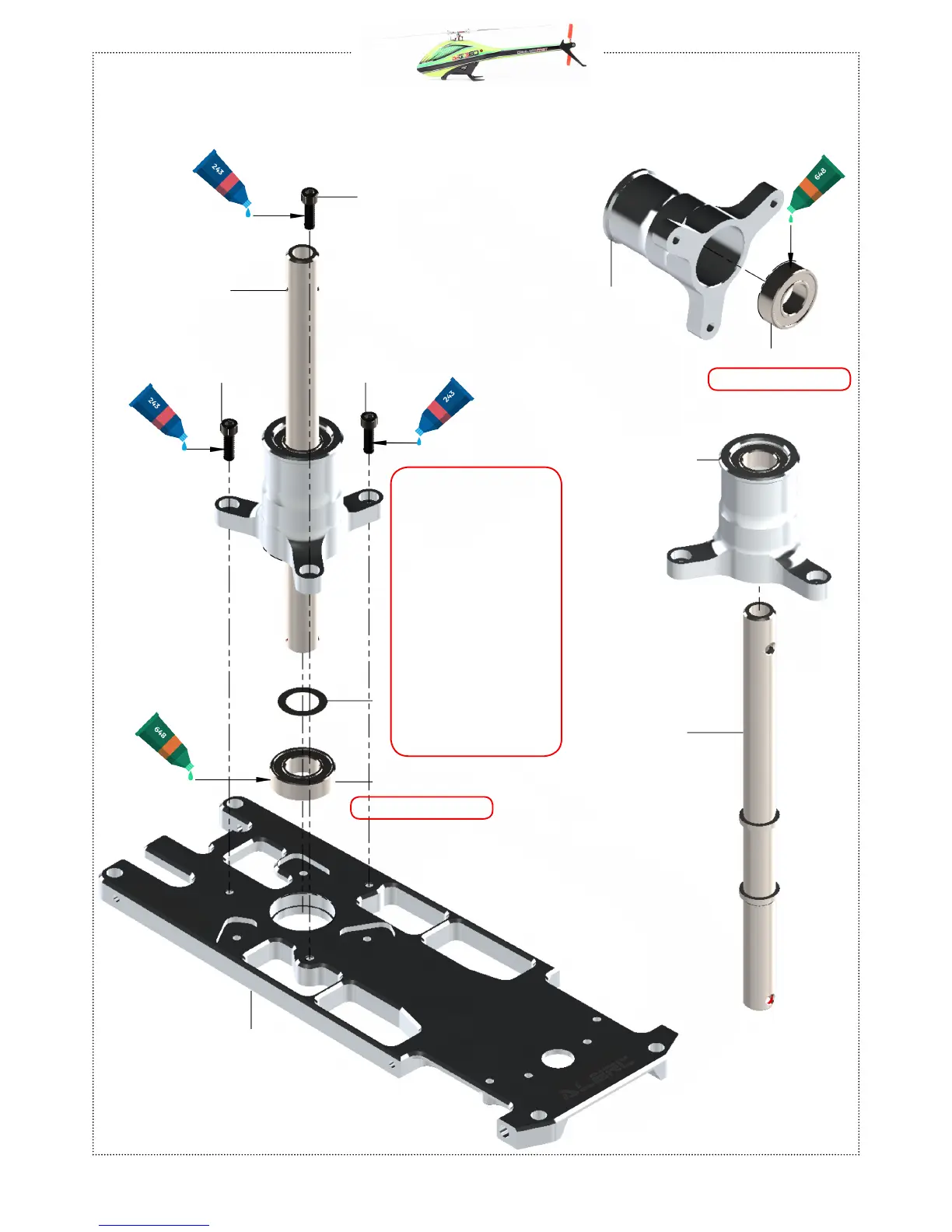

Main Shaft
Main Plate
Main Shaft Assembly
Main Shaft
Support
Socket Head Cap
Screw M2.5x8mm
Main Shaft Support
Assembly
Socket Head Cap
Screw M2.5x8mm
Socket Head Cap
Screw M2.5x8mm
Bearing Ø8xØ16x5mm
MAIN SHAFT
ASSEMBLY
MAIN SHAFT SUPPORT ASSEMBLY
Bearing Ø8xØ16x5mm
Already Assembled
Already Assembled
