PAGE 22 CHAPTER 12 / INSTALLATION OF FLYBARLESS UNIT AND RX
FLYBARLESS CONTROL UNIT AND RX INSTALLATION
We suggest the use of a “single unit” FBL system (all in one type unit).
This allows for easier wire routing considering the small size of this helicopter.

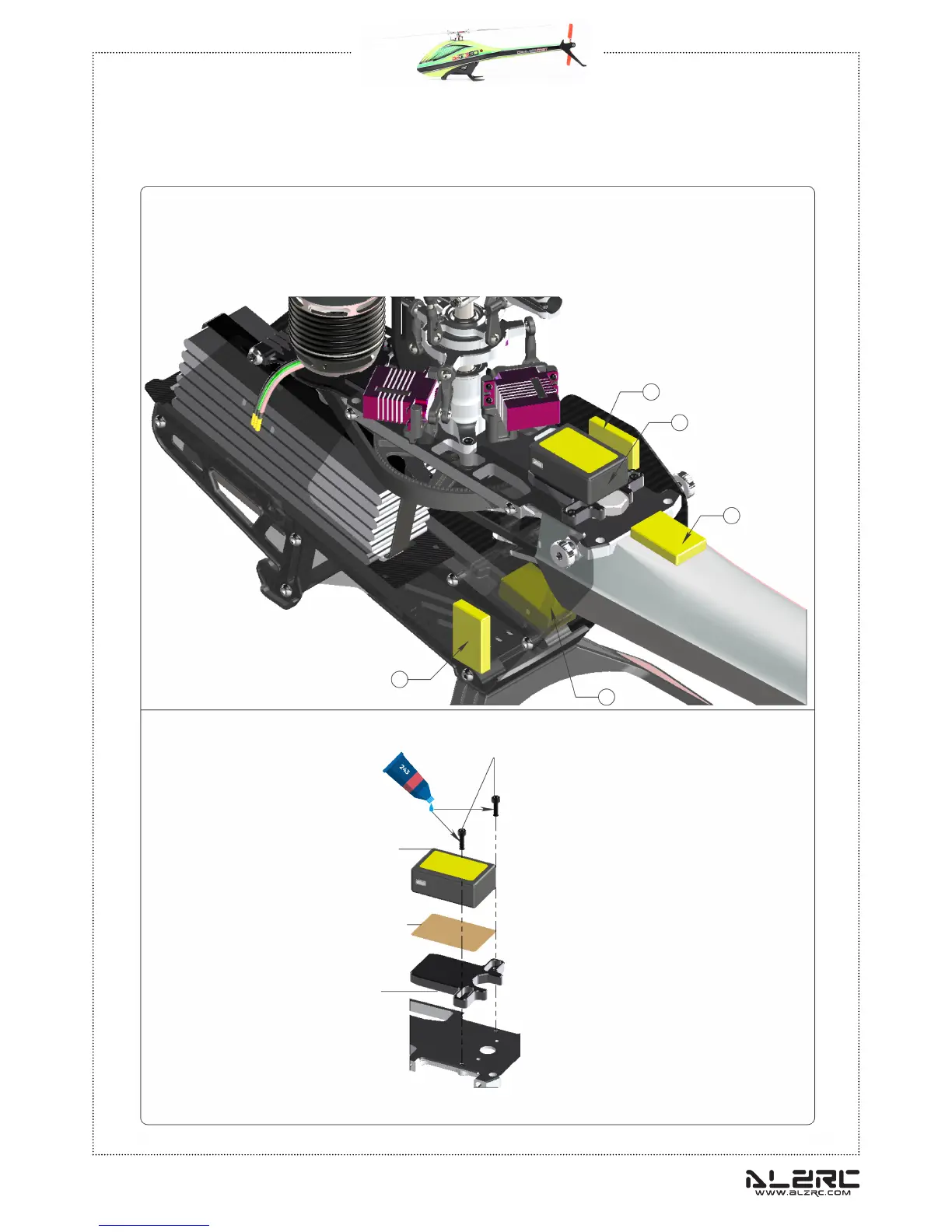

Position 1 can be used to install the FBL unit.
Position 2 and 3 can be used to install a small RX unit, like a Spektrum satellite.
Position 4 and 5 can be used to install RX uni
4
2
1
3
5
With larger units, the nylon nut can make it difficult
to connect the wires to the unit, in this
case it is recommended to use the aluminum sup-
port H0564.
With smaller units, the unit can be installed directly
onto the main plate.
This facilitates boom removal in the future if
necessary.
We recommend using some type of adhesive to pre-
vent the servo wires and connections
from coming unplugged from the receiver or FBL
unit. You can use hot glue for this purpose.
Socket Head Cap
Screw M2.5x8mm
FBL Unit
Doublesided
Tape
FBL
Support
To Next Page
