ESC INSTALLATION
The speed controller (ESC) is installed in the front of the helicopter.

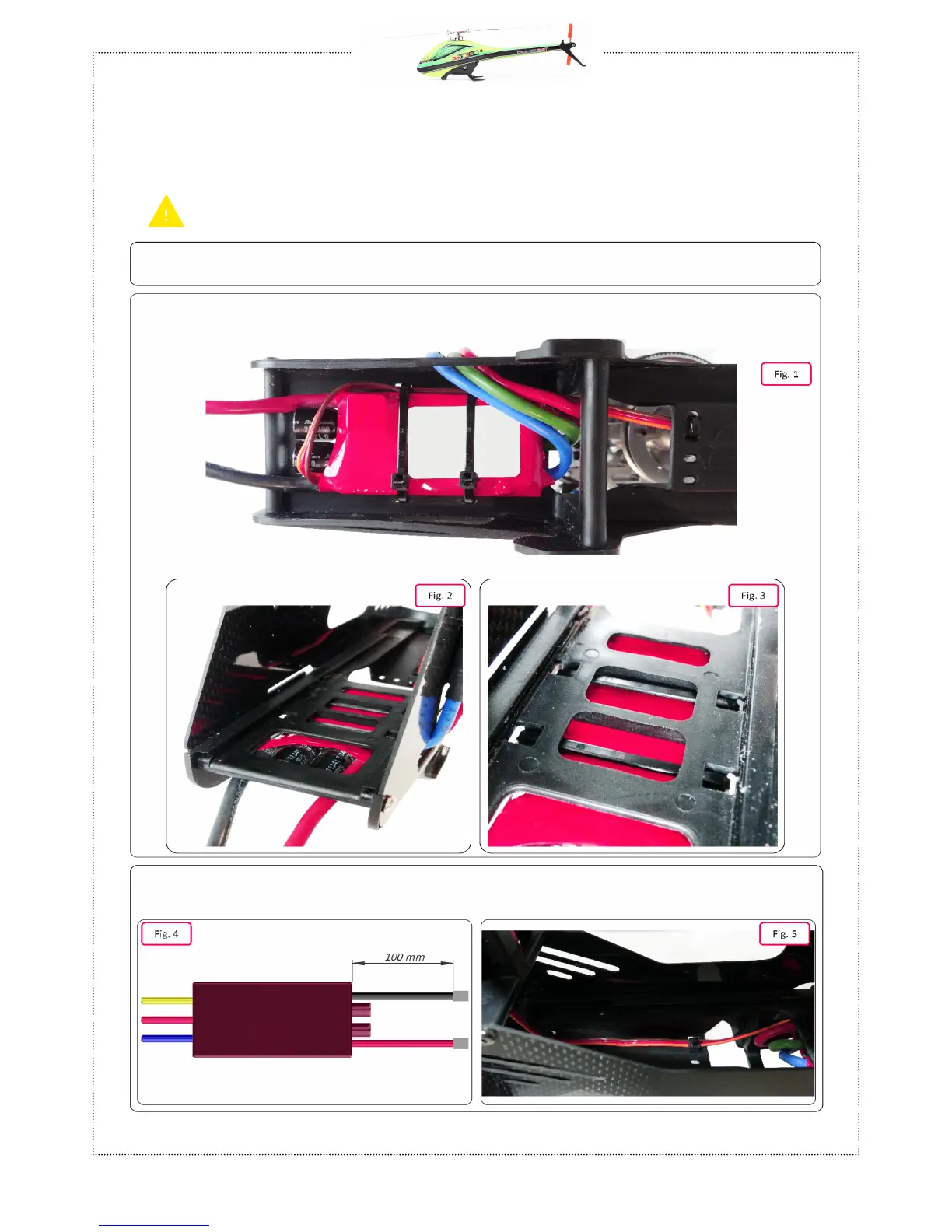

Figure 1 and Figure 2 show the mounting area.
NOTE
: DE-BURR THE SIDE FRAMES
We recommend de-burring the edges of the carbon parts in areas where electrical wires run.(See Page 4).
Figure 3: Shows the correct use of the Zip-Ties
Figure 4: Shows the suggested length of the battery wire. This length is also compatible with the quick battery connector upgrade.
Figure 5: Shows the wire that connects the ESC to the receiver or flybarless control system.
To Next Page
