14-INSTALLATION OF THE BOOM, CANOPY
14-INSTALLATION OF THE BOOM, CANOPY

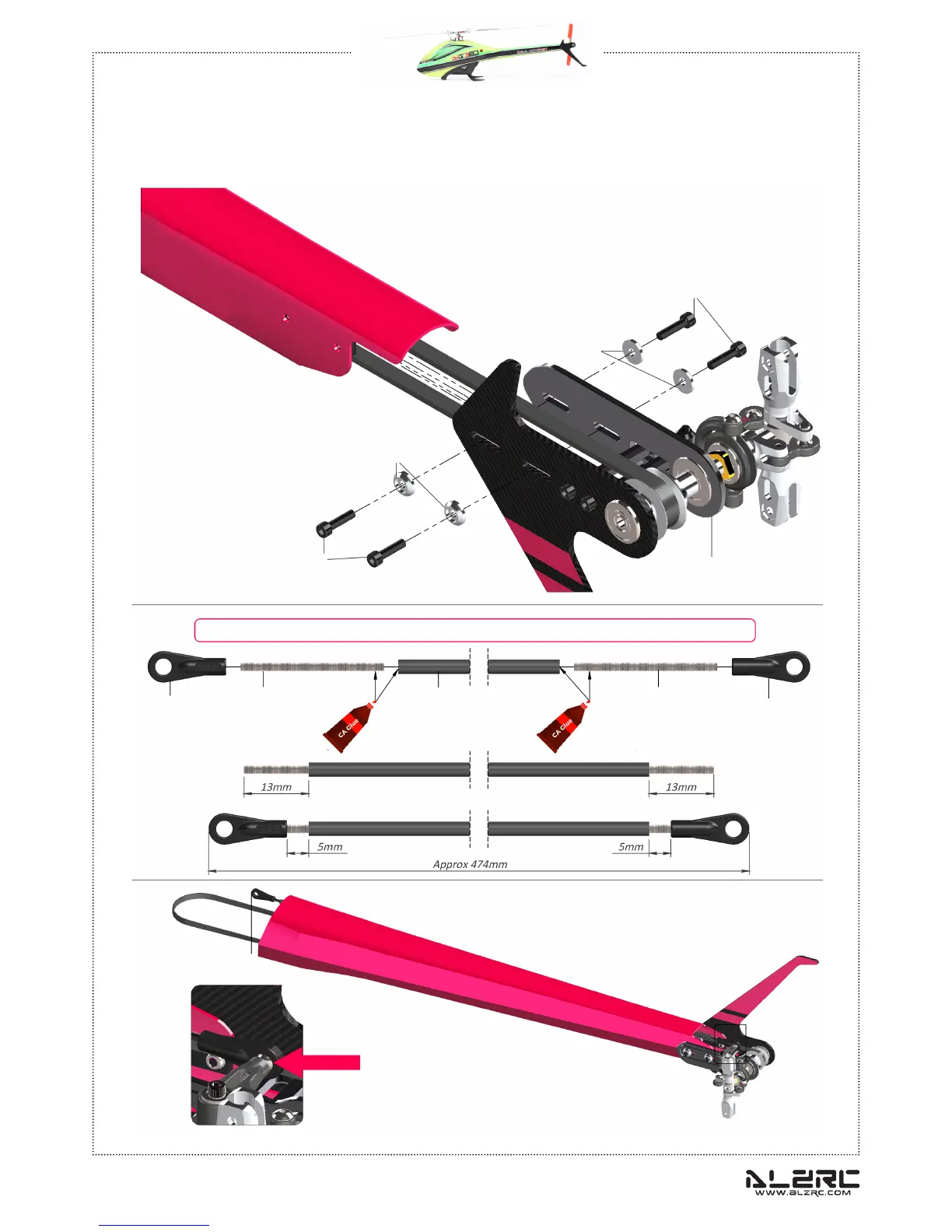

CHAPTER 14 / INSTALLATION OF THE BOOM, CANOPY PAGE 27
PAGE 26 CHAPTER 14 / INSTALLATION OF THE BOOM, CANOPY
Finishing
Washer M2.5
Tail System
Assembly
Finishing
Washer M2.5
Socket Head Cap
Screw M2.5x10mm
Plastic
Ball Link
Carbon Road
Assembly
Threaded Rod
M2.5x40mm
A
Socket Head Cap
Screw M2.5x10mm
NOTE : Please allow plenty of time for the glue to cure before inserting plastic ball link onto the threaded rod.
Plastic
Ball Link
Threaded Rod
M2.5x40mm
Detail A
