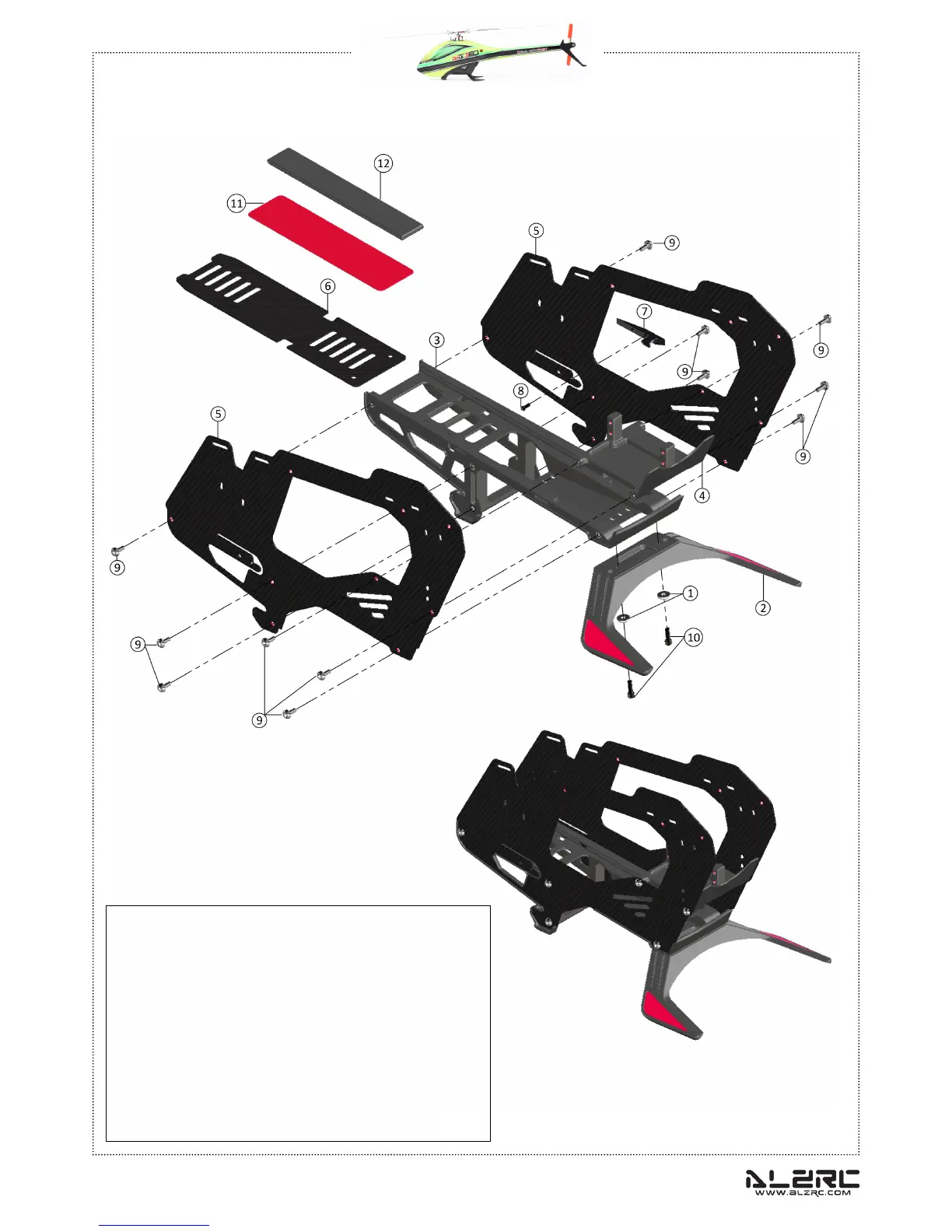

PAGE 32 CHAPTER 18 / EXPLODED VIEW, CARBON FRAME
Main Frame
POS Name Specification Quantity
1 Finishing Washers M2. Aluminum 2
2 Plastic Lading Gear Plastic 1
3 Plastic Battery Support Plastic 1
4 Tail Servo Support Plastic 1
5 Main Frame Carbon Fiber 2
6 Battery Tray Support Carbon Fiber 1
7 Battery Aluminum Block Aluminum 1
8 Button Head Cap Screws M2x5mm 1
9 Button Head Cap Screws M2.5x6mm 12
10 Socket Head Cap Screws M2.5x10mm 2
11 Double Sided Tape 1
12 Battery Strap 1
