ALZRC DEVIL 380 FAST - Page 33

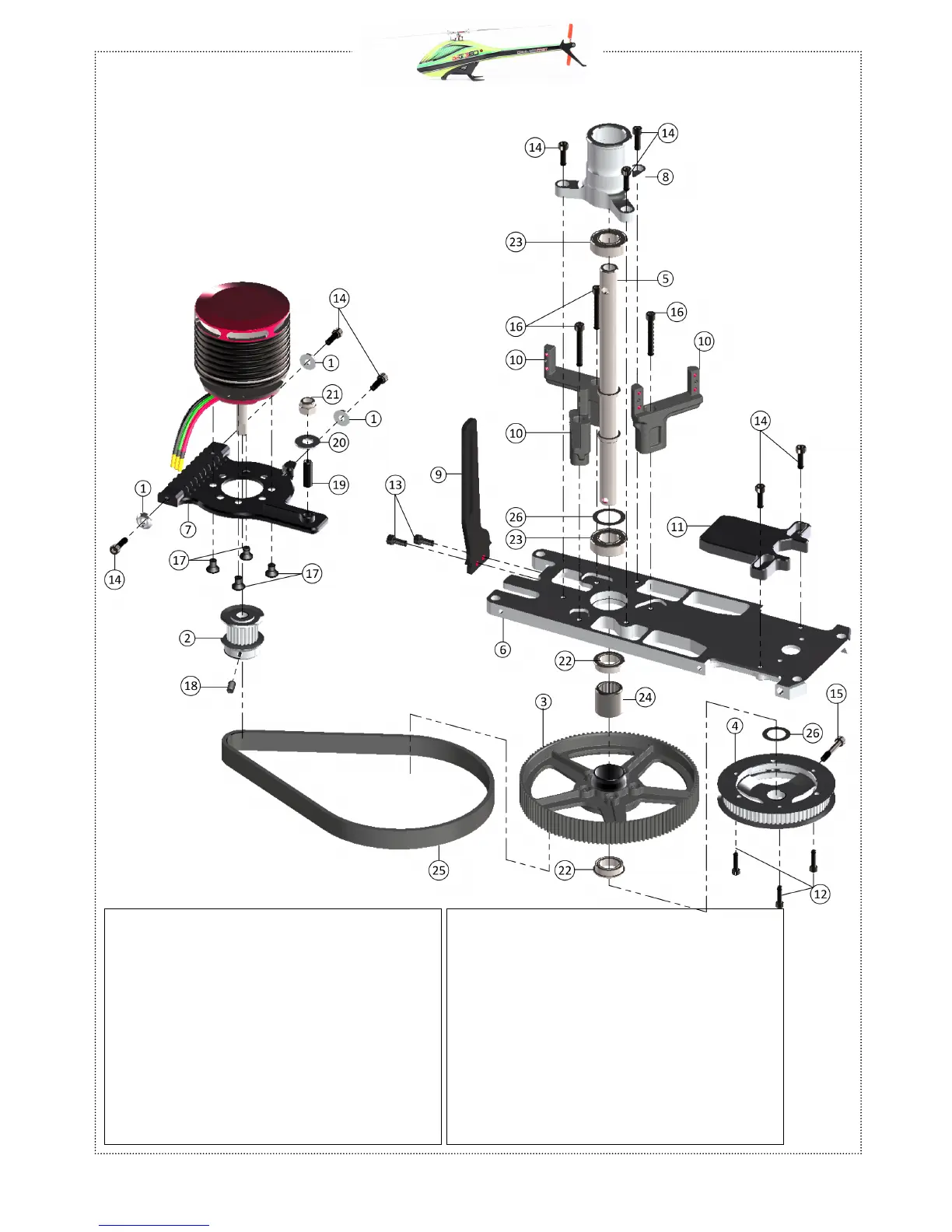

18-EXPLODED VIEW, TRANSMISSION ASSEMBLY
18-EXPLODED VIEW, CARBON FRAME
CHAPTER 18 / EXPLODED VIEW, TRANSMISSION ASSEMBLY PAGE 33
PAGE 32 CHAPTER 18 / EXPLODED VIEW, CARBON FRAME
Transmission Assembley
POS Name Specification Quantity
1 Finishing Washer M2.5 Aluminum 3
2 21T Motor Pulley ASM Aluminum 1
3 120T Main Pulley Aluminum 1
4 Front Tail Pulley ASM Aluminum 1
5 Main Shaft Steel 1
6 Main Plate Aluminum 1
7 Motor Support Aluminum 1
8 Main Shaft Support Steel 1
9 CF Anti-Rotation Guide Carbon Fiber 1
10 Plastic Servo Support Plastic 3
11 Flybarless Support Aluminum 1
12 Socket Head Cap Screws M2x8mm 3
13 Socket Head Cap Screws M2.5x6mm 2
Transmission Assembley
POS Name Specification Quantity
14 Socket Head Cap Screws M2.5x8mm 8
15 Head Cap Screws Shouldered M2.5x15mm 1
16 Socket Head Cap Screws M2.5x18mm 3
17 Flat Head Cap Screws M3x5mm 4
18 Cone Point Set Screws M3x6mm 1
19 Cone Point Set Screws M4x12mm 1
20 Washers ø 4.3x ø 11x1mm 1
21 Metrix Nylon Nut M4 1
22 Flanged Bearing ø 8x ø 12x3.5mm 1
23 Bearing ø 8x ø 16x5mm 2
24 One Way Bearing ø 8x ø 12x12mm 2
25 Motor Belt 304-2GT-09 1
26 Shim Washers ø 8x ø 12x0.2mm 2
