ALZRC DEVIL 380 FAST - Assembling the Modules

8-INSTALLATION OF SWASHPLATE SERVOS
7-ASSEMBLING THE MODULES
CHAPTER 8 / INSTALLATION OF SWASHPLATE SERVOS PAGE 15
PAGE 14 CHAPTER 7 / ASSEMBLING THE MODULES

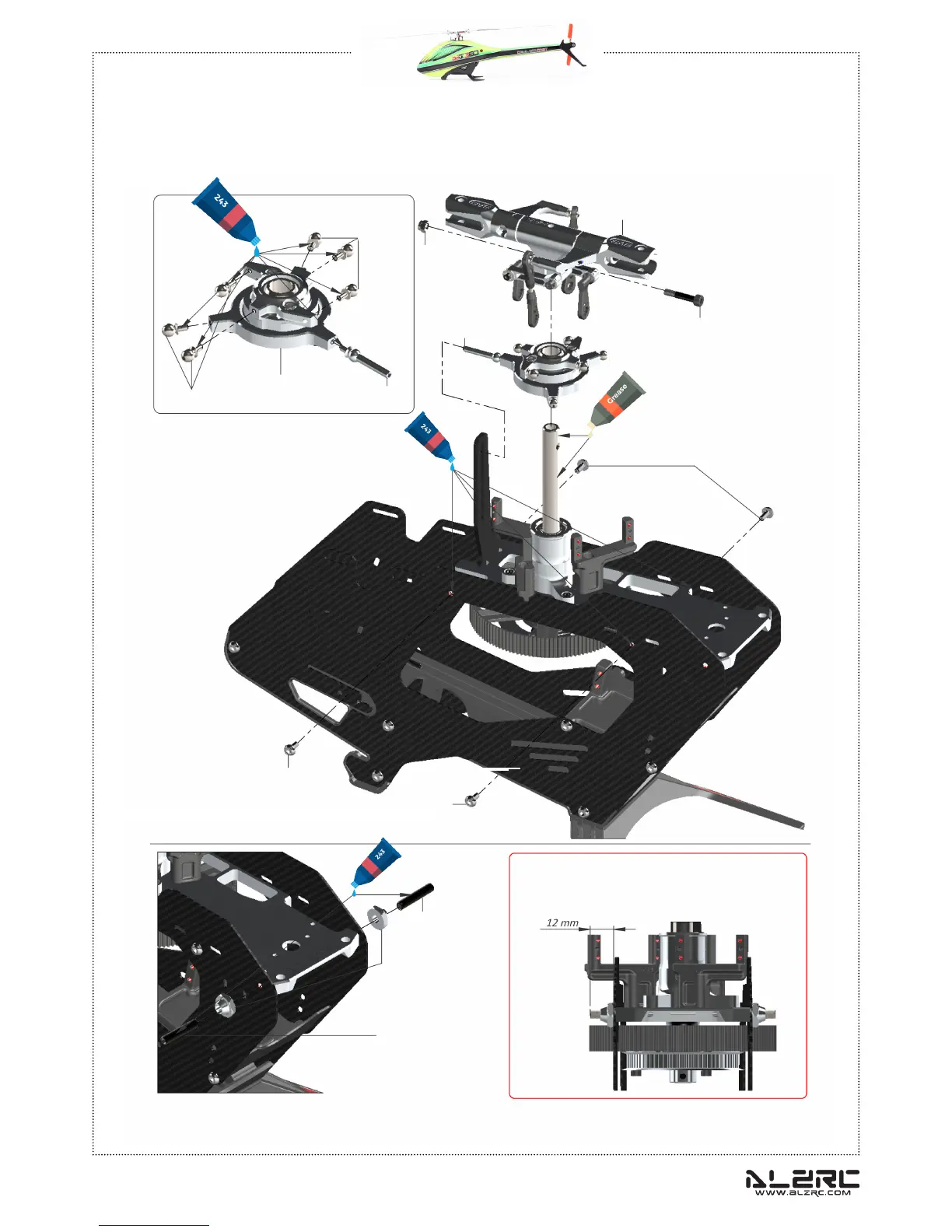

SWASHPLATE ASSEMLY
Button Head Cap
Special M2.5x6mm
Uniball M2
Head Assembly
Metric Hex
Nylon Nuts M3
Swashplate
Assemly
Cup Point Set
Screws M4x20mm
Uniball M2
Uniball M2
Socket Head Cap
Shouldered M3x16mm
Swashplate
Assembly
Button Head Cap
Special M2.5x6mm
Button Head Cap
Special M2.5x6mm
Cup Point Set
Screws M4x20mm
NOTE: Keep the distance between the end of the canopy
retainer H0542 and the frame at approximately 12mm.
