ALZRC DEVIL 380 FAST - Page 25

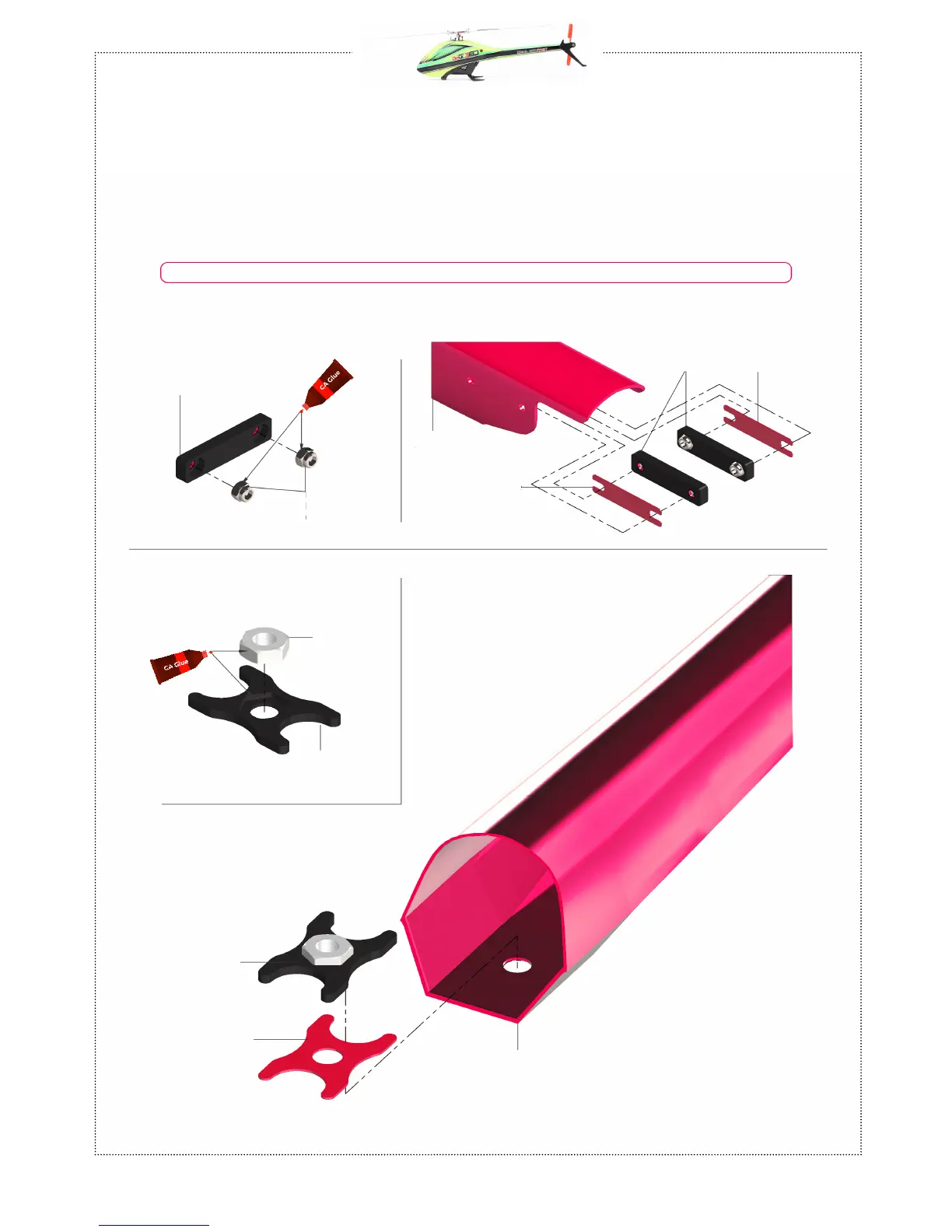

13-TAIL ASSEMBLY
13-TAIL ASSEMBLY
CHAPTER 13 / TAIL ASSEMBLY PAGE 25
PAGE 24 CHAPTER 13 / TAIL ASSEMBLY
LOCKING ELEMENT TAIL ASSEMBLY .... X 2
Red / White Tail Boom
Locking Element
Tail Assembly
TAIL BOOM ASSEMBLY
Metric Hex
Nylon Nut M2.5
Locking Element Tail
Already Assembled
Metrix Nylon
Nut M8
Double
Sided Tape
M8 Plastic /
Carbon Block
NOTE : We suggest to clean the sticking surface with sand paper.
TAIL PITCH SLIDER LINK ASSEMBLY
Double Sided Tape
Red/White Tail Boom
Yellow/White Tail Boom
Double
Sided Tape
M8 PLASTIC / CARBON BLOCK ASSEMBLY
M8 Plastic /
Carbon Block
