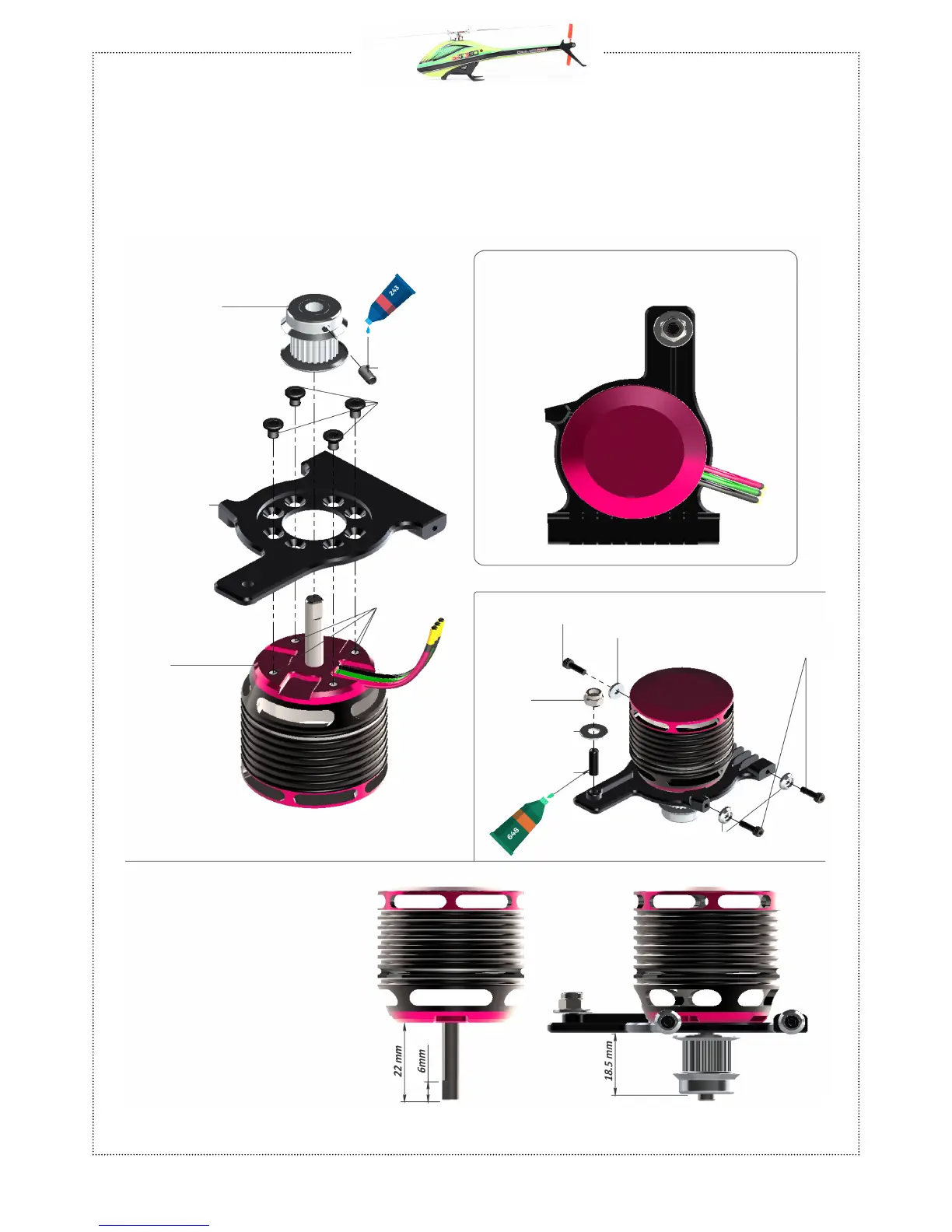

Cone Point Set
Screws M3x6mm
Motor Pulley 21T
Motor Support
Flat Head Socket
Cap M3x5mm
Motor
NOTE
:
Correct position for the motor wires.
Socket Head Cap
Screws M2.5x8mm
Metrix Hex
Nylon Nut M4
Finishing Washer M2.5
Cone Point Set
Screws M4x12mm
Socket Head Cap
Screws M2.5x8mm
Finishing Washer M2.5
Washer
ø 4.3x ø 11x1mm
NOTE
:
To maximize space for the batteries, it is
advisable to shorten the motor shaft.
Follow the dimensions given in this drawing.
For the cut, you can use an electric tool like a
“Dremel” with a cutoff disc.
Additionally, ensure the motor shaft has an
appropriate ‚flat‘ for one of the set screws.
