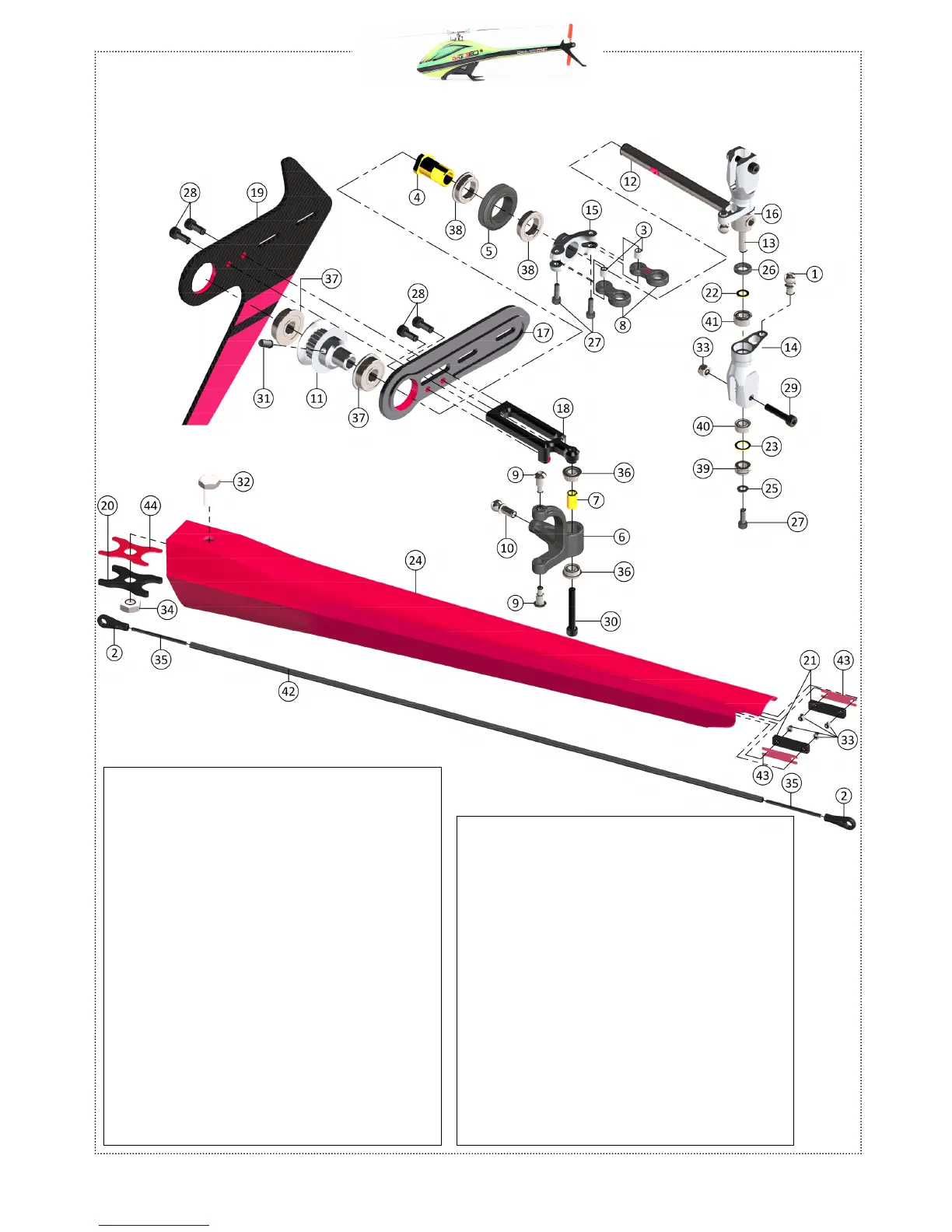

18-EXPLODED VIEW, TAIL SYSTEM
18-EXPLODED VIEW, HEAD SYSTEM
CHAPTER 18 / EXPLODED VIEW, TAIL SYSTEM PAGE 35
PAGE 34 CHAPTER 18 / EXPLODED VIEW, HEAD SYSTEM
Tail System
POS Name Specification Quantity
1 Uniball M3 ø 5 H6 2
2 Plastic Ball Link M2,5 2
3 Grip Link Bushing Brass 2
4 Tail Pitch Slider 01 Aluminum 1
5 Tail Pitch Slider 02 Aluminum 1
6 Bell Crank Lever Plastic 1
7 Spacer Arm ø 2.5ø 4x6.3 1
8 Tail Pitch Slider Link Plastic 2
9 Tail Pin Steel 2
10 Uniball M3 ø 5 H11.5 1
11 21T Tail Pulley Aluminum 1
12 Tail Shaft Steel 1
13 Tail Spindle Steel 1
14 Tail Blade Grip Aluminum 2
15 Tail Slider Aluminum 1
16 Tail Hub Steel 1
17 Tail Side Plate Aluminum 1
18 Cros Tail Case Aluminum 1
19 Vertical Fin Carbon Fiber 1
20 CF Nut M8 Block Carbon Fiber / Plastic 1
21 Locking Element Tail Carbon Fiber 2
22 Washer ø 3 ø 4.75x0.5 2
23 Washer ø 4.5 ø5.9x0.5 2
24 Red/White Tail Boom Carbon Fiber 1
Transmission Assembley
POS Name Specification Quantity
25 Washer ø 2 ø 4.5x0.5 2
26 Tail Damper Derlin 2
27 Socket Head Cap Screws M2 x 6mm 4
28 Socket Head Cap Screws M2.5 x 6mm 4
29 Socket Head Cap Screws M2.5 x 12mm 2
30 Socket Head Cap Screws M2.5 x 18mm 1
31 Cone Point Set Screws M3 x 6mm 1
32 Nylon Screws M8 x 14mm 1
33 Nylon Nut M2.5 6
34 Nylon Nut M8 1
35 Threaded Rod M2.5x40mm 2
36 Bearing ø 2.5 ø 6x2.5 2
37 Flanged Bearing ø 5 ø 13x4 2
38 Flanged Bearing ø 7 ø 11x2.5 2
39 Thrust Bearing ø 3 ø 6x2.5 2
40 Bearing ø 3 ø 6x2.5 2
41 Bearing ø 3 ø 7x3 2
42 Carbon Rod 1
43 Double Sided Tape 2
44 Double Sided Tape 1
