Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 4

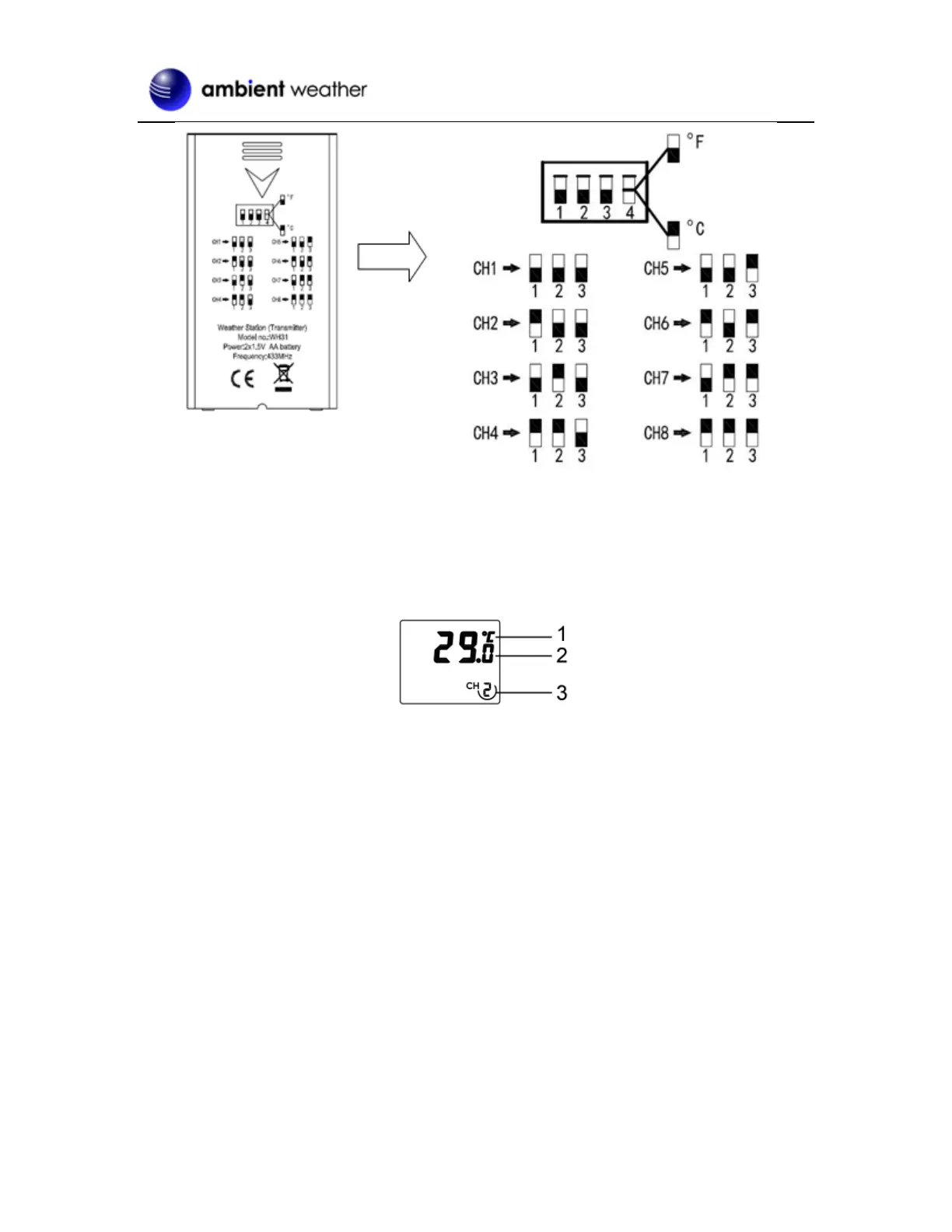

Figure 3
5. Insert two AA batteries.
6. Verify the correct channel number (CH) and temperature units of measure (°F vs. °C) are on
the display, as shown in Figure 4.
Figure 4
(1) temperature units (°F vs. °C)
(2) temperature
(3) channel number
7. Close the battery door.
8. Repeat for the additional remote transmitters, verifying each remote is on a different channel.
5. Sensor Placement
To mount or hang the sensor:
• Use a screw or nail to affix the remote sensor to the wall, as shown in Figure 5 (a) or
• Hang the sensor using a string or zip tie, as shown in Figure 5 (b).
