Section 1 • Introduction
12

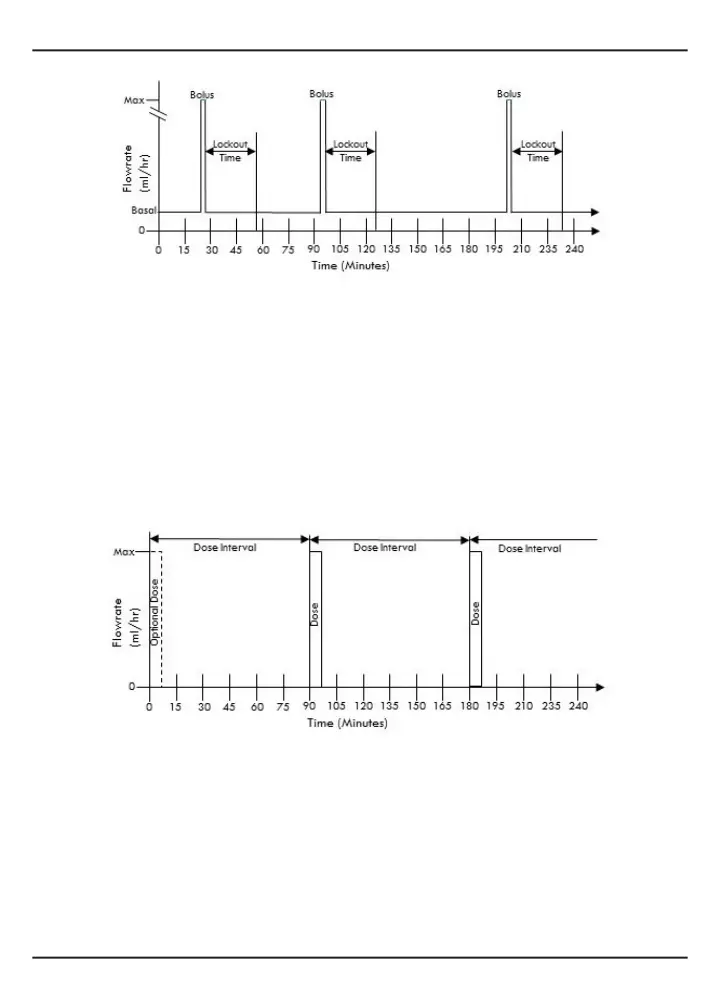

Figure1-3
Basalowrateandbolus(PCAmode)infusionpattern
ForFigure1-3,thesettingsareabasalowrateof10ml/hr,abolusvolumeof10ml,anda
lockout time of 30 minutes
NOTE: Thebasalowrateisdiscontinuedwhileabolusisbeingdeliveredandresumes
once the bolus has been completed.
Figure1-4
Doseonly(PIbmode)infusionpattern
The settings for Figure 1-4 are a dose volume of 25 ml and a dose interval of 90 minutes.
NOTE: An optional dose can be delivered at the start of an infusion by pushing the
BOLUS button within 60 seconds of the start of an infusion.
