NOTE: The total volume is controlled by the IL over the dose interval. This means it is
possible for the bolus and dose to be delivered back-to-back (i.e., the bolus at the
endofonedoseintervalandthedoseatthestartofthenextdoseinterval).
NOTE: Fromthestartofonedosetothestartofthenextdose(doseinterval),theIL
is maintained, but over a time that covers the end of one dose interval and the
startofthenextdoseinterval,thevolumesetfortheILmaybeexceeded.(This
situation is shown in Figure 1-7. The total volume infused from the time the
bolusisstartedattheendoftherstdoseintervaltothetimeattheendofthe
rstbolusintheseconddoseinterval,mayexceedtheIL.SeeFigure1-8below.)
Time
Time
Flowrate (ml/hr)Volume per interval
Lockout Time
Dose interval
Dose interval
Bolus
Lockout
Time
Dose
Partial bolus
Bolus
Dose
Lockout
Time
Lockout
Time
Interval limit
Interval
limit
Total Volume Infused
during Dose Interval is
reset to zero at the
beginning of the dose
interval.
Total Volume Infused
during Dose Interval is
reset to zero at the
beginning of the dose
interval.
Bolus delivery is stopped
because IL has been
reached.

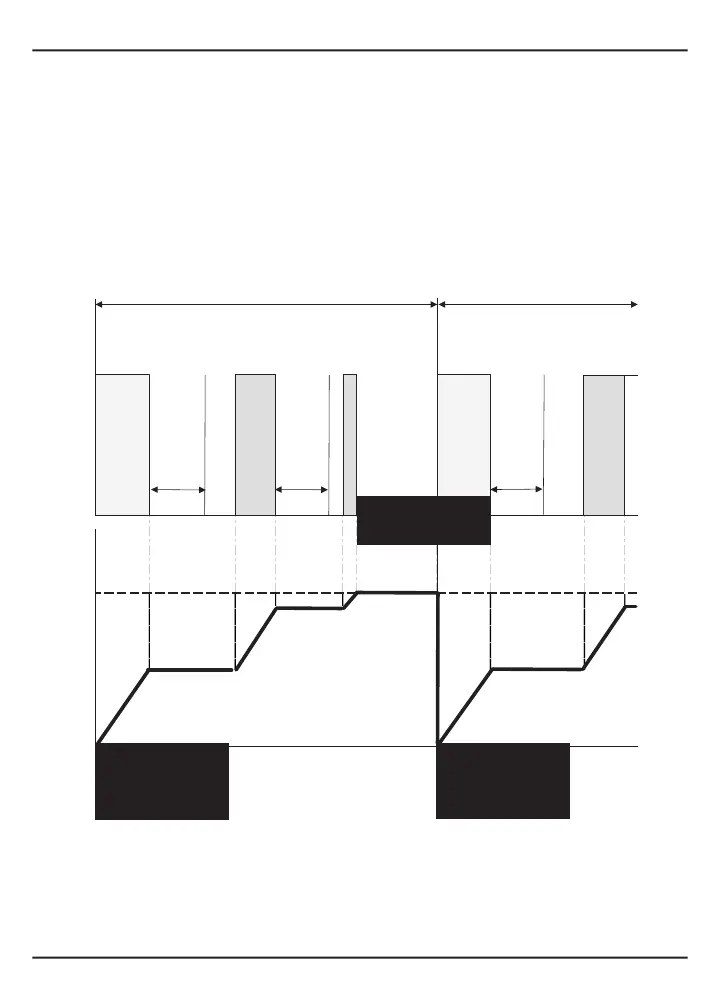

Figure1-8
(Figure1-8onlyappliestothePIB-IL v1.5 pump)
