Installation
Page 3-2
Easy Installation Procedure
The following must be completed before powering on your new system:
3-1. CPU Installation
3-2. Jumper Settings
3-3. System Memory
3-4. Expansion Slots
3-5. Device Connectors
3-1 CPU Installation

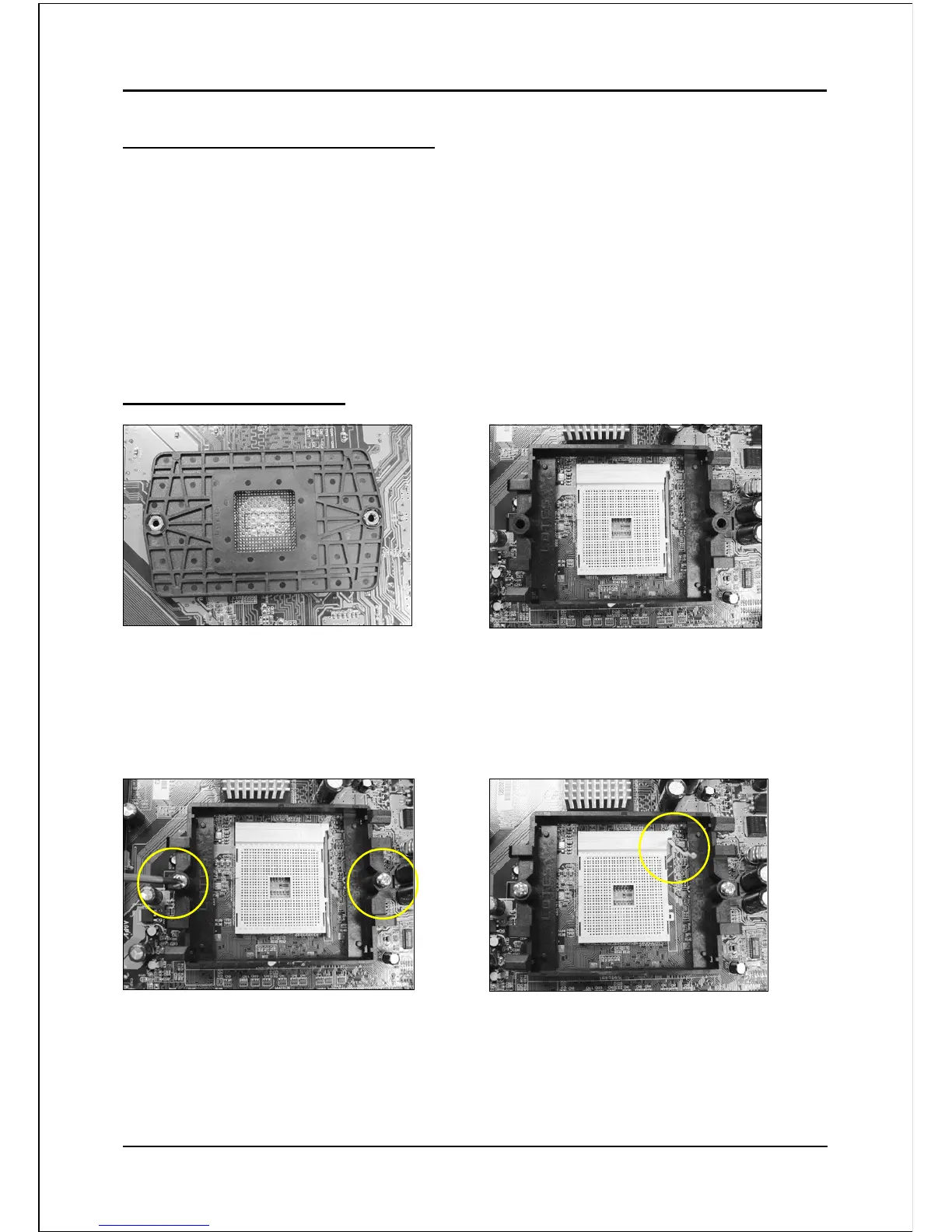

<Figure 1> <Figure 2>
Step 4
Open the socket by raising the actuation
lever.
Step 1
Place the back plate into the two holes
around the CPU area behind the mainboard.
Step 2
Place the retention mechanism on the
mainboard as shown.
Step 3
Screw in the two pan head screws.
<Figure 3>
<Figure 4>
