Ameri-Shred 2 Series - Page 29

29
AMS-1000 Hard Drive Shredder Manual 2016 v.1

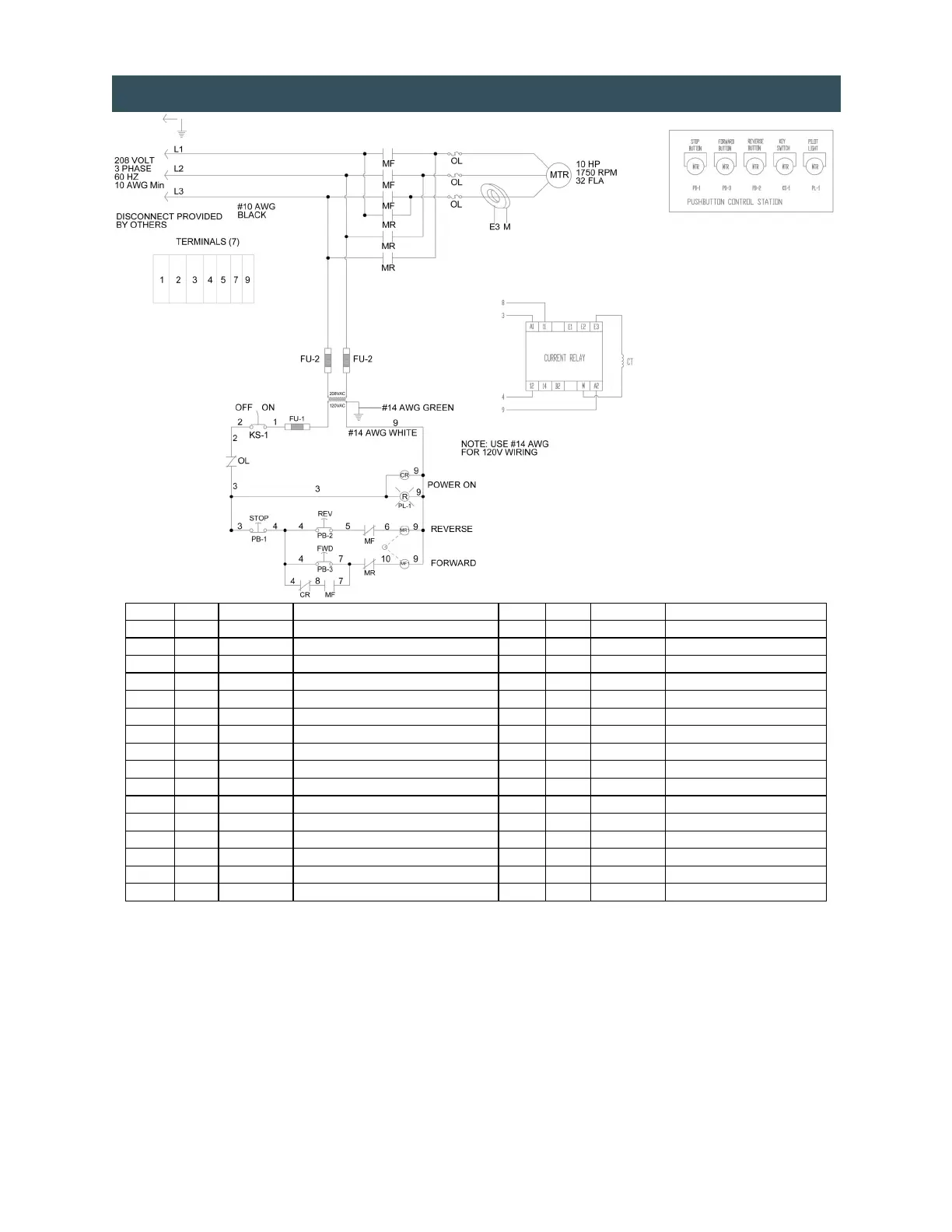

ELECTRICAL DIAGRAM - 10 HP, 208 V 3 PH-60 HZ
ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION
MTR 1 112409-200 GEAR DRIVE 10 HP 208V - 7 111747-J4 TERMINAL BLOCK
TRANS 1 104626 TRANSFORMER-50V A 208/120V - 1 104449 CONTACT BLOCK
FU-1 1 104383 FUSE-1 AMP - 1 104694 CORD GRIP-STRAIN RELIEF
FU-2 2 104400 FUSE-2 AMP - 15 104768 WIRE-10 AWG BLACK
CT 1 104629 CURRENT TRANSFORMER - 12 104778 WIRE-10/SO CORD
OL-1 1 111270 OVERLOAD 23-32 AMPS - 75 104763 WIRE-14 AWG RED
CR 1 104528 CURRENT RELAY - 1 104635 C.T. MTG BRKT
MFR 1 111253 CONTACTOR - 1 110908 LEGEND PLT SHREDDER REV
PB-1 1 104439 PUSHBUTTON-STOP - 1 110907 LEGEND PLT SHREDDER FWD
PB-2 1 104441 PUSHBUTTON-REV - 1 110909 LEGEND PLT-OFF/ON
PB-3 1 104440 PUSHBUTTON-FWD - 1 110911 LEGEND PLT-SHREDDER STOP
KS-1 1 104442 KEYSWITCH - 1 110912 LEGEND PLT-POWER ON
PL-1 1 104443 PILOT LIGHT - 1 104224 ENCLOSURE
- 4 104819 CONDUIT-1/2" - 1 104223 BACKPLATE
- 2 104700 CONDUIT FTG-1/2" 90 DEG - 1 104689 PLUG
- 1 104699 CONDUIT FTG-1/2" STR - 1 104688 RECEPTICLE
