American Dynamics ControlCenter ADCC0200 User Manual

28
ADCC0200 and ADCC0300
Chapter 4: Programming with the ADCC0200/ADCC0300 Keyboards
This chapter provides step-by-step instructions for programming the keyboard.
Programming operations require the entry of the Program Lock passcode.
IMPORTANT NOTE
In RS232 mode, the ADCC0300 keyboard has programming functionality and is able to
set presets, access matrix menus and dome configuration menus. The ADCC0200
keyboard is an operate-only keyboard in RS232 mode.
Entering Program Mode (RS232 only)
To prevent unauthorised programming of the matrix/switching system, a Program Mode
lock is used. To enter Program mode the Program Lock passcode must be correctly
entered.
To enter the Program Lock passcode:
1. Enter 999 using the numeric keys
2. Press the FUNCTION (
) key.
3. At the "Enter Passcode" prompt, use the numeric keys to enter the 4-digit
passcode (1234).
4. Press the ENTER key.

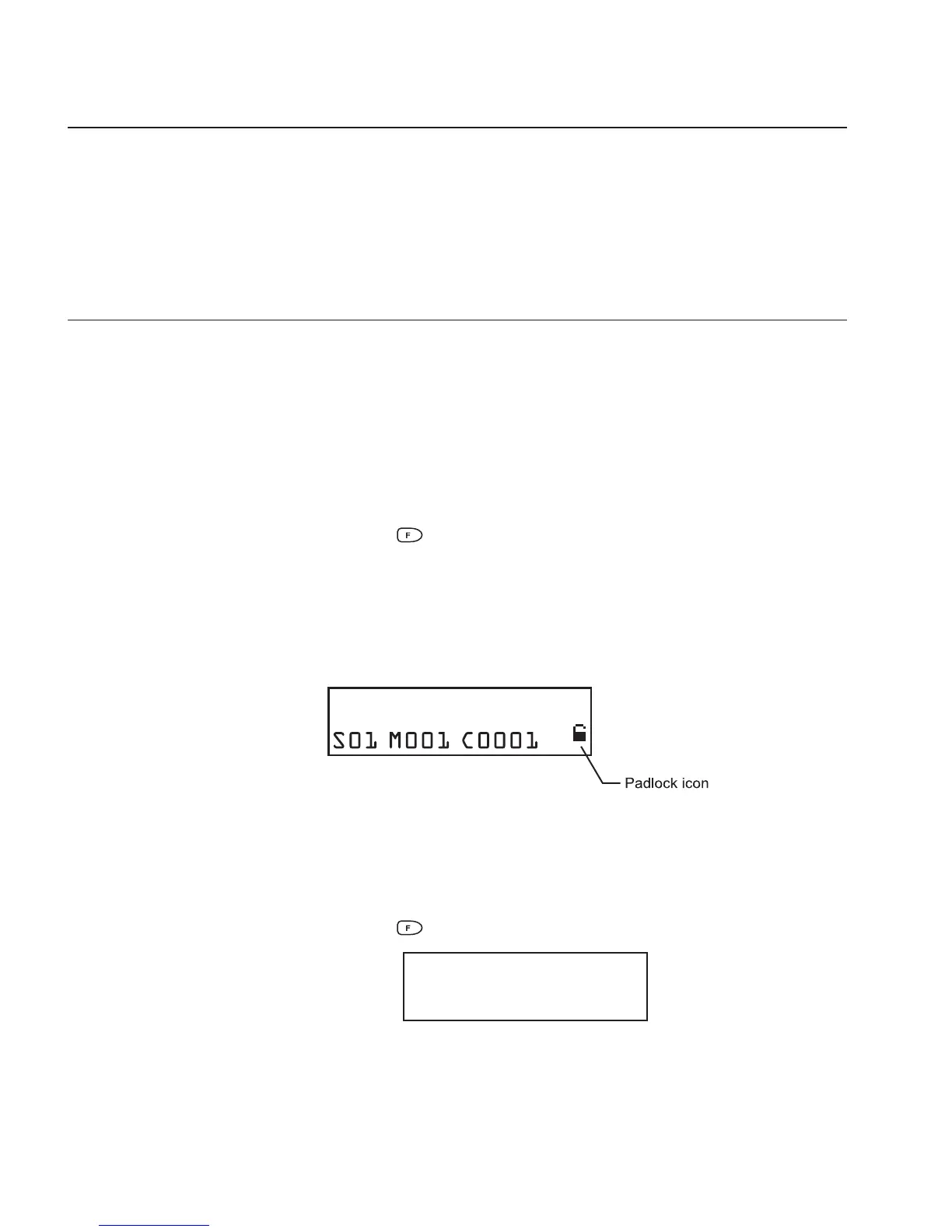

The display will change showing an unlocked padlock icon indicating that Program mode
is available.
Exiting Program Mode (RS232 only)
This function exits Program mode and reinstates the Program Lock passcode protection
schema.
1. Enter 999 using the numeric keys
2. Press the FUNCTION (
) key.
The padlock icon will disappear from the display indicating that Program mode is
unavailable.
S01 M0001 C0001
