ADCC0200 and ADCC0300
ADCC0200 and ADCC0300 Keyboard Overview

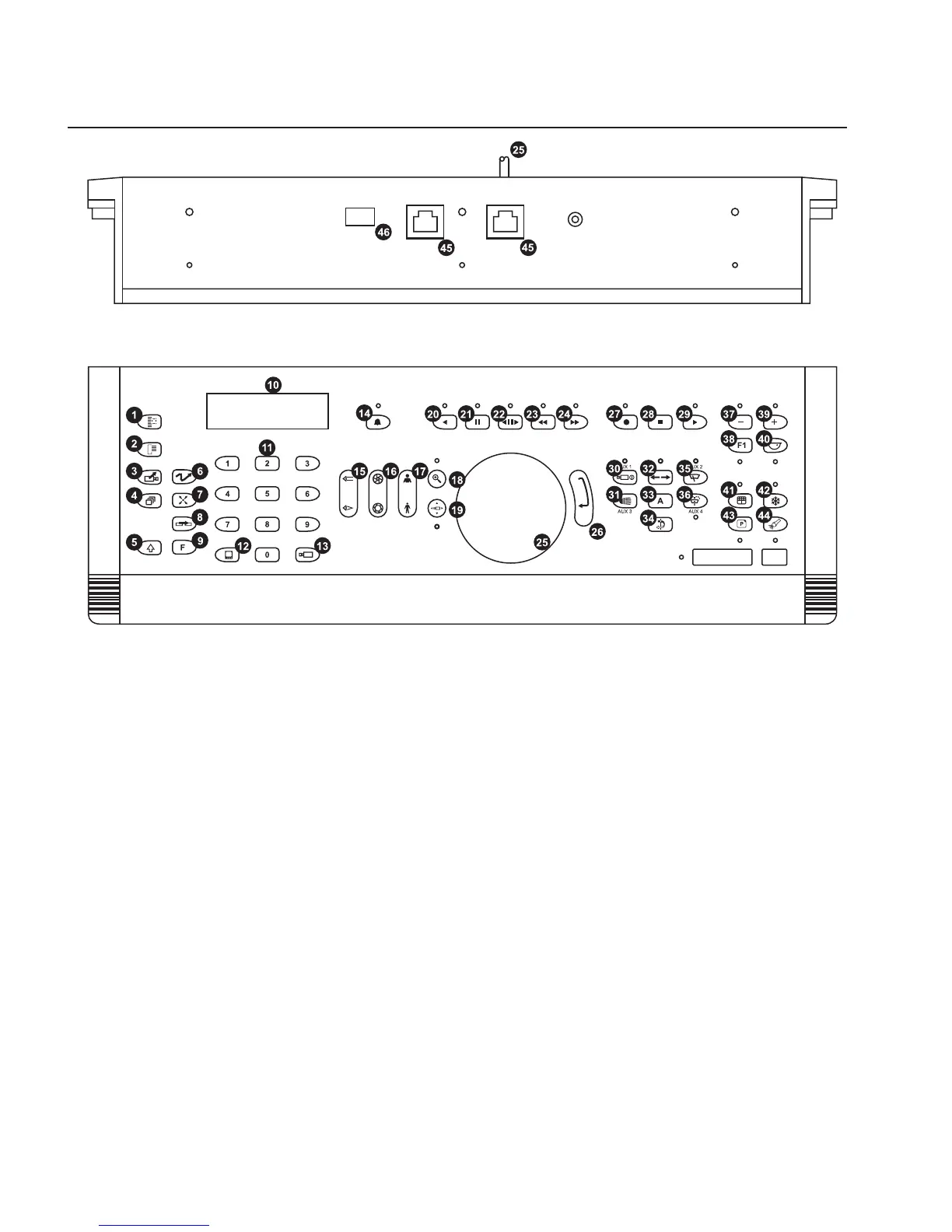

The keyboard consists of the following elements:
1. Clear key - clears any numerical data entered during camera, monitor selection
etc. Used to backstep or exit the menu system.
2. Menu key - used to enter the matrix menu system.
3. View key - used to call views.
4. Tour/Sequence key - used to call a sequence.
5. Shift key - when held down, allows multiple use of other keys.
6. Pattern key - used to call patterns.
7. Preset key - used to call and program presets.
8. Unit select key - calls control of the target matrix to the keyboard.
9. Function key - used in conjunction with other keys to modify their action.
10. LCD Display - displays system information, such as the currently selected
monitor or camera.
