Pressure Setting Instructions:
1. Always set the kick out pressure setting first. Adjust the kick out screw setting to 145 psi
minimum/150 psi maximum.
2. After kick out pressure is set, adjust the kick on screw setting to 115 psi minimum/120 psi
maximum.
3. Cycle compressor to verify correct settings.
4. For questions about this procedure, please contact American Eagle Customer Service at
800-321-3741.

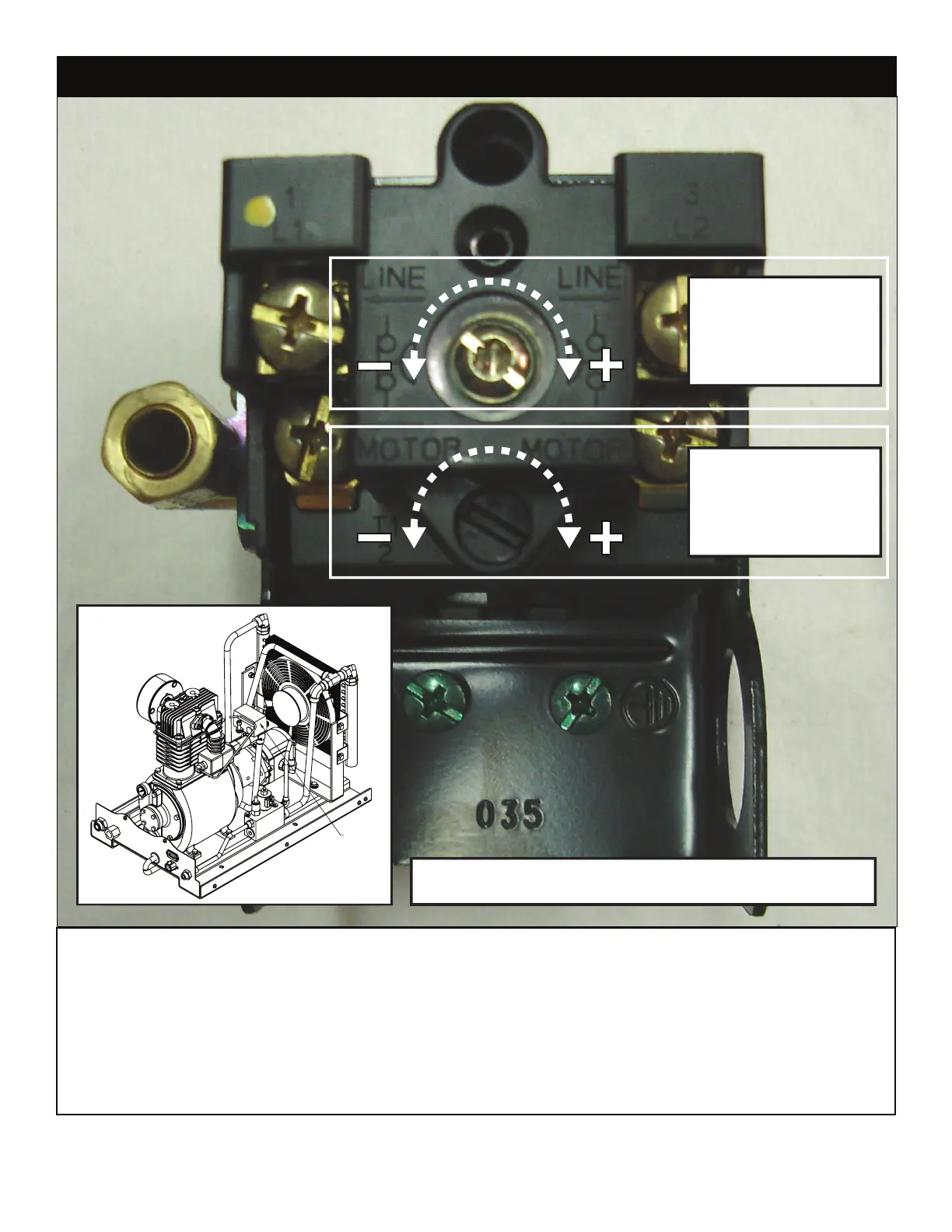

Compressor Pressure Switch
Kick Out (Step 1)
Pressure Setting
Adjustment Screw
(145-150 psi)
Kick On (Step 2)
Pressure Setting
Adjustment Screw
(115-120 psi)
Note: Turning adjustment screws clockwise increases psi settings.
Turning adjustment screws counterclockwise decreased psi settings.
Pressure
Switch
