American Eagle 40P - Chapter 3 - Assembly Drawings; 40 P Case Assembly - PN 100358

American Eagle
®
40P Compressor Manual | Page 11
Chapter 3 - Assembly Drawings

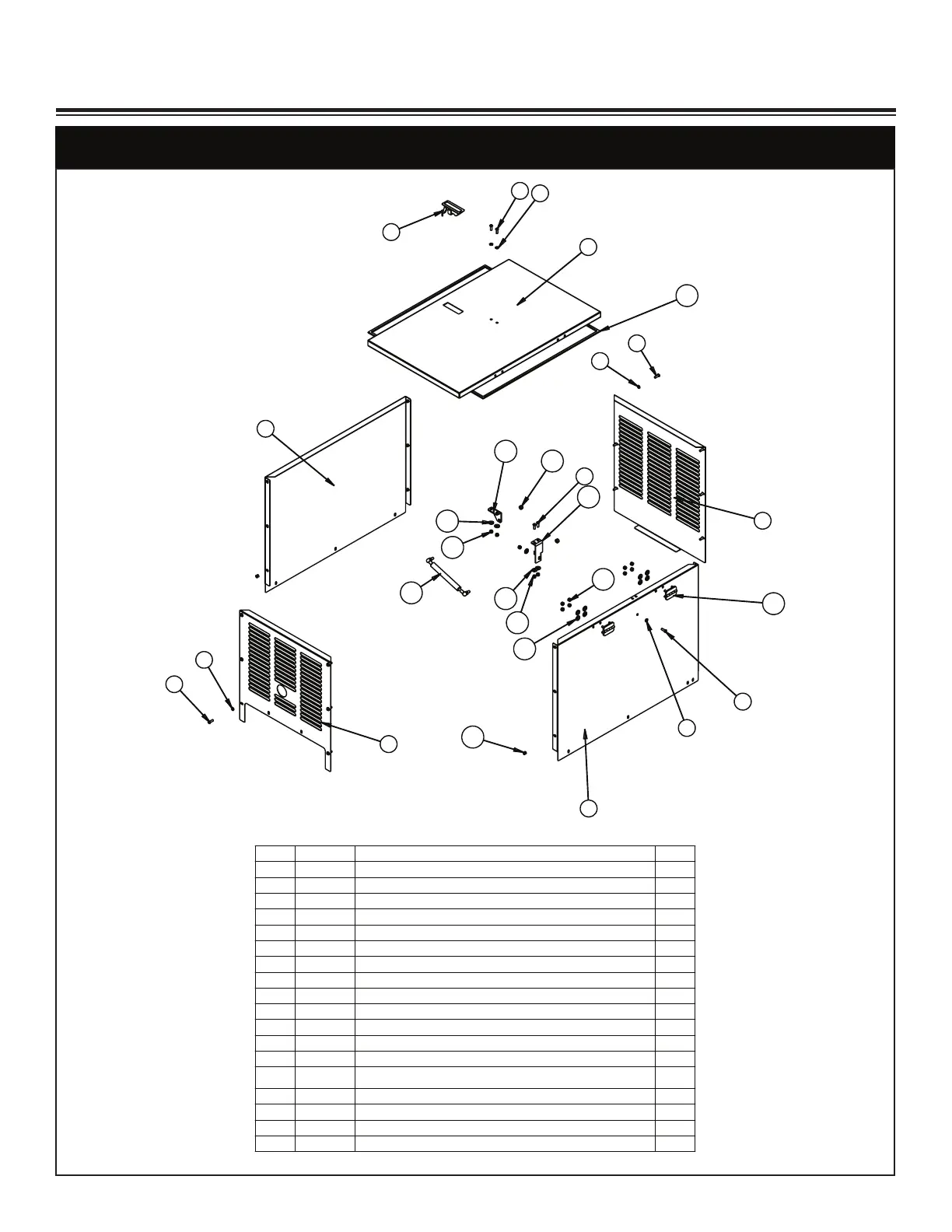

40P Case Assembly - PN 100358
7
5
2
4
8
9
1
10
17
12
11
15
11
12
8
9
16
8
14
3
8
9
18
13
12
11
8
9
ITEM PART DESCRIPTION QTY.
1100361 PANEL FRONT CPRSR 40P SHROUD PC WHITE 1
2100362
PANEL BACK CPRSR 40P SHROUD PC WHITE 1
3100360
PANEL SIDE RH 40P SHROUD PC WHITE 1
4100359
PANEL SIDE LH 40P SHROUD PC WHITE 1
5100363
PANEL LID CPRSR 40P SHROUD PC WHITE 1
670379
HINGE ZINC BLK FLUSH SURFACE MNT DC-50-P8 1
769101
LATCH SWING LEVER FLUSH TRIGGER 0.91-1.81 1
8
C6021 CAP SCR 0.25-20X0.75 BTNHD SS 17
919592
WASHER 0.25 FLAT NYLON 15
10 19589
NUT SERT 0.25-20X0.38 OD 12
11 0333
NUT 0.25-20 HHGR5 NYLOC 13
12
D0917 WASHER 0.25 FLAT SS 13
13 0342
NUT 0.31-18 HHGR5 NYLOC 2
14 73653
BRKT LOWER GASPROP CPRSR SHROUD V2 PC
BLACK
1
15 69103
GAS SPRING 7.50-12.00 30# FORCE 1
16 73654
BRKT LID GASPROP CPRSR SHROUD V2 PC BLACK 1
17 70379
HINGE ZINC BLK FLUSH SURFACE MNT DC-50-P8 1
18 76683
WEATHERSTRIP RIBBED 0.38X0.13X98 1
PN 100358
