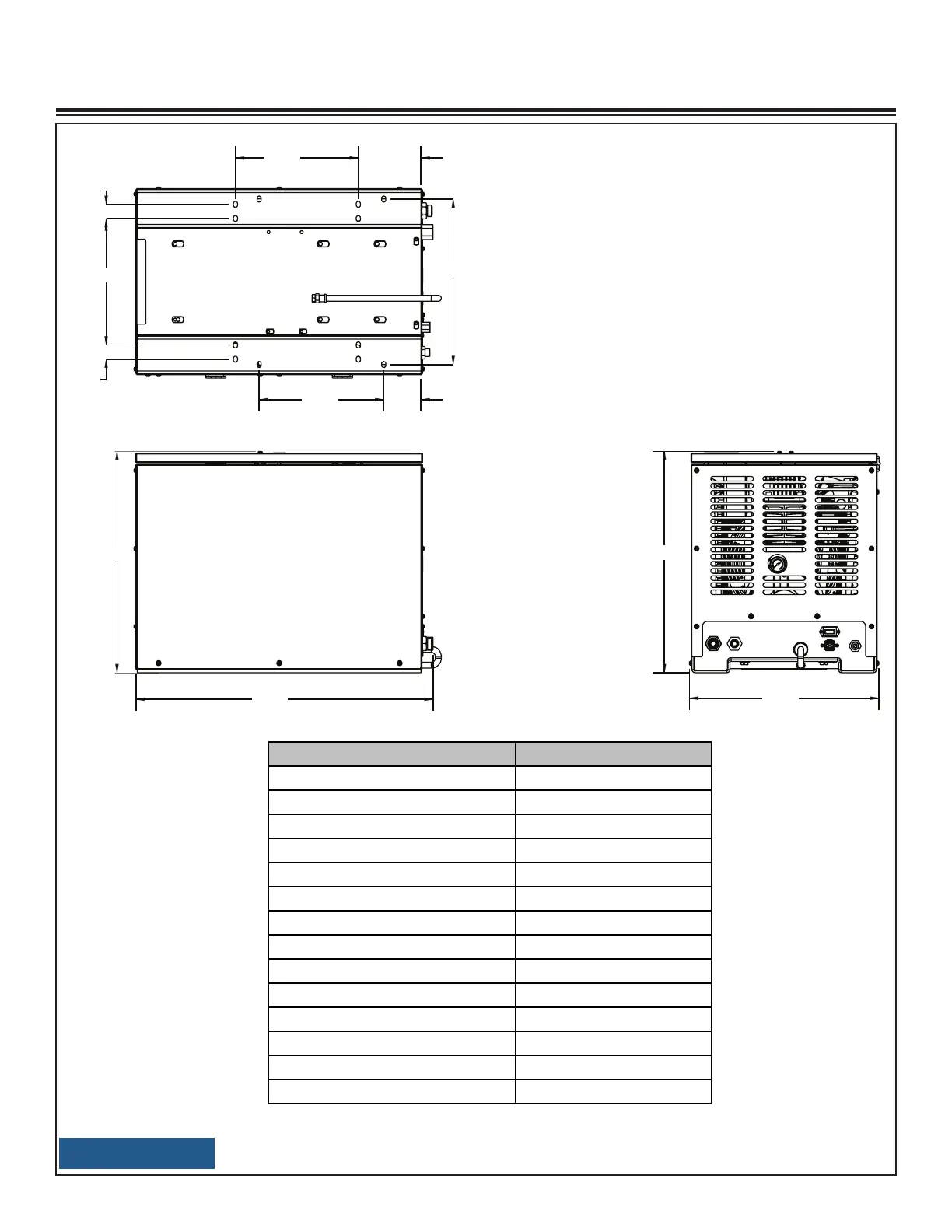

American Eagle 40P - Chapter 1 - Specifications

American Eagle
®
40P Compressor Manual | Page 1
23.40
20.04
31.43
23.40
13.19
13.00 6.63
3.94
17.50
1.50
1.50
13.38
Chapter 1 - Specifications
SPECIFICATIONS 40P
Hydraulic System 12 GPM @ 2200 PSI
Max Compressor Speed 1450 RPM
Hydraulic Operating Pressure 2200 PSI
Hydraulic Relief Pressure 3500 PSI
Max Working Pressure 150 PSI
Air Delivery (At Max Speed) 40 CFM @ 100 PSI
Weight (Hydraulic Driven Asm) 245 lbs.
Dimensions (Length) 31.63”
Dimensions (Width) 19.68”
Dimensions (Height) 23.40”
Electrical 12V DC
Crankcase Oil Capacity 1.5 Quarts
Cooler Fan 1200 CFM, 12 Volt (Pull)
Drive Type Direct Driven
Duty cycle on Piston Compressors is 50:50 over 10 minutes.
NOTICE
