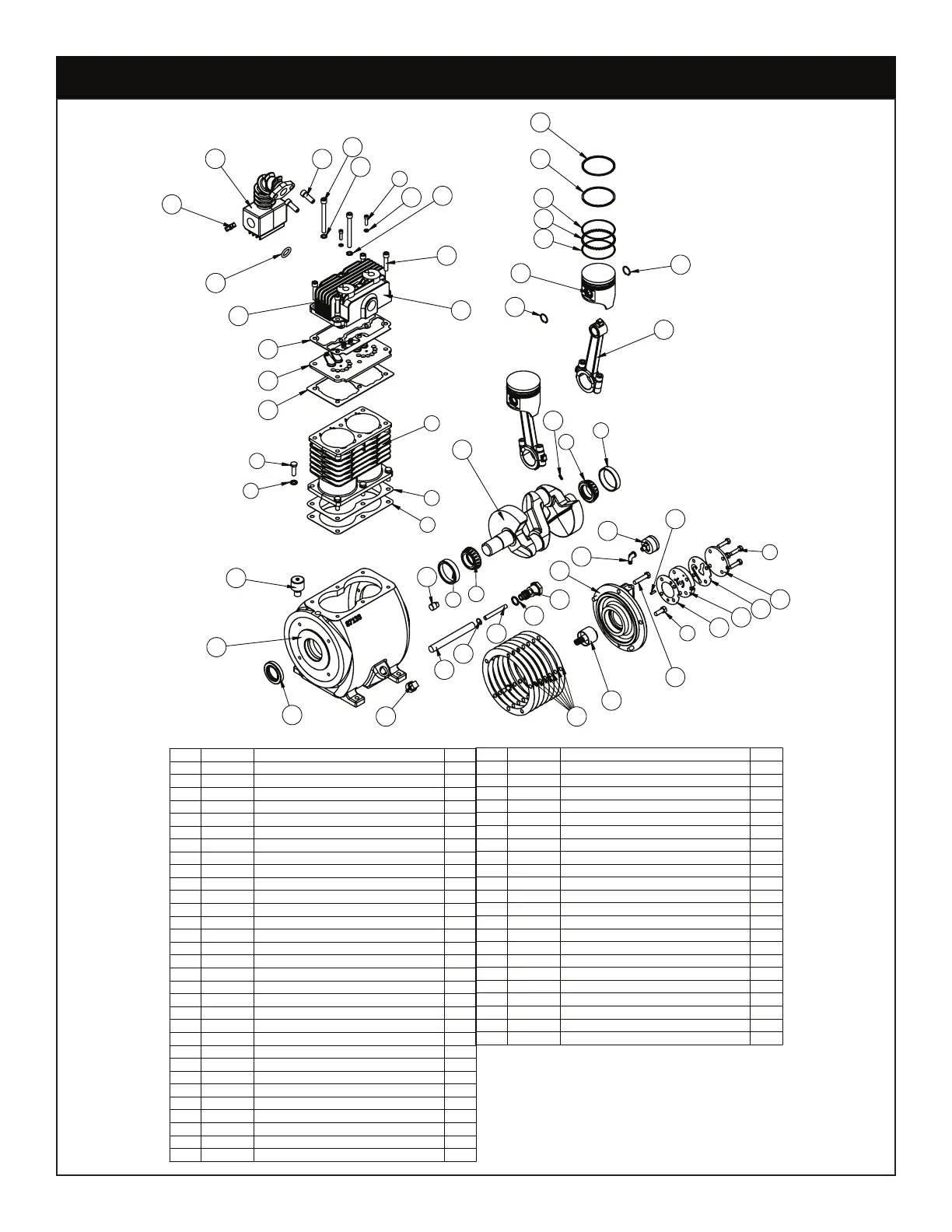

American Eagle 40P - HV30 Compressor Assembly - PN 98537

American Eagle
®
40P Compressor Manual | Page 13
10
43
24
39
53
37
41
40
36
358
9
44
9
8
11
12
2
52
16
28
42
17
33
34
18
3
15
23
23
26
20
26
21
19
6
6
5
1
4
31
13
30
38
32
25
29
45
22
46
49
51
51
48
14
7
27
47
ITEM PART DESCRIPTION QTY.
1 0335 CAP SCR 0.38-16X1.25 HHGR5 6
2 0351
CAP SCR 0.38-16X1.00 HHGR5 4
3 0485
CAP SCR 0.31-18X1.25 HHGR5 4
4 0523
WASHER 0.38 LOCK 6
5 11877
CYLINDER HV60 O/S 1
6 11884
GASKET CYLINDER BASE HV60 2
7 11886
CAP SCR 0.25-28X0.88 SH 2
8 11888
BEARING CUP HV60 2
9 11889
BEARING CONE 2
10 11890
BEARING SEAL HV60 1
11 11891
BEARING CARRIER GASKET .015 HV60 7
12 11893
BEARING CARRIER HV60 1
13 11897
VALVE PLATE ASSEMBLY HV60 1
14 11898
CAP SCR 0.38-16X3.75 SH HEAD BOLT 2
15 11907
CONNECTING ROD HV60 O/S 2
16 20451
FTG 2-2 MP-FP STREET ELBOW 90 BRASS 1
17 22209
ROLL PIN 0.19X.63 1
18 22626
PORT PLATE COVER 1
19 23042
RING COMPRESSION UPPER HV 60 2
20 23043
RING OIL HV 60 FLEX DIVIDER 2
21 23044
RING COMPRESSION LOWER HV 60
2
22 26076 PISTON W/PIN HV60 ENGROSS2
23 23481
SNAP RING PISTON HV60 4
24 23483
BREATHER CPRSR .38NPT BF6 1
25 26032
WASHER 0.255 ID BRASS 2
26 36369
RING OIL HV 60 RING RAIL 4
27 5817
ROLL PIN 0.19X.50 1
28 5819
GAUGE OIL PSI 1.5 1
29 5828
WASHER LONG HD BOLT (BRASS) 1
30 9979
GASKET CYL HEAD (VALVE PLATE) HV-60 1
31 9980
GASKET CYL HEAD HV-60 1
ITEM PART DESCRIPTION
QTY.
32 C0040 WASHER HD BOLT STL 1
33
C0052 PORT PLATE MACHINED 1
34
C0054 PORT PLATE COVER GASKET (SMALL) 1
35
C0055 OIL INTAKE PLUG 1
36
C0057 O'RING 2-115 FOR OIL PICKUP TUBE
1
37
C0058
OIL INTAKE FILTER SCREEN 1
38
C1586 CAP SCR 0.38-16X1.75 SH HEAD BOLT 4
39
C4841 PLUG 0.38 NPT SQ HD BLK 1
40
C5416 TUBE OIL INTAKE .38ODX3.00 1
41
C6273 SNAP RING PISTON PIN N5000-62 1
42
C6275 PORT PLATE GASKET
1
43 87133
CRANKCASE HV30 1
44 98536
CRANKSHAFT HV30 1
45 27107
OIL PUMP ASM CPRSR 1
46 99262
MANIFOLD HV30 DISCHARGE O/S 1
47
C0291 O'RING-214 VITON 9009-75 1
48
D1292 CAP SCR 0.44-14X1.25 SHGR5 BLK 2
49 5797
DRAIN COCK-V480 1
50
C2220
FTG 12-4 MP-FP REDUCER BUSHING 1
51 11896
HEAD A/C HV60 W/THRD 1
52
C0944 CAP SCR 0.38-16X1.75 HHGR5 1
53 20327
PLUG 0.75 NPT SQ HD BRASS 1
PN 98537
HV30 Compressor Assembly - PN 98537
