User Interface | 4-13
Data Capture
The data capture feature allows the user to collect and save analyzer data displayed on the
Monitor screen to an Excel compatible ile.
On
Press the ON button to start data collection. Specify the ile name in the “Save As” dialog and
press “Save” button. The ile format is “.csv” which is Excel compatible. All data displayed
on the Monitor page will be stored in the speciied ile.
Off Data collection will terminate and the ile will close when
the Off button is pressed or another conigurator
tab is selected.
Rate The preferred data collection rate is “0.5” minutes and is
set as the default. A record is created every 30 seconds.
The collection rate can be increased to one minute or more.

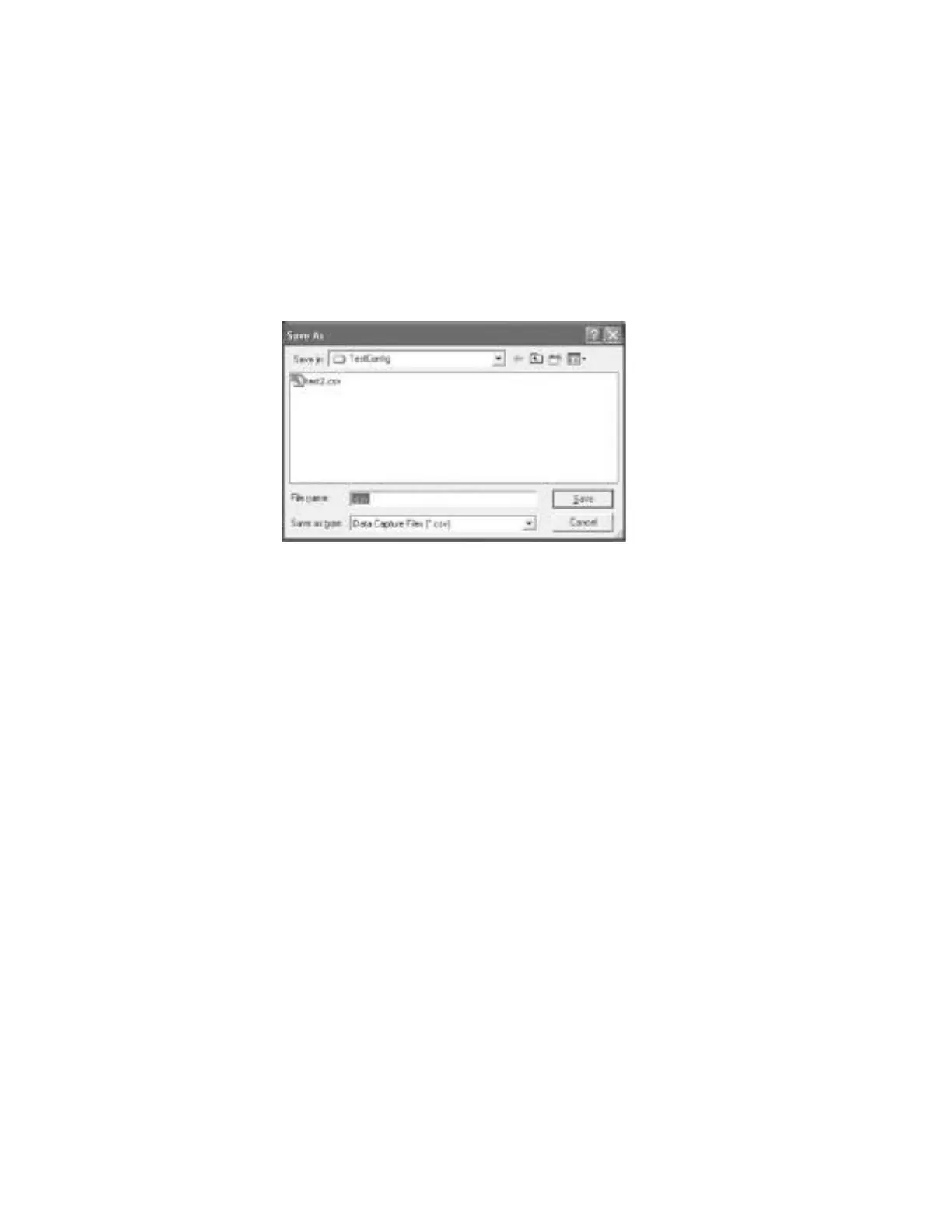

Figure 4-10a.
Monitor tab-save as.
