Functions  5
nVision Operation Manual
Lower Module Screen
Dual Module Screen Data Point Screen (Single Sensor)
Upper Module Screen
Selectable Units (via Setup button)
(Enable, disable, or create units)
Vertical Scale:
Applied versus
full-scale pressure
(Pressure Module Only)
Sensor Reading biased towards applicable
module location in the chassis
Indicates current data point
Current readingDate & Time Stamp
High / Low:
Peak always measured
at 10 readings per
second
Filter:
Average of most recent
20 readings


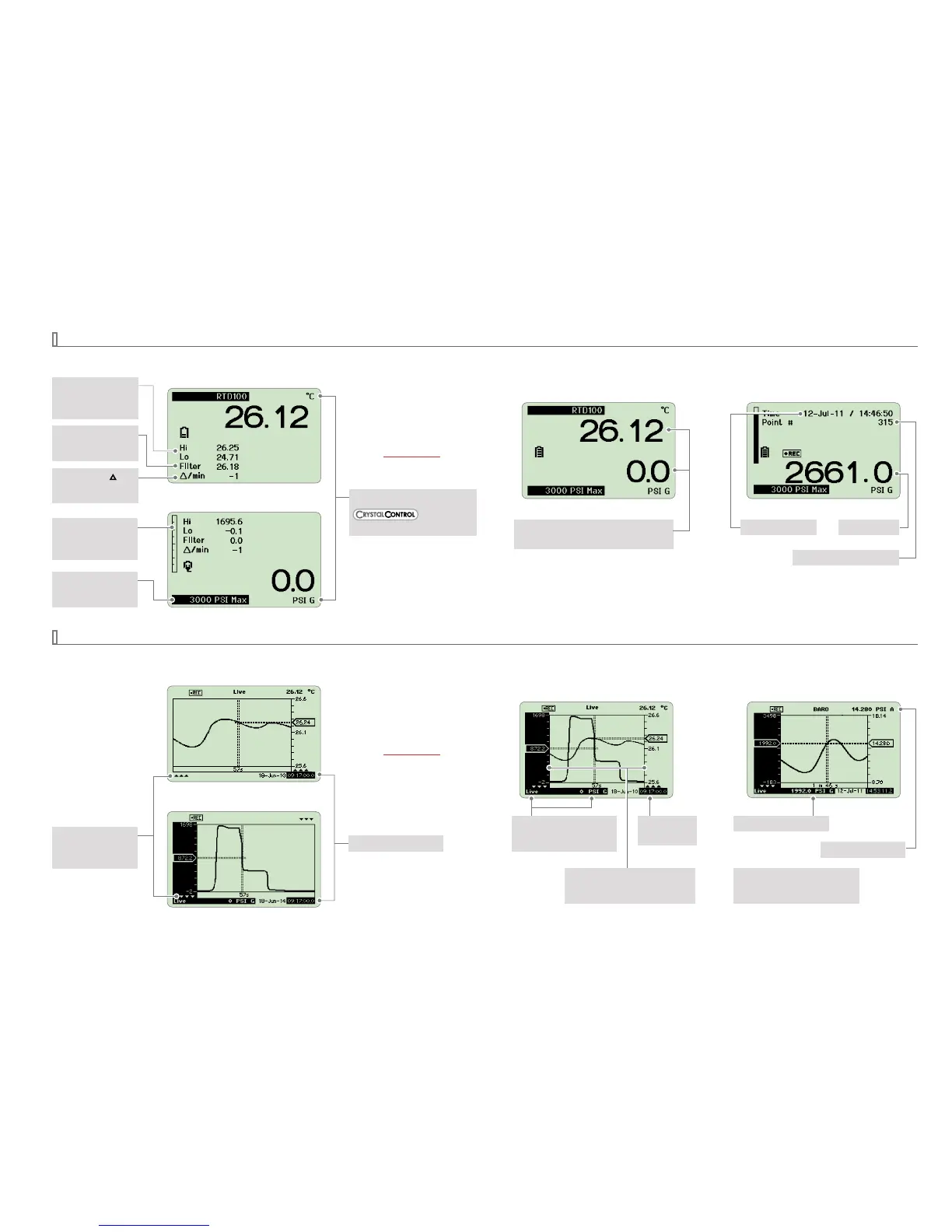

NUMERICAL DISPLAY OVERVIEW
Numerical Upper and Lower Module screens
Numerical Dual Mode Screen
(Both Sensors)
Data Point Counter Screen
Note:
To change the displayed units
on any Numer
ical Display,
see the Units section.
Note:
To change the displayed units
on any Gr
aphical Display,
see the Units section.
BARO module reading
Lower Module Screen
Dual Module Screen
Upper Module Screen
For safety, live readings are
displayed regardless of
cursor location or zoom level
Date and Time Stamping
Date and Time
Stamping

GRAPHICAL DISPLAY OVERVIEW
Graphical Upper and Lower Module screens
Graphical Dual Mode Screen
(Both Sensors)
Graphical BARO Screen
(Both Sensors)
Dual Module Screen
Displays barometric pressure from
BARO module vs. output from one
pressure module (Upper or Lower)
Left y-axis indicates the scale of the
lower module. Right y-axis indicates
the scale of the upper module
Pressure module reading
Maximum Working
Pressure:
(Pressure Module Only)
/min:
Rate of change per
minute
On all graphical screens
the triple-arrow icon
indicates the module
currently displayed
