AMETEK CTs NetWave

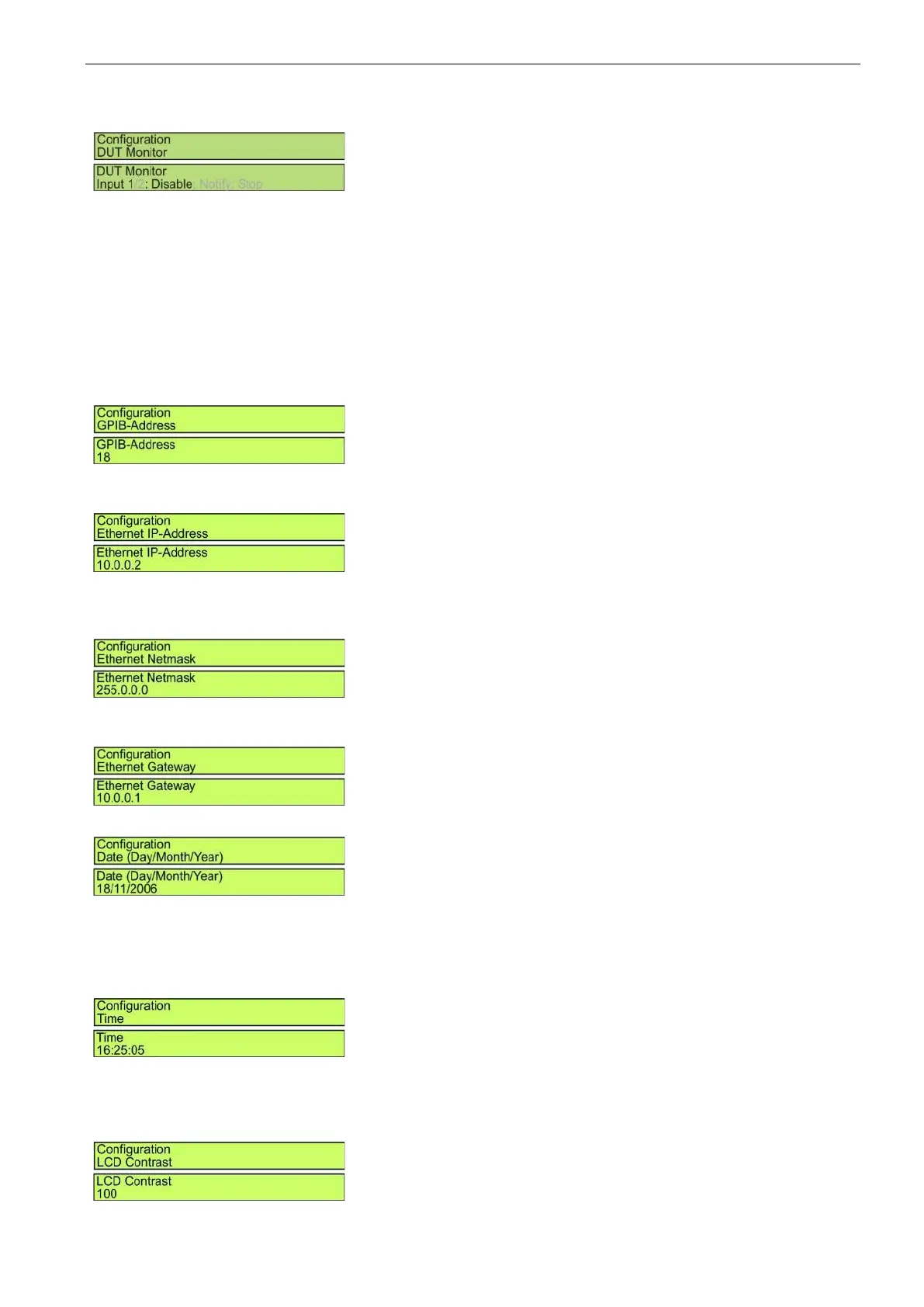

5.2.15. DUT Monitor
Open collector input for event control during a test or record.
The DUT Monitor 1 and DUT Monitor 2 controls the behavior during a
test or record. The following settings are offered for the two DUT monitor
inputs
Default : Disabled
Settings DUT Monitor ( open collector input)
- Disable: Input has no function
- Notify: Message will be written on a file
- Break: Wave breaks, mainline is played during the break.
Continue according the user decision
- Stop: Wave stops the test
5.2.16. GPIB Address
GPIB Address for using the NetWave with the software
Standard : IEEE 488
Address : 1...30
Default : 10 Default address for software
5.2.17. Ethernet IP- Address
Set Ethernet IP Address of the target NetWave
Selectable range : 0.0.0.0 to 255.255.255.255
Default Address : 10.0.0.3
5.2.18. Ethernet Netmask
Set Ethernet Netmask of the target NetWave
Selectable range : 0.0.0.0 to 255.255.255.255
Default Netmask : 255.0.0.0
5.2.19. Ethernet Gateway
Set Ethernet Gateway of the target NetWave
Selectable range : 0.0.0.0 to 255.255.255.255
Default Gateway : 10.0.0.1
5.2.20. Date
Day : 1...31
Month : 1...12
Year : 2000...2200
Note: When pressing Setup for exit the Date setup, the display
returns after few seconds delay to the Configuration display
5.2.21. Time
The time is used for marking the stored files.
Format : HH.MM:SS ( H : Hour M : Minute S :Second )
Mode : 24 hours / day
Note: When pressing Setup for exit the Time setup, the display returns after
few seconds delay to the Configuration display
5.2.22. LCD Contrast
The LCD Contrast is selectable between the values 70 to 100.
