8.5. Fuses
8.5.1. Fuses NetWave 7

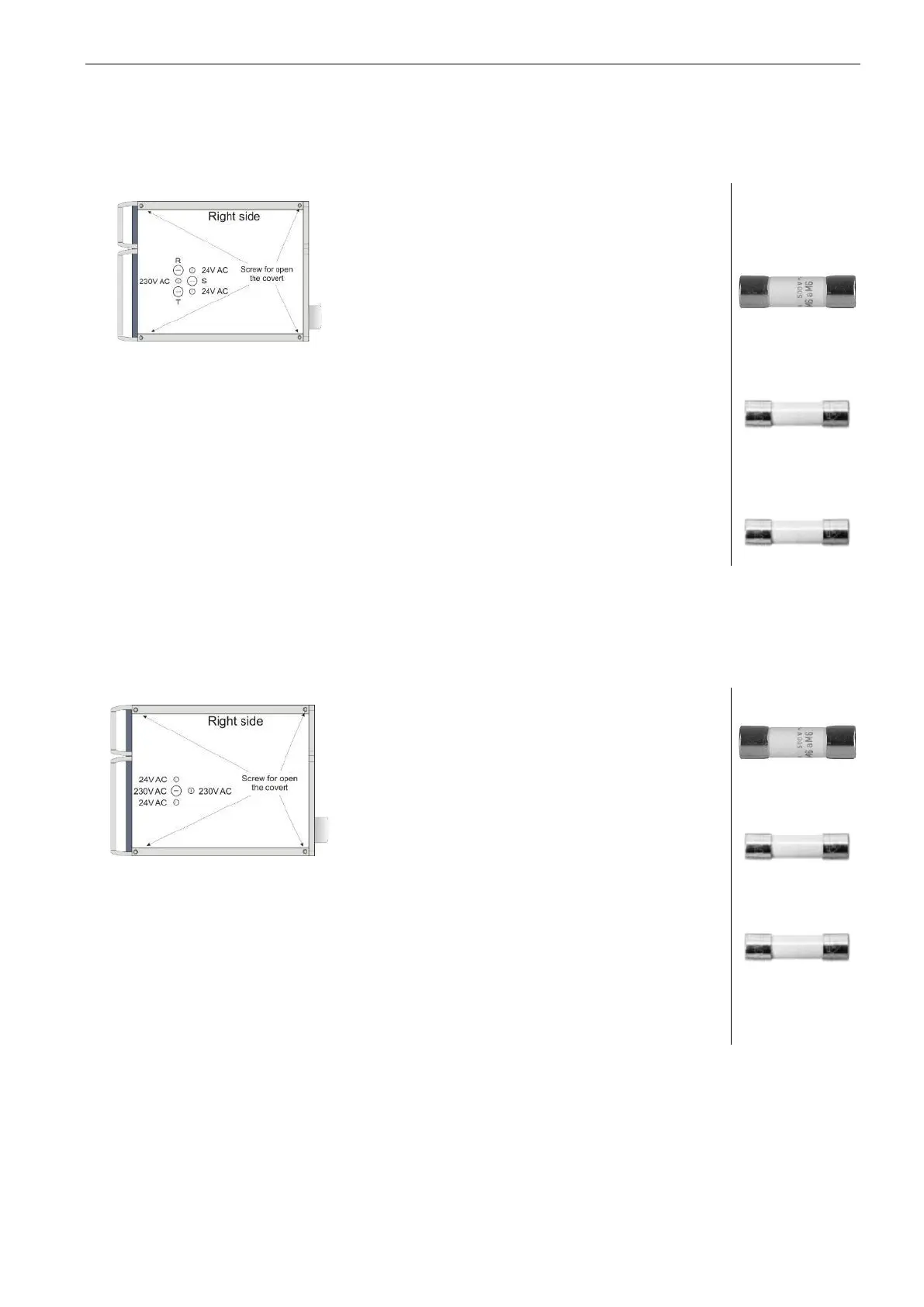

The fuses are located at the right side of the NetWave behind the cover. To replace the user must open the
four screws at the right-side cover.
Fuses for power unit R, S, T
Rated voltage: 500 V
Rated current : 25 A slow blow
Dimension : 10 x 38 mm
Breaking capacity: >120 kA
Fuses for 230Vac power
Rated voltage: 250 V
Rated current : 3.15 A slow blow
Dimension : 5 x 20 mm
Fuses for 24Vac power
Rated voltage: 250 V
Rated current : 1 A slow blow
Dimension : 5 x 20 mm
8.5.2. Fuses NetWave 3 / 5
The fuses are located at the right side of the NetWave behind the cover. For replace the user must open the
four screws at the right-side cover.
Fuses for 230Vac 1-phase power unit
Rated voltage: 500 V
Rated current : 32 A slow blow
Dimension : 10 x 38 mm
Breaking capacity: >120 kA
Fuses for 230Vac power
Rated voltage: 250 V
Rated current : 3.15 A slow blow
Dimension : 5 x 20 mm
Fuses for 24Vac power
Rated voltage: 250 V
Rated current : 1 A slow blow
Dimension : 5 x 20 mm
