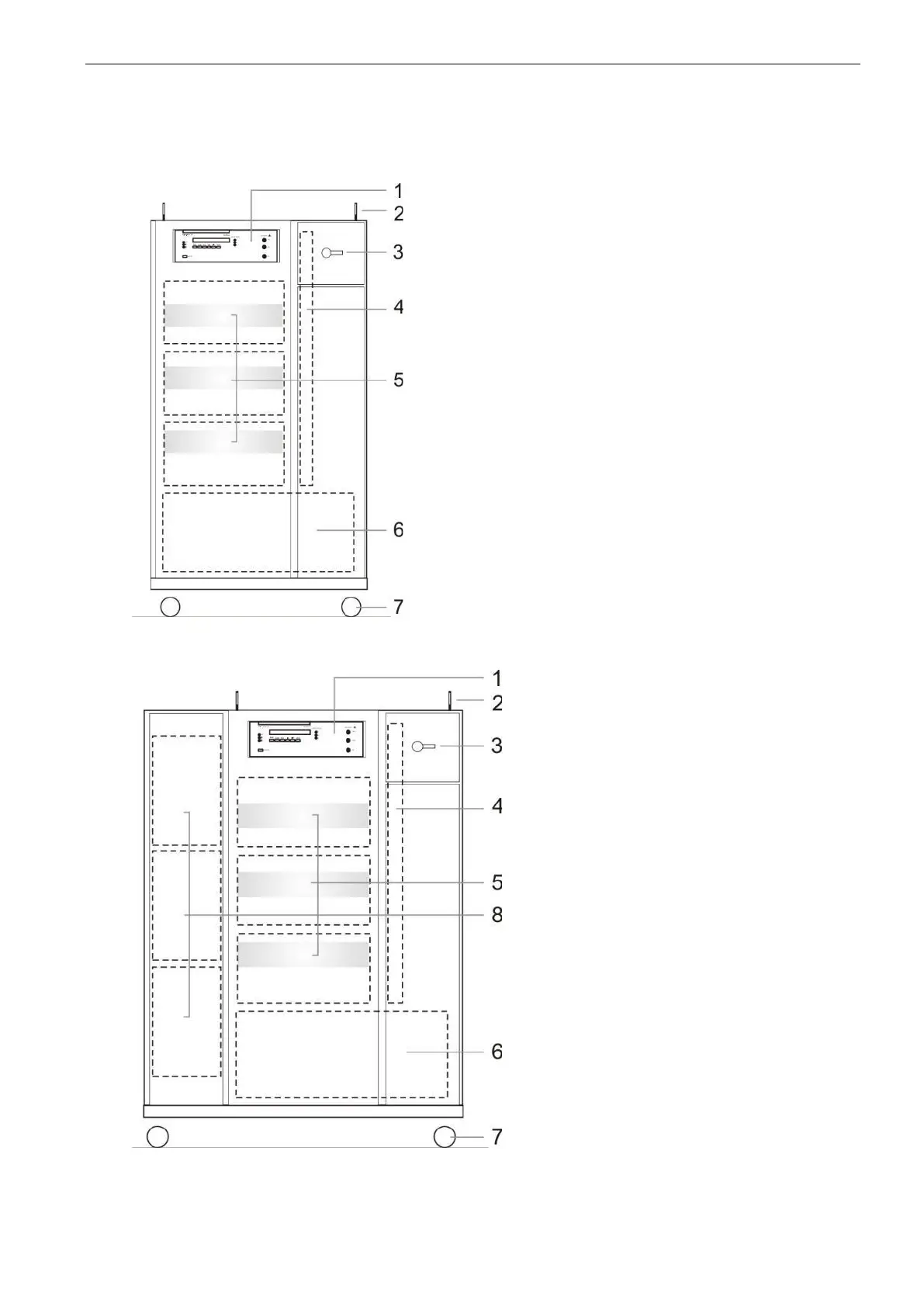

4.3.1. Front view NetWave 20.x / 30.x / 60.x / 67.x
Standard NetWave
1 NetWave controller
2 Load hook
3 Main Switch
4 Control relays and fuses
5 Phase generator
6 Input transformer
7 Coasting
NetWave with Opt-3 Recovery
1 NetWave controller
2 Load hook
3 Main Switch
4 Control relays and fuses
5 Phase generator
6 Input transformer
7 Coasting
8 Recovery module (option)
Note: For the function of the NetWave controller see chapter Front view
4.3.2. Front view NetWave 90.x / 108.x
