3.4. Scope of supply Opt-3 MultiSource
• Emergency switch with red button and 3 connectors
• 3 Framebus terminators
• Control cable Framebus, 4m
• Control cable Framebus, 8m
• 2 Signal cable BNC, 4m
• Calibration certificate
• Connection Box MS
3.5. Scope of supply Opt-3 CascadeSource
• Emergency switch with red button and 2 connectors
• 2 Framebus terminators
• Control cable Framebus, 4m
• Signal cable BNC, 4m, BNC T-adapter
• Calibration certificate
• Connection Box CS
3.6. Put in service
3.6.1. Unpacking
Inspect the unit for any possible shipping damage immediately upon receipt. If damage is evident, notify the
carrier. DO NOT return an instrument to the factory without prior approval. Do not destroy the packing container
until the unit has been inspected for damage in shipment.
If there is an external damage, make information to your representative.
For open the wooden box user needs the following tools
Lifter: Forklift, or crane with suitable capacity
Screw driver: Torx size T15 or T20
Other useful items: Pinch bar, hammer, crane ropes

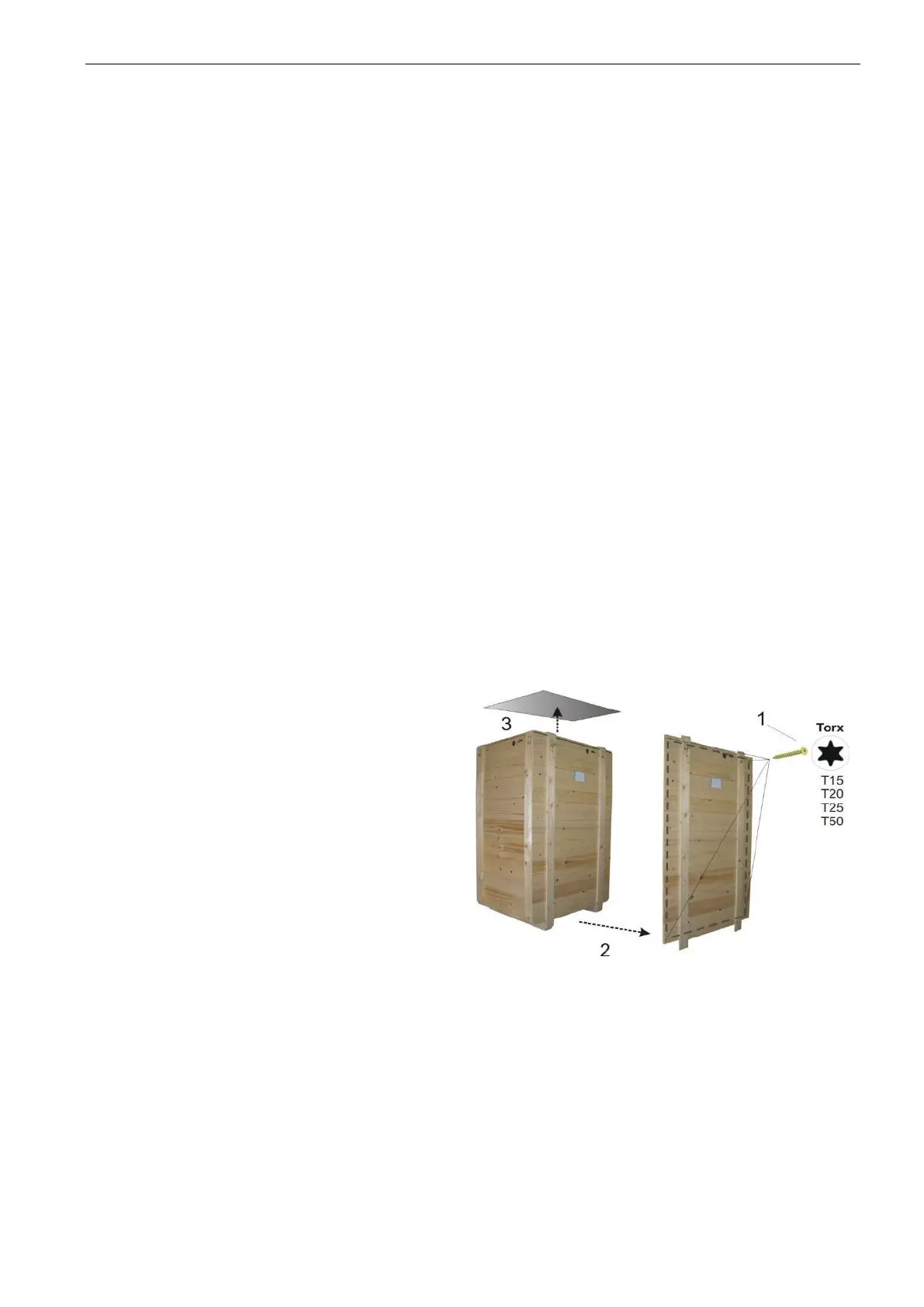

Open the wooden box:
The box has one side that is closed with screws. All
other sides are fixed with nails.
1. Unlock all torx screws on the front side. The
screws are on top, bottom, left and right side of
the front.
2. Remove the front side for open the box.
3. If necessary, unlock the screws on top and
remove the top cover.
