Ametek NetWave 20 User Manual

AMETEK CTs NetWave
6.3. Changing Operating Mode Master / Slave
This feature is available for Firmware V7.03.00 and later only.
The NetWave must be in Standalone Mode to be able to change modes.
When ordered as Cascade Source or Multi Source system the NetWaves are preset by the factory to Master
and Slave operating modes. In case one of the two options is installed in a later stage (retrofit), it is necessary to
set change the operating mode. This is also the case when one of the NetWaves (Master, Slave 1 or Slave 2) is
replaced by another NetWave.

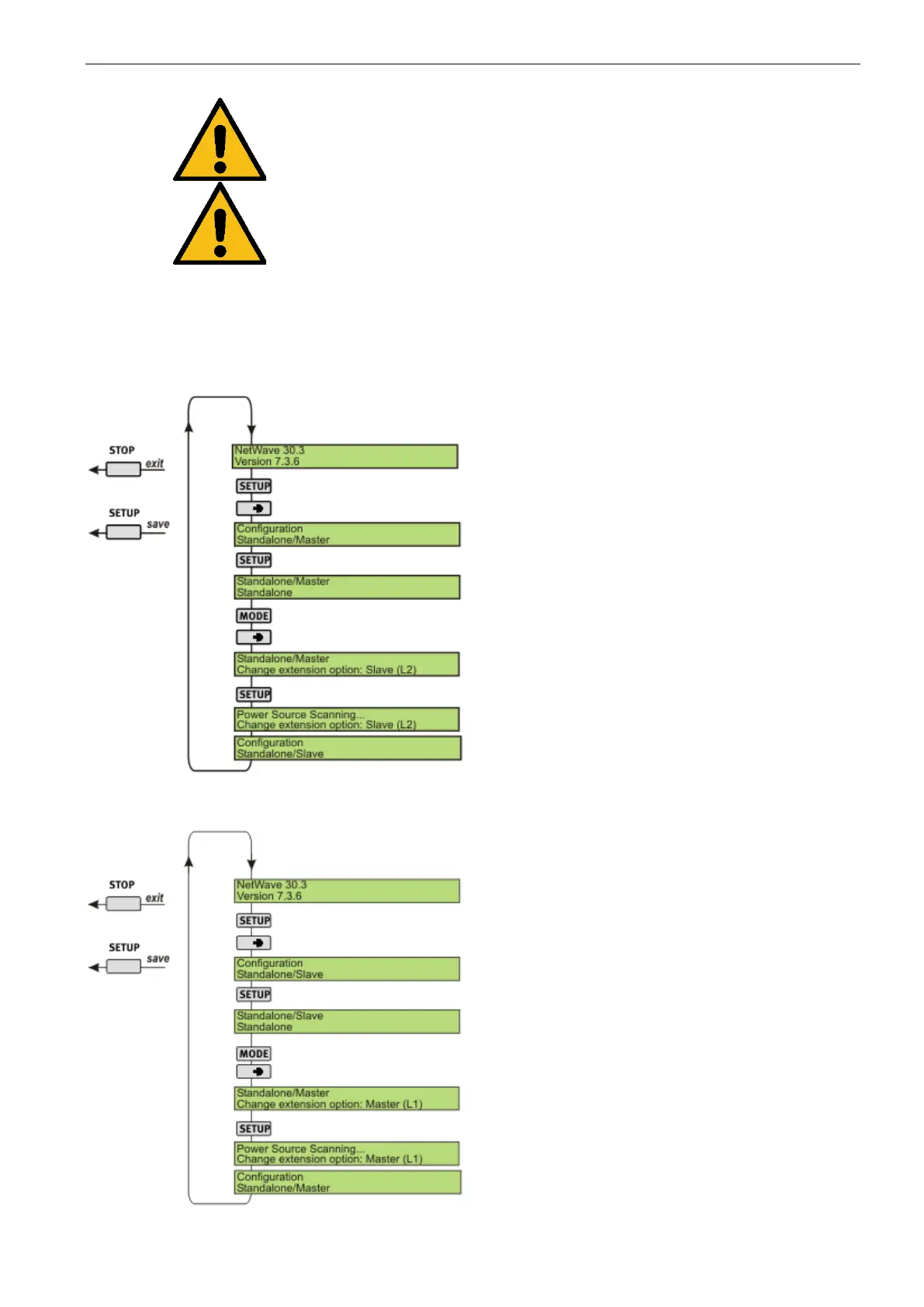

Changing operating mode from Master to Slave
Changing operating mode from Slave to Master

Ametek NetWave 20 Specifications

General

Brand	Ametek
Model	NetWave 20
Category	Industrial Equipment
Language	English
