5. Front Panel Operation
5.1. Power on
After switching on, NetWave needs approx. 35s for booting. During this
time the display is blank. NetWave is ready when the display shows
NetWave and the current version.
The NetWave is operated by an easy menu control system. Five function
keys are available to select parameters and functions.
5.2. Menu structure
There are two buttons for navigate through the menus.
MODE button: Navigate through the menu WaveGenerator, Measurement U/I and Wave
Manager.
SETUP button : Configuration of the device setting
5.2.1. Mode Menu

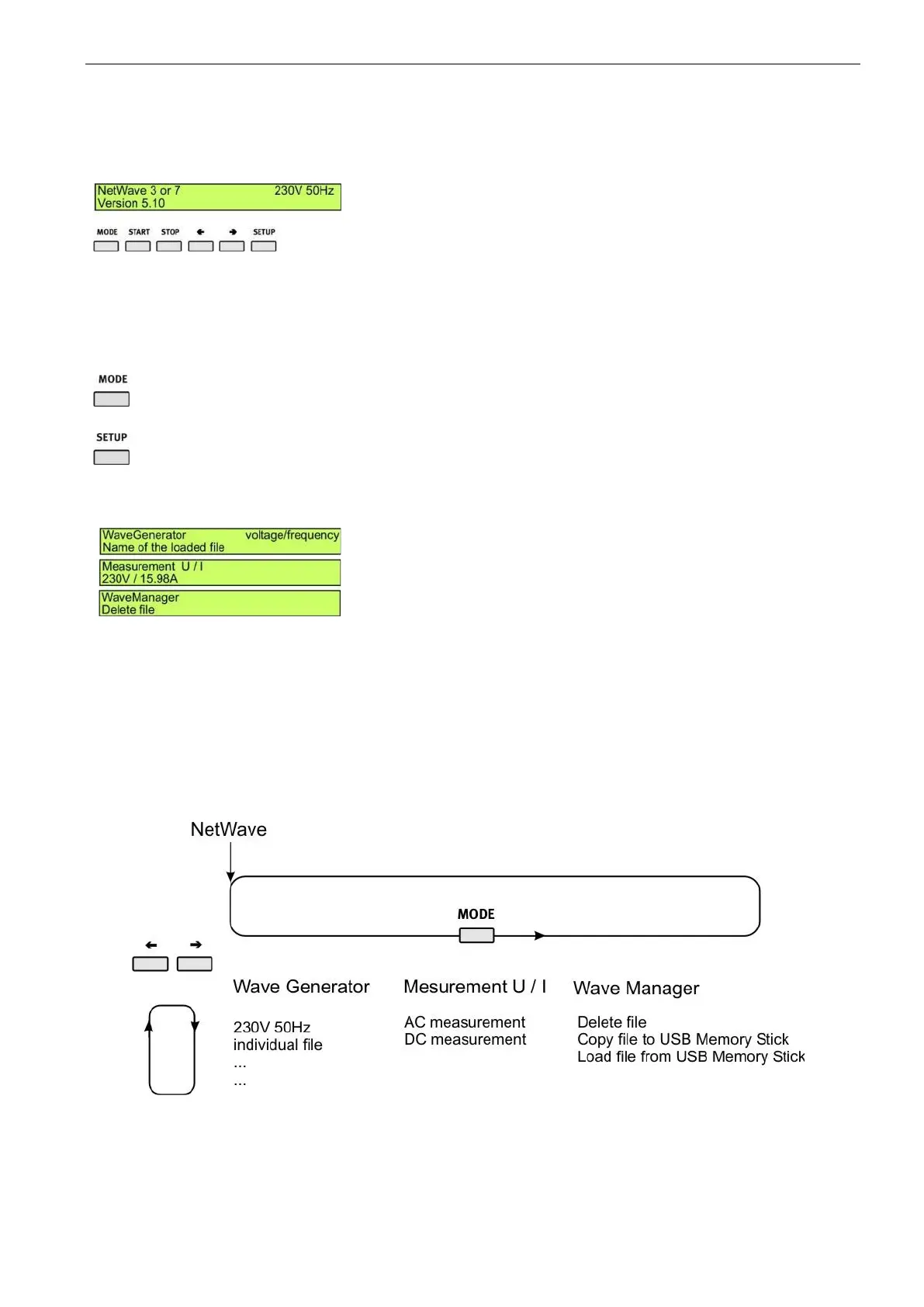

Figure 4.1 shows the handling of the Mode menu which rotates cyclic by pressing the Mode button.
1
st
line : Menu or submenu title
2
nd
line : Actual Menu Function
Wave Generator
Selection and run of the stored waves.
Generation of all kind of voltage profiles with the software.
Measurement U / I
Actual voltage and current delivered from the NetWave.
The displayed measurement is from the internal measurement module from the AC/DC source.
Wave Manager
File exchange to/ from a memory stick for data transfer to an external computer.
Delete of waveforms
To Next Page
